Connector Identification
Connector Identification

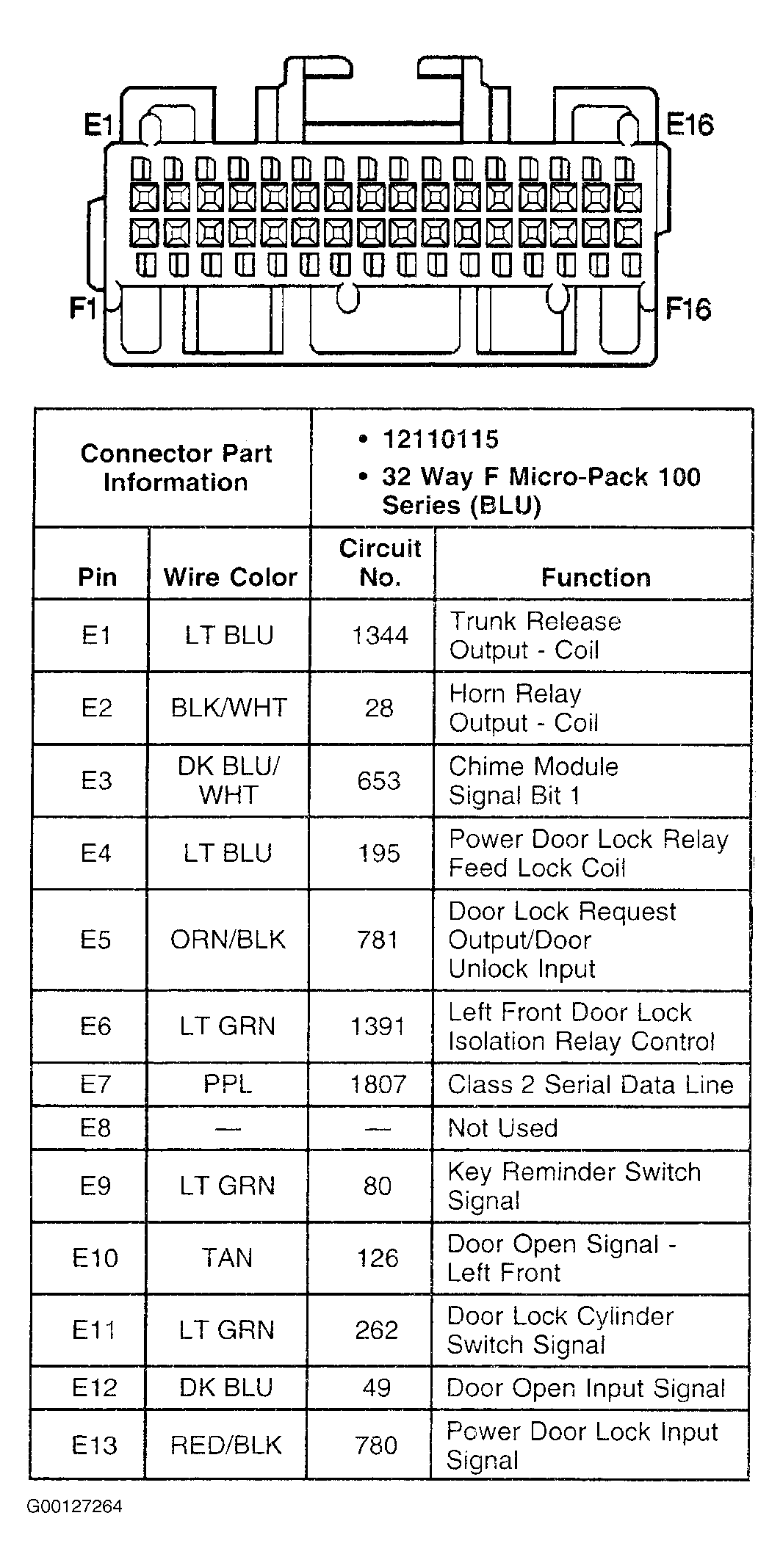

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
