Removal & Installation (Front)

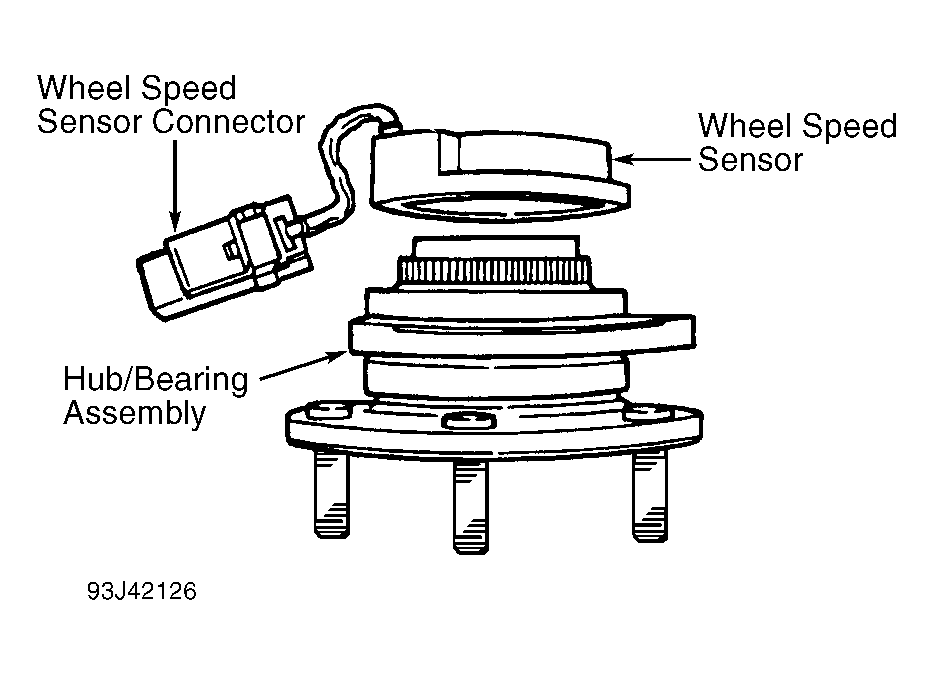

Disconnect wheel speed sensor electrical connector. Remove front hub and bearing assembly. See appropriate article in SUSPENSION. Using Split Plate Puller (J-22912-01), gently pry wheel speed sensor slinger and speed sensor off of hub and bearing assembly. See Fig 1. To install, reverse removal procedure. Apply Loctite No. 620 to outer diameter groove of bearing hub.
NOTE:
DO NOT allow debris to enter bearing when sensor is removed. DO NOT add lubricant to bearing through sensor housing opening. Bearing is lubricated for life of vehicle. DO NOT clean grease from toothed sensor ring. Grease does not affect sensor operation.
