Connector Terminal Identification
>>
Sensing Diagnostic Module (SDM)
>>
ACHIEVA, Grand Am & Skylark
ACHIEVA, Grand Am & Skylark

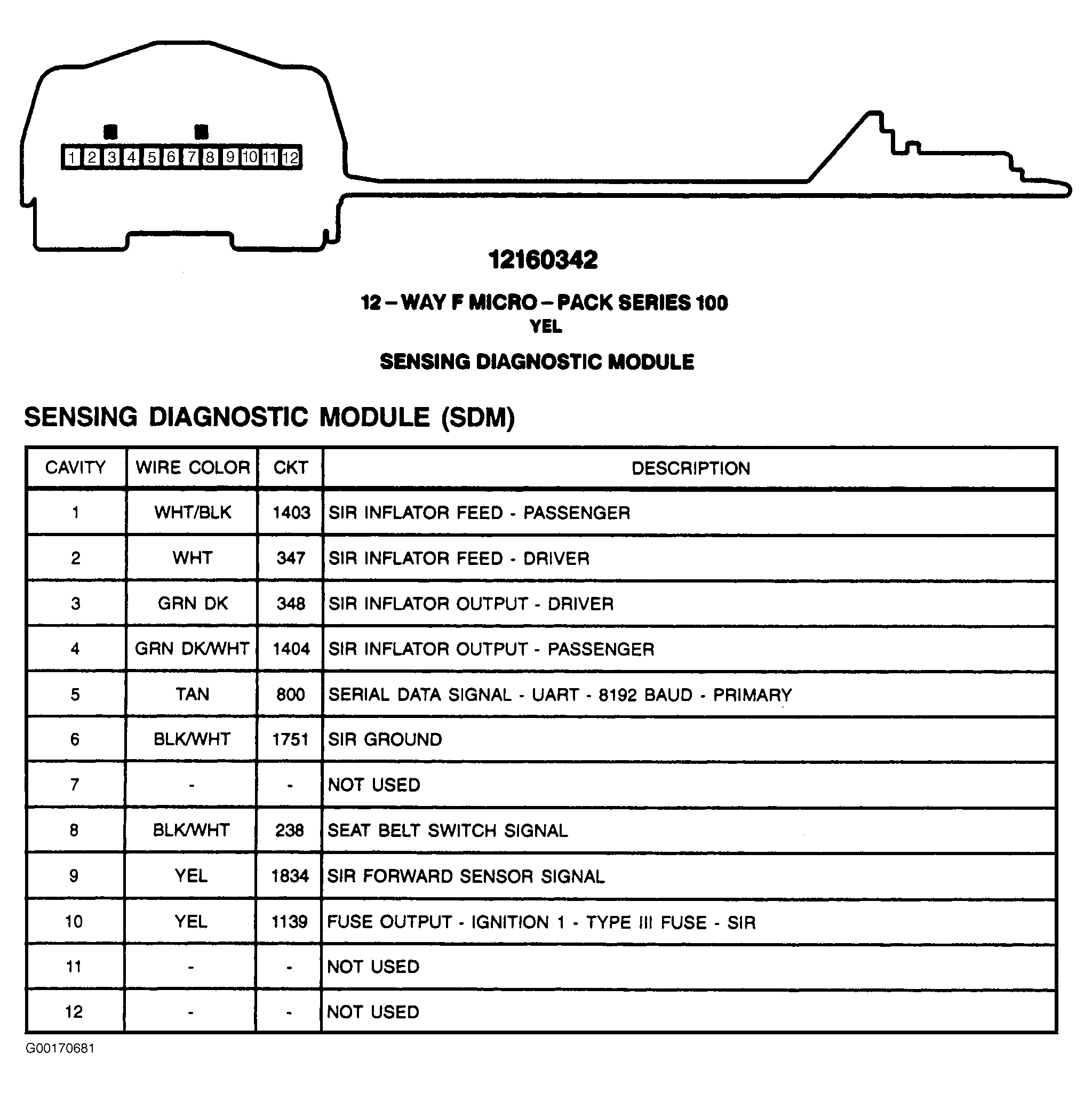

Fig 1: Sensing Diagnostic Module (SDM) Achieva, Grand Am & Skylark - 12-Pin Connector (Yellow)
Courtesy of GENERAL MOTORS CORP.
