Cutlass & MALIBU

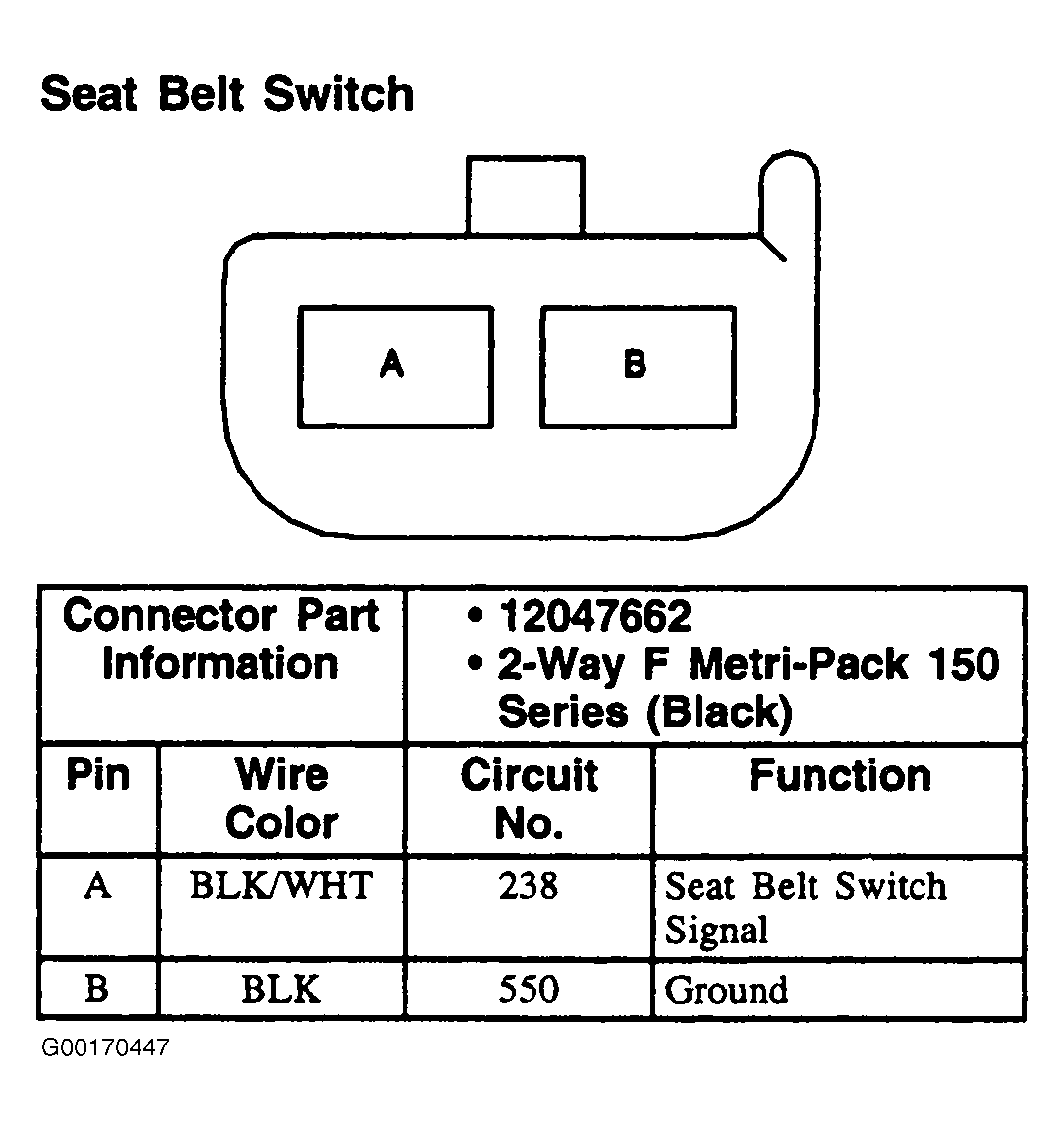

Fig 1: Seat Belt Switch (Cutlass & Malibu) - 2-Pin Connector (Black)

G00170447

Courtesy of GENERAL MOTORS CORP.
