Power Window Switch Connector C1 (LF, RF & RR)

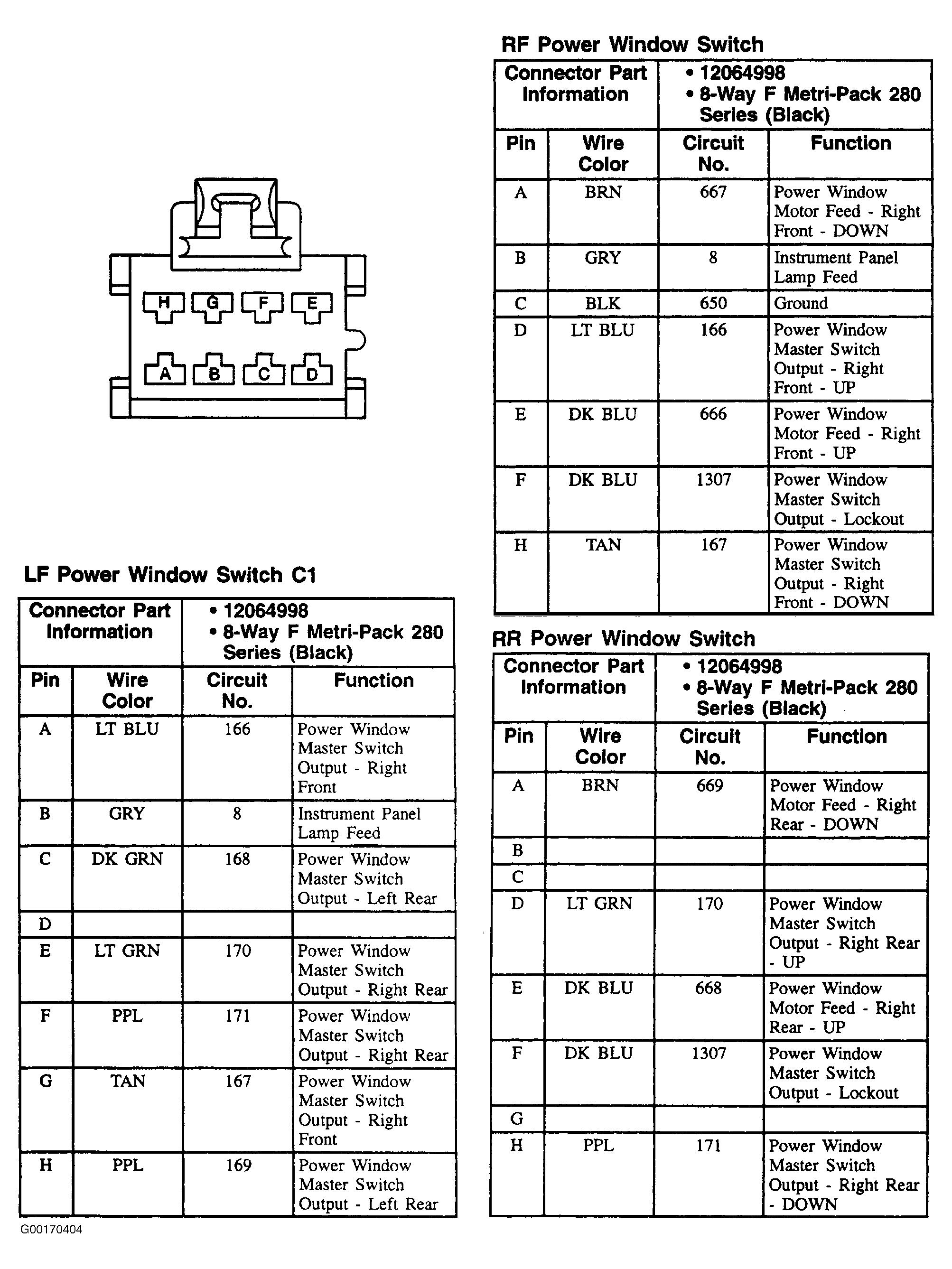

Fig 1: Power Window Switch Connector C1 (LF, RF & RR - Cutlass & Malibu) - 8-Pin Connector (Black)

G00170404

Courtesy of GENERAL MOTORS CORP.
