Fog Lamp Switch (Cutlass)

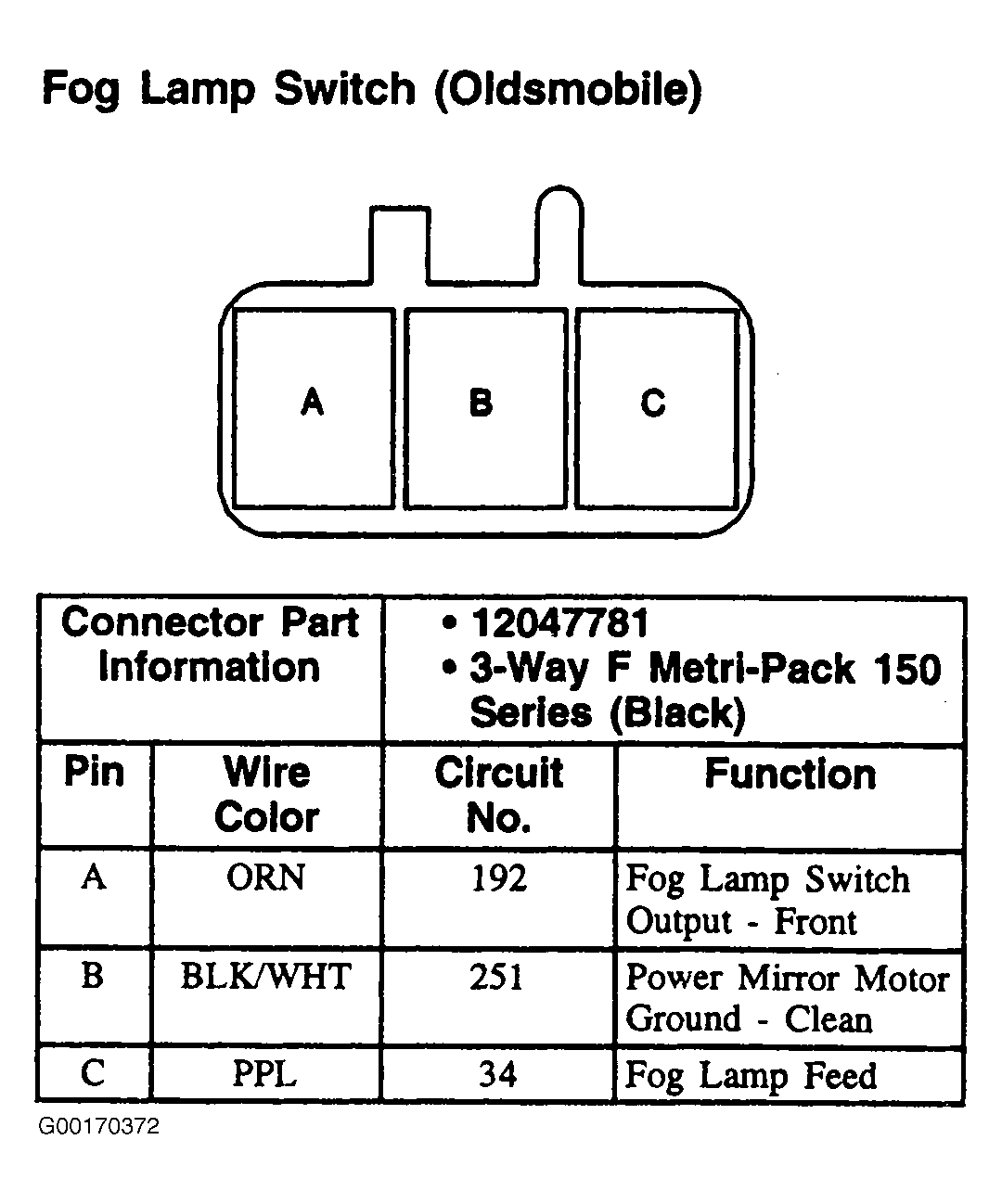

Fig 1: Fog Lamp Switch (Cutlass) - 3-Pin Connector (Black)

G00170372

Courtesy of GENERAL MOTORS CORP.
