Test Description

DTC 72 will set if EBCM/EBTCM detects brake travel switch circuit No. 848 (Tan wire) is shorted to ground (with brake pedal depressed).

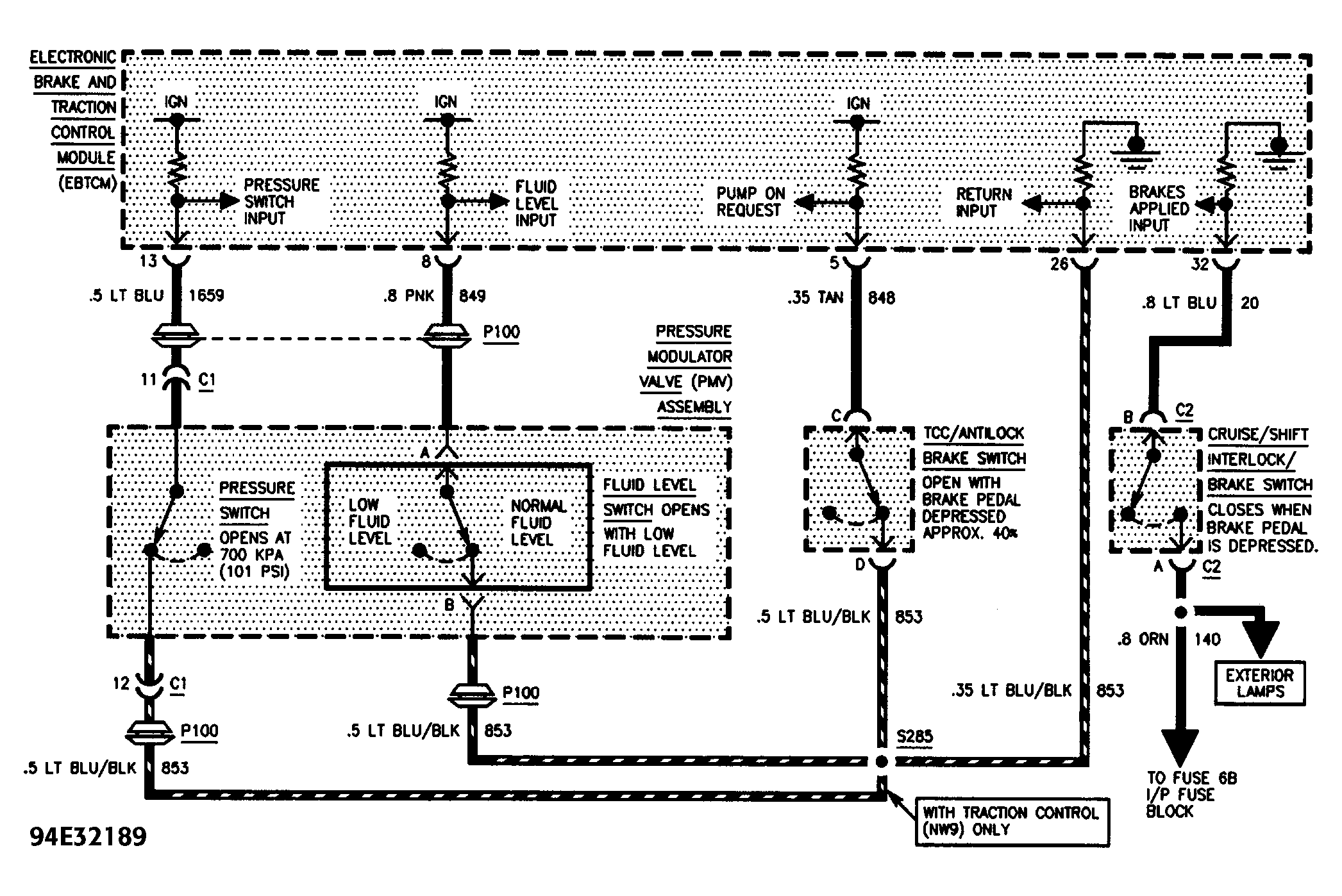

Fig 1: DTC 72 Schematic

Courtesy of GENERAL MOTORS CORP.

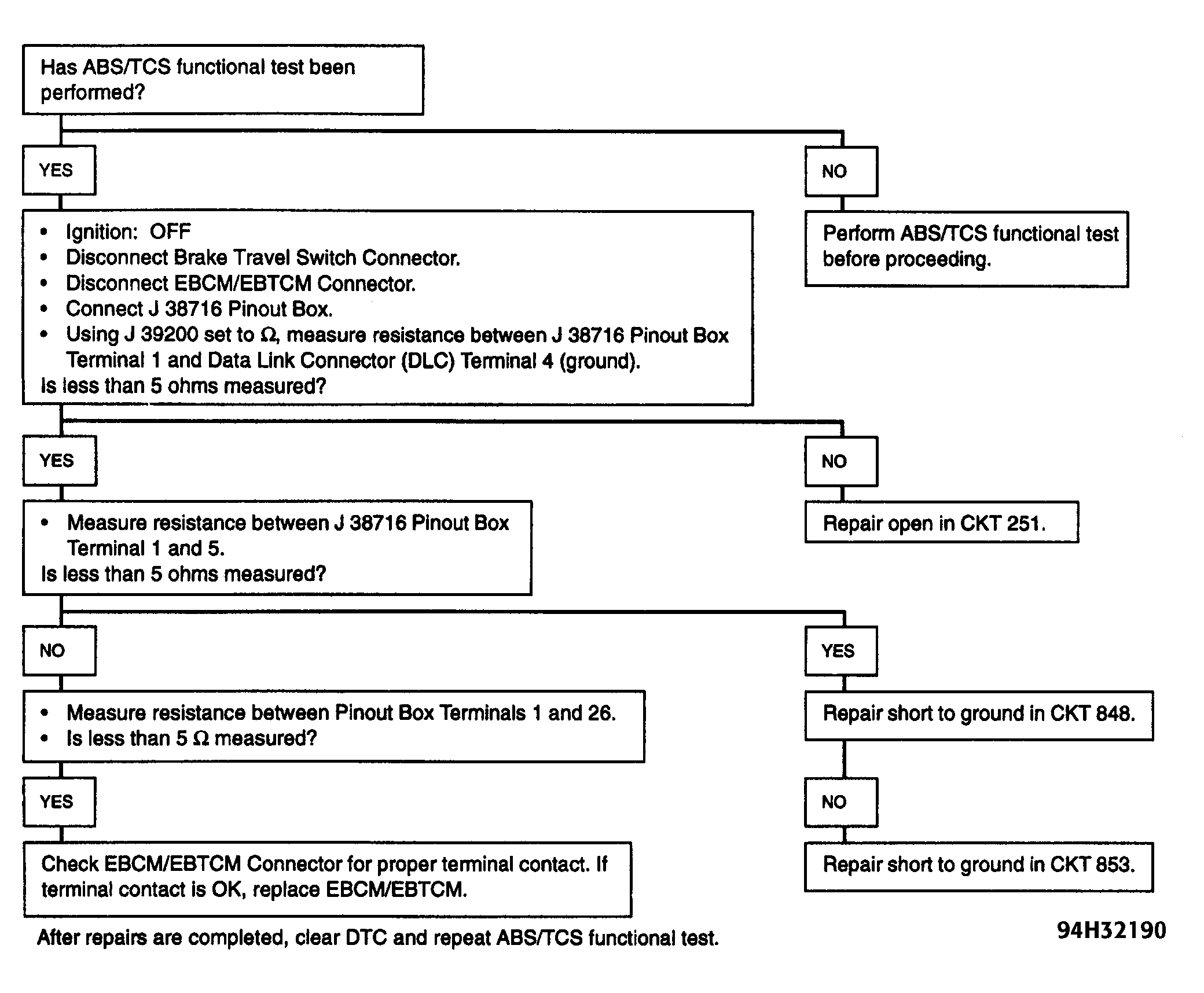

Fig 2: DTC 72 Flow Chart

Courtesy of GENERAL MOTORS CORP.
