Diagnostic Aids

Check all connections, especially those at the transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in the TESTS W/O CODES article in this section. Some slight TCC slippage is normal. 3-2 control solenoid feedback normally oscillates on/off when the duty cycle is applied.

Fig 1: Code 66 Schematic Control Solenoid Circuit Fault
G94A66043

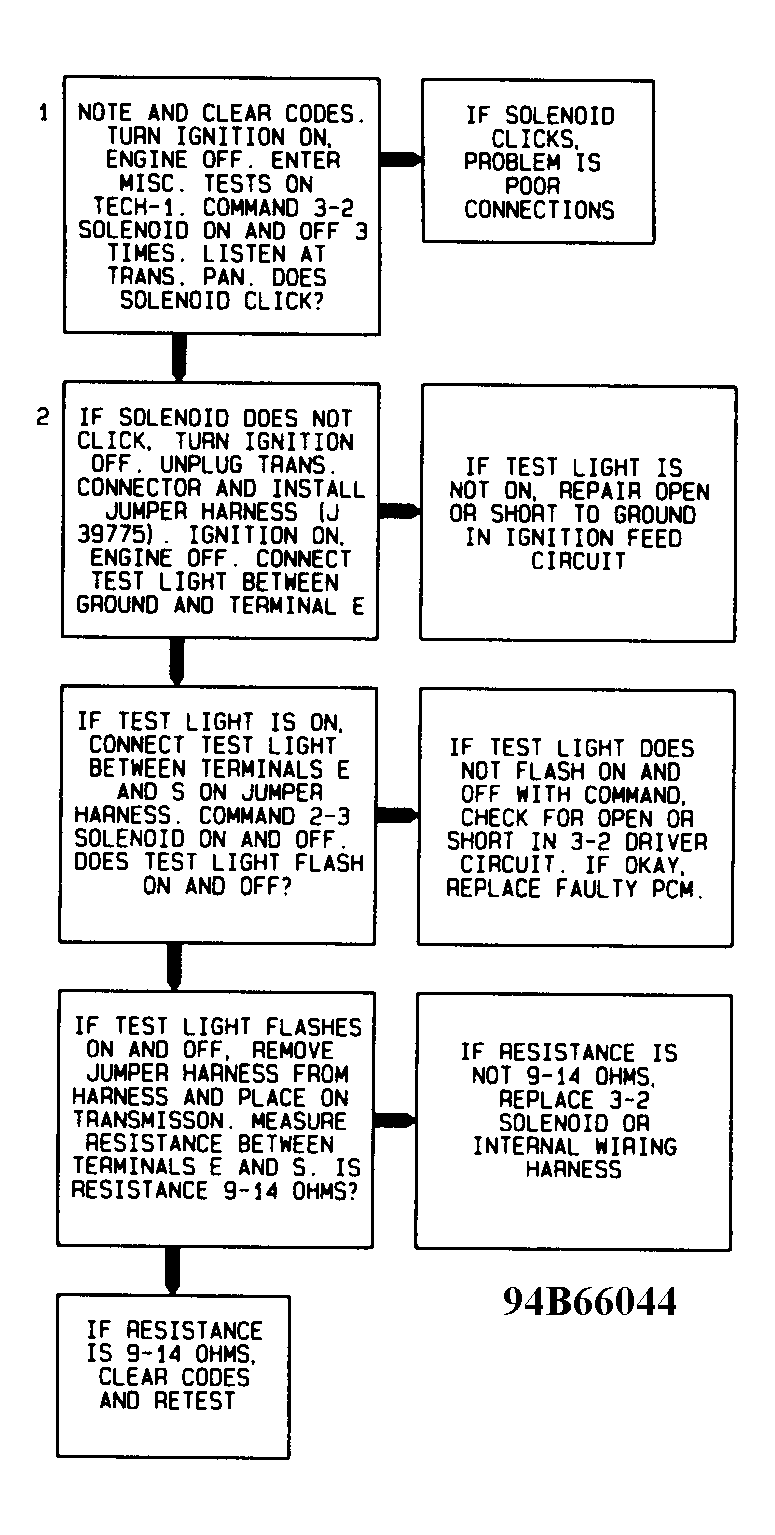

Fig 2: Code 66 Flow Chart
G94B66044
