Camber Adjustment

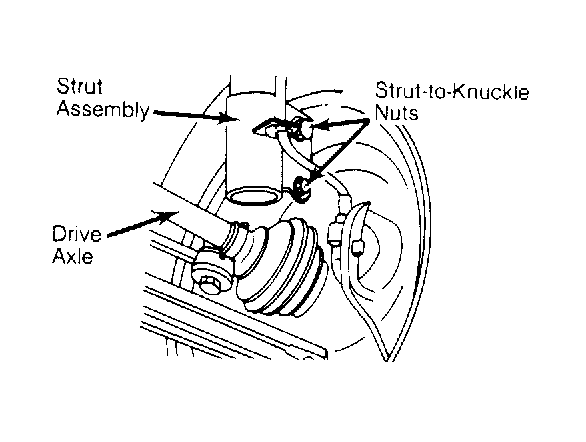

To adjust front camber, loosen 2 strut-to-steering knuckle bolts. See Fig 1 . Move top of wheel in or out to obtain correct camber specification. While holding wheel in position, tighten 2 strut-to-steering knuckle bolts. Rear camber is not adjustable. If rear camber is not to specification, repair or replace damaged or worn suspension or body parts.
