Test L (SPS Circuit Short Test)

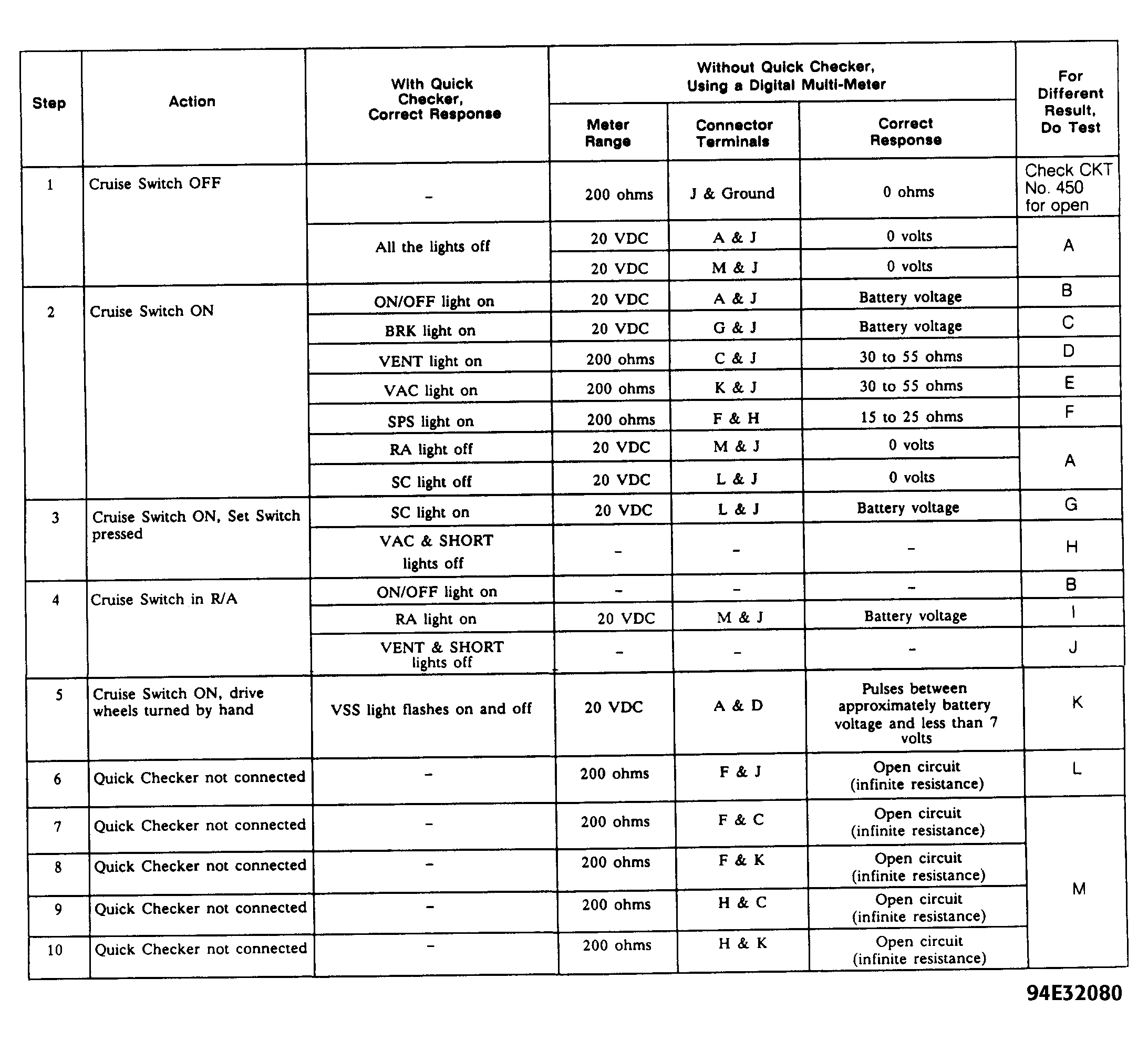

  1. Disconnect servo connector and repeat step 6) of CRUISE CONTROL ISOLATION TEST CHART. See Figure .
  2. If resistance is infinite, replace servo. If resistance remains low, repair short in Tan wire between cruise control module connector terminal "F" and servo connector terminal "B". See Figure and Figure .
