Test D: Power Door Locks Do Not Operate From Either Switch

To perform this test, refer to illustration. See Fig 1 .

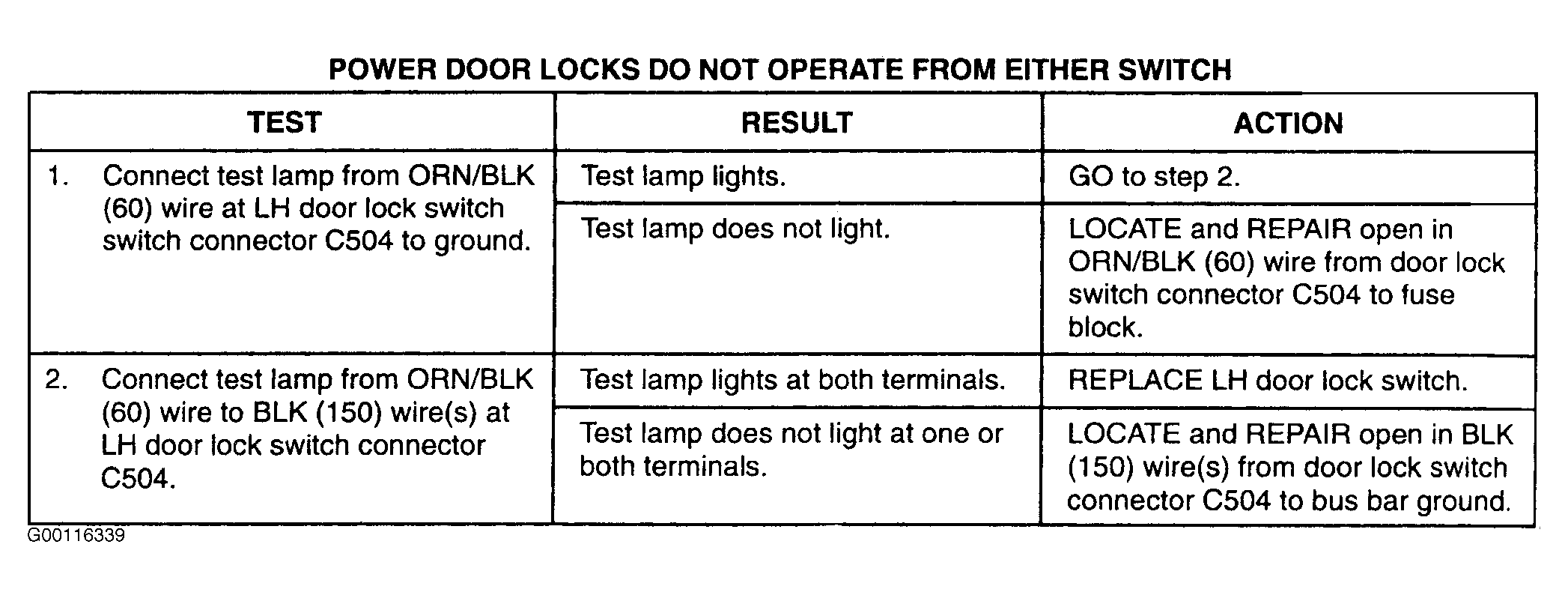

Fig 1: Testing Power Door Locks Do Not Operate From Either Switch
G00116339Courtesy of GENERAL MOTORS CORP.
