Removal & Installation

  1. Remove compass module bracket retaining bolt, if equipped. See Fig 1 .
  2. Remove compass module bracket, if equipped.
  3. Remove antenna cable.
  4. Disconnect wiring harness connection.
    5. NOTE: To remove the receiver module, unhook the spring retaining hook from the rear package shelf and slide the module until the retaining tabs are free of the package shelf.
  5. To install, reverse removal procedure.

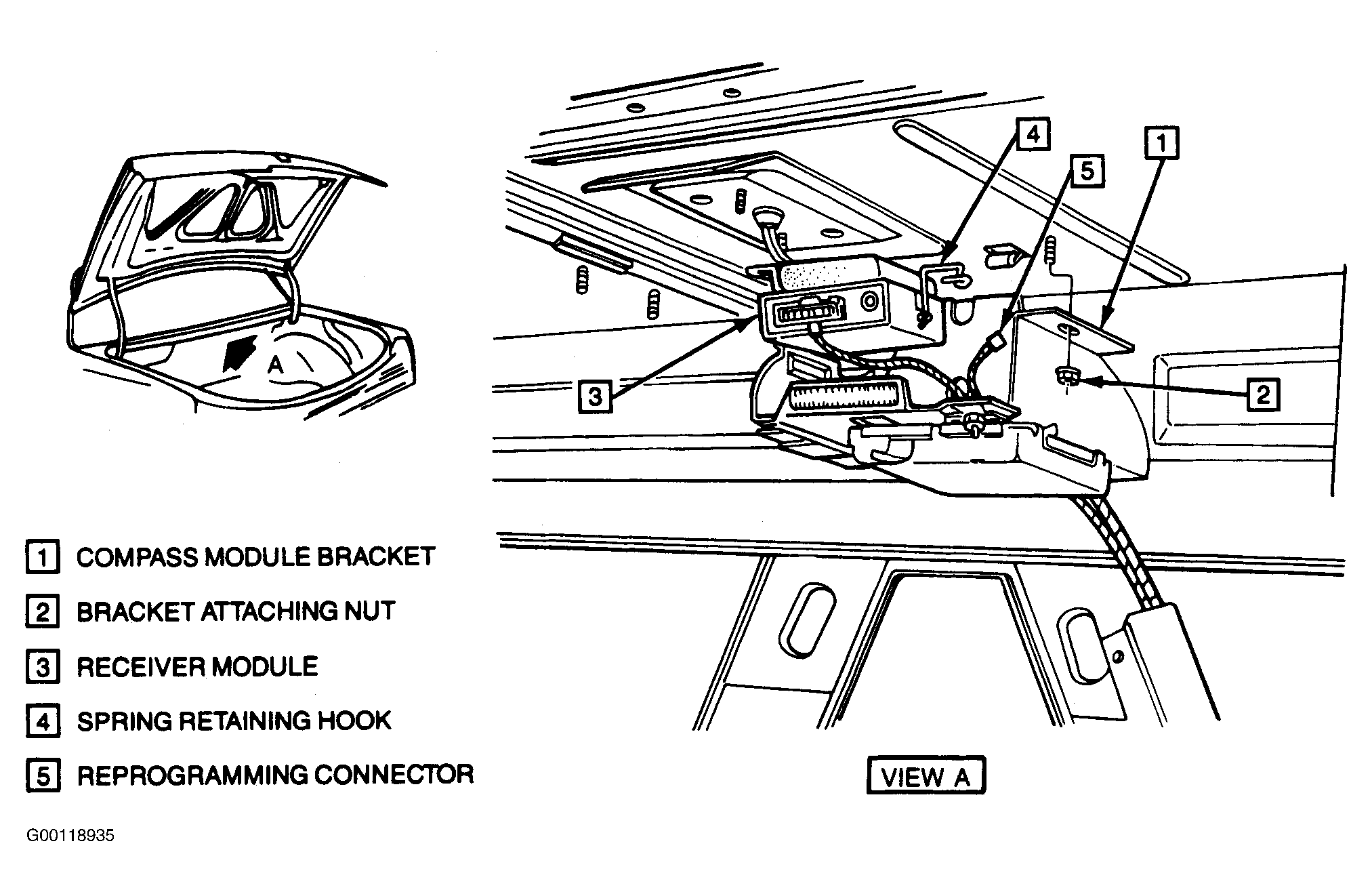

Fig 1: Removing & Installing Receiver Module
G00118935Courtesy of GENERAL MOTORS CORP.
