Speed Sensor Rotor Replacement

NOTE: DO NOT remove speed sensor rotor unless damaged.
  1. Using puller and a thick flat washer, remove speed sensor rotor. See Fig 1 .
  2. Using a plastic mallet, install speed sensor rotor. It may help to warm rotor before installation.

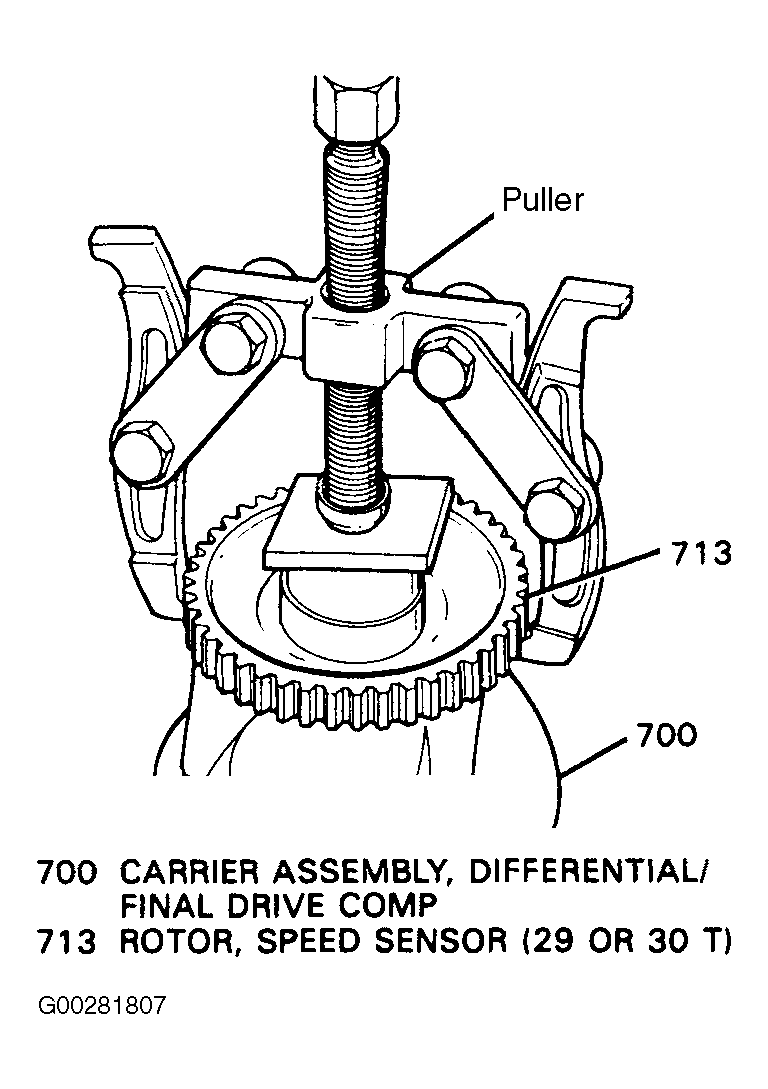

Fig 1: Removing Speed Sensor Rotor
G00281807Courtesy of GENERAL MOTORS CORP.
