Home >> Oldsmobile >> 1992 >> Toronado Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnosis & Testing >> Code 71: EBCM Fault

Code 71: EBCM Fault

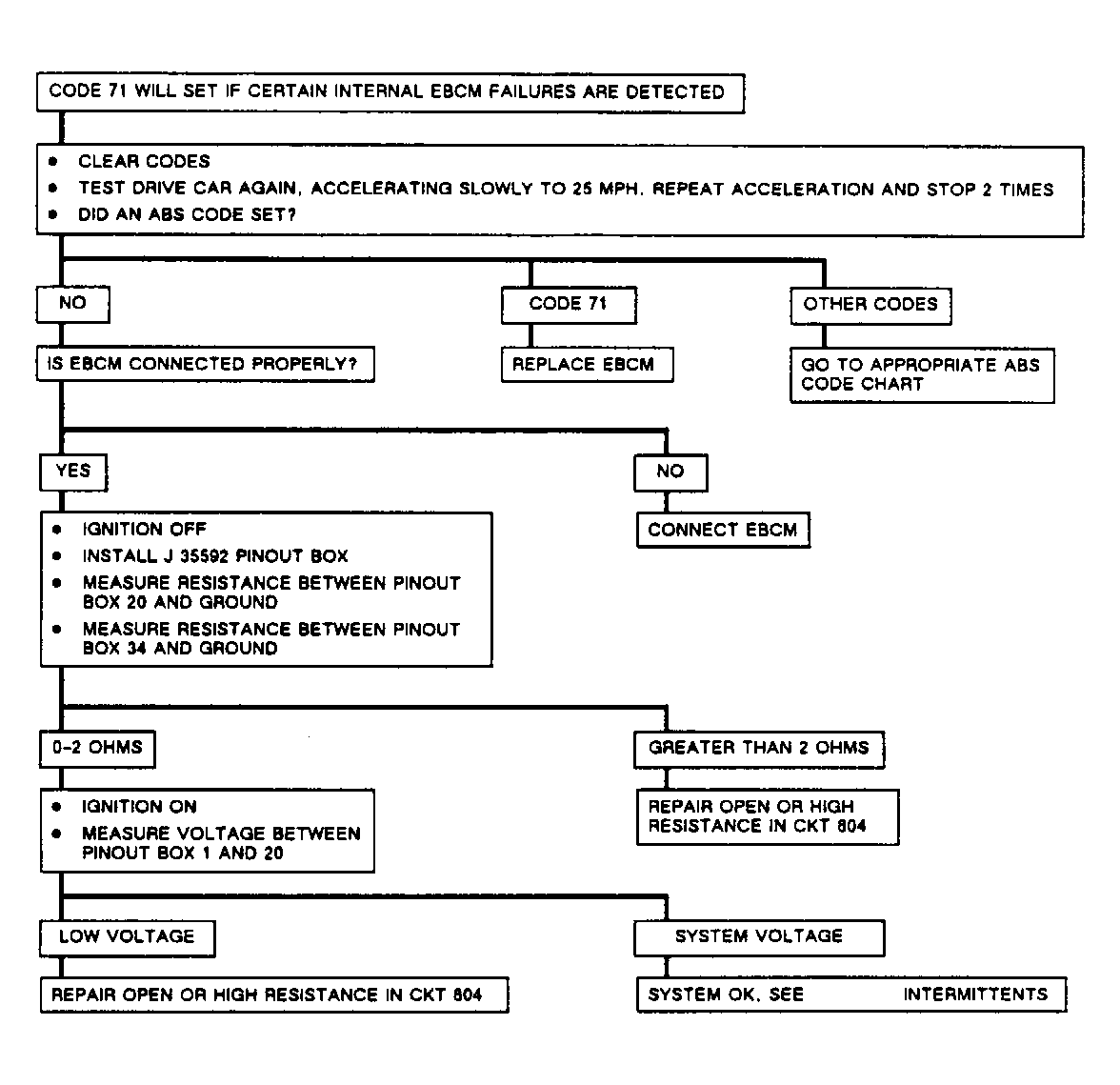

Fig 1: Code 71: Diagnostic Flow Chart

G91A08124

Courtesy of GENERAL MOTORS CORP.
