Anti-Lock Brake System Functional Check

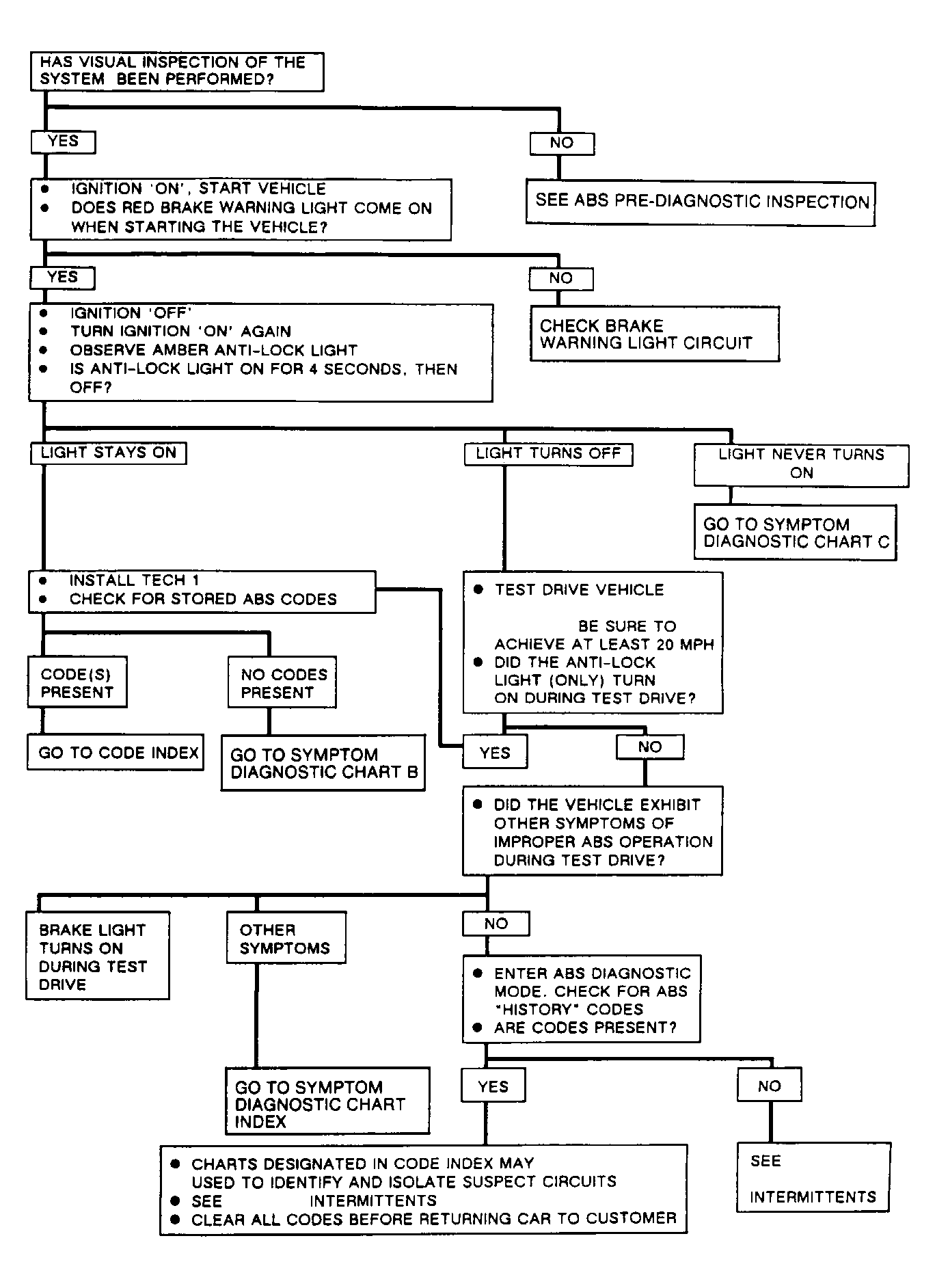

Fig 1: Anti-Lock Brake System Functional Check

G90H08274

Courtesy of GENERAL MOTORS CORP.
