Test F: Seat Recliner Motor Test

To perform Test F, see Fig 1 .

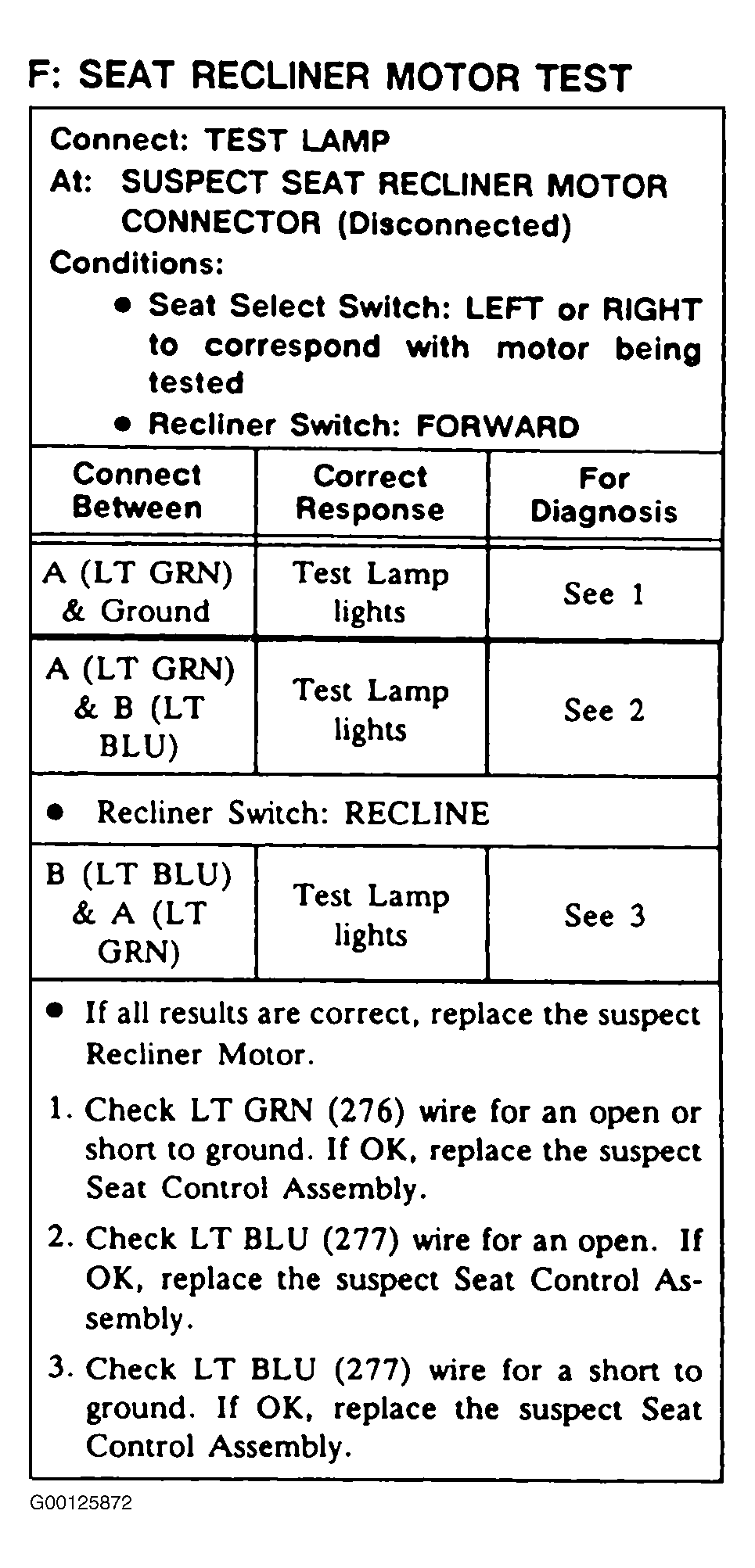

Fig 1: Test F: Seat Recliner Motor Test

G00125872

Courtesy of GENERAL MOTORS CORP.
