Wiper Washer Switch Check Chart

WARNING: This page is about a different car, the 1988 Pontiac Grand Prix, 1988 Oldsmobile Cutlass Supreme, and 1988 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

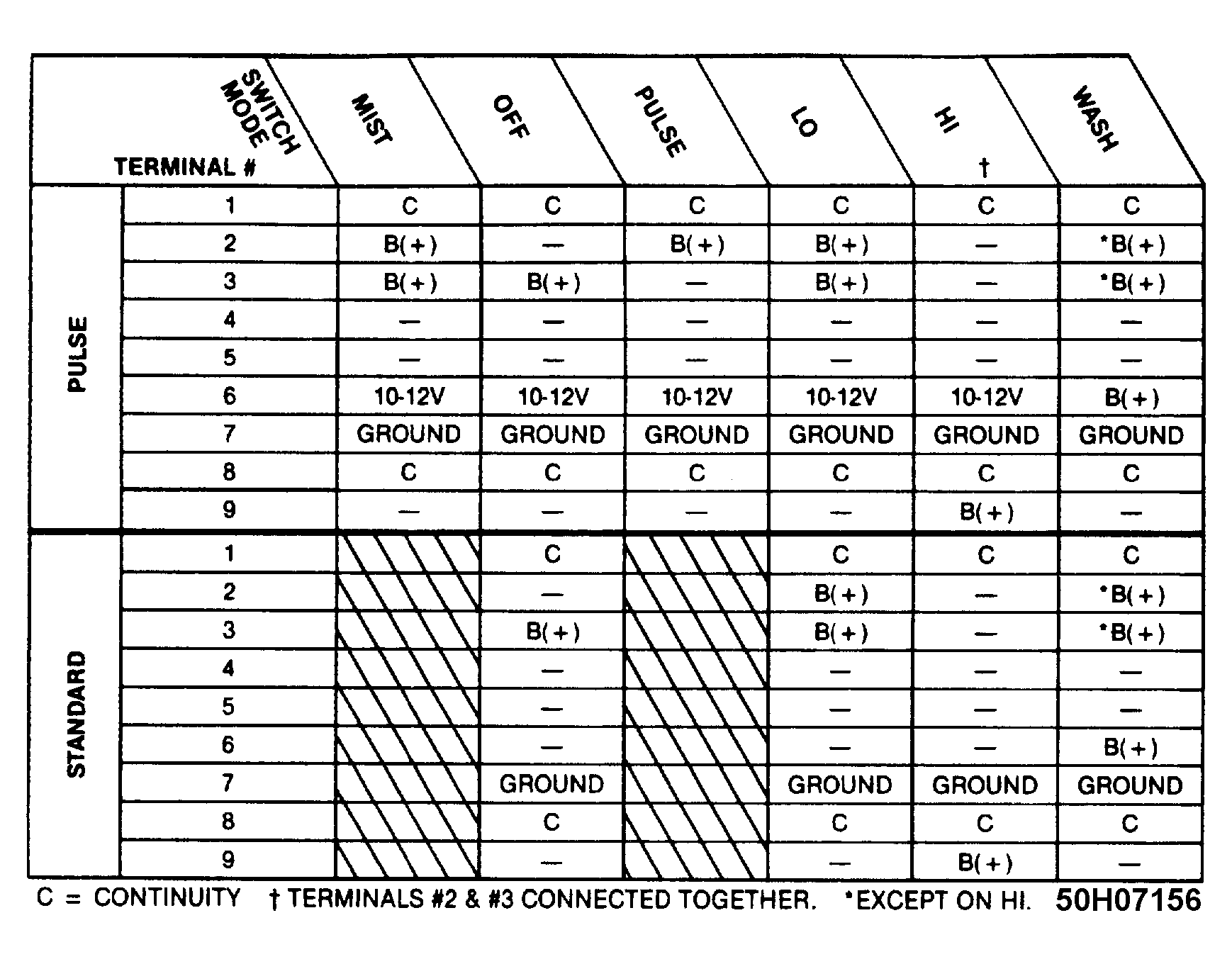

Fig 1: Wiper Washer Switch Check Chart
G50H07156Courtesy of GENERAL MOTORS CORP.
