Home >> Oldsmobile >> 1992 >> Cutlass Supreme Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test E: Lock Out Switch Test (Sedan Or Convertible)

Test E: Lock Out Switch Test (Sedan Or Convertible)

To perform test, see Fig 1 .

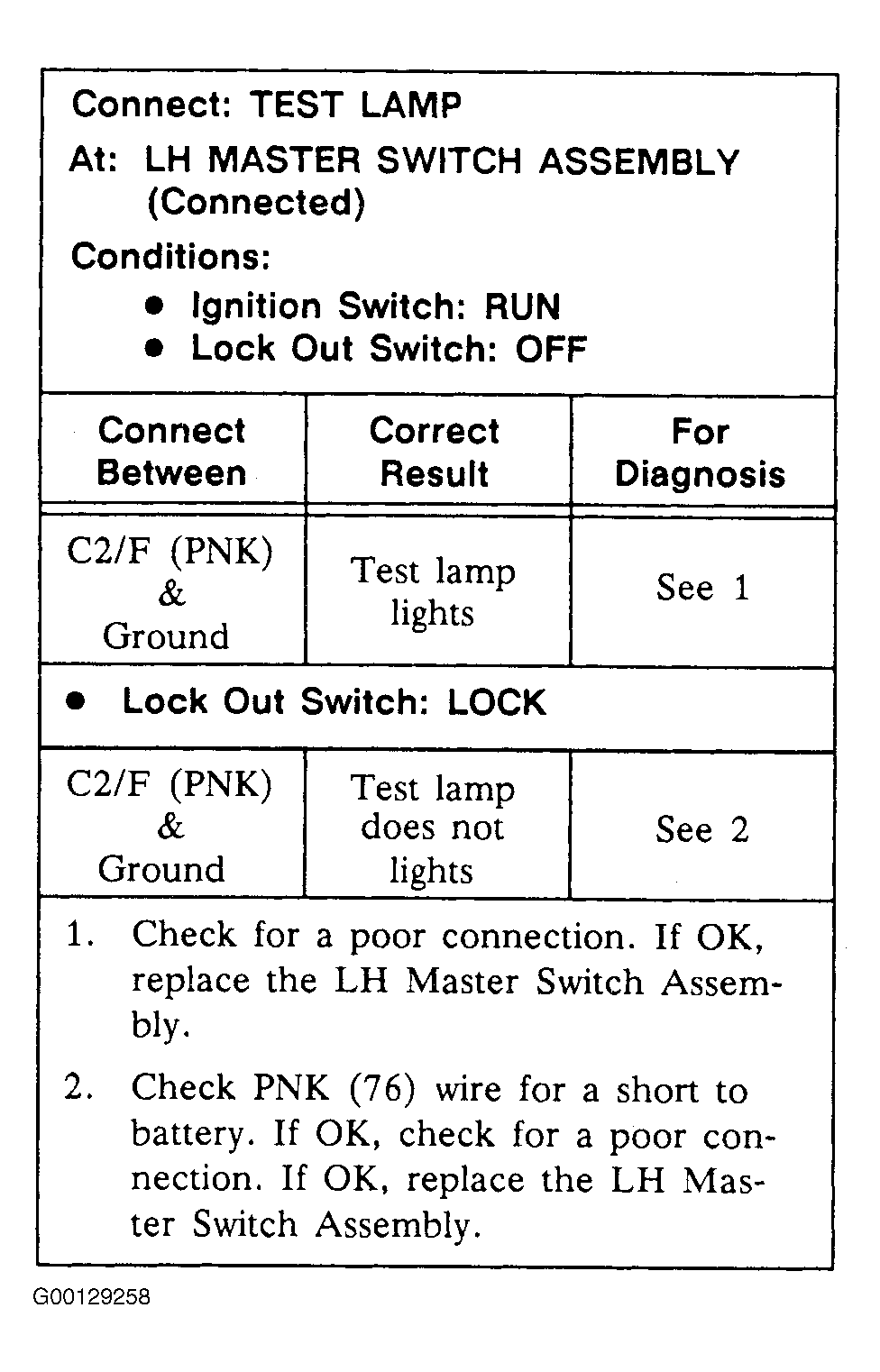

Fig 1: Test E: Lock Out Switch Test
G00129258Courtesy of GENERAL MOTORS CORP.
