Home >> Oldsmobile >> 1992 >> Cutlass Supreme Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test A: Window Power & Ground Test

Test A: Window Power & Ground Test

To perform test, see Fig 1 .

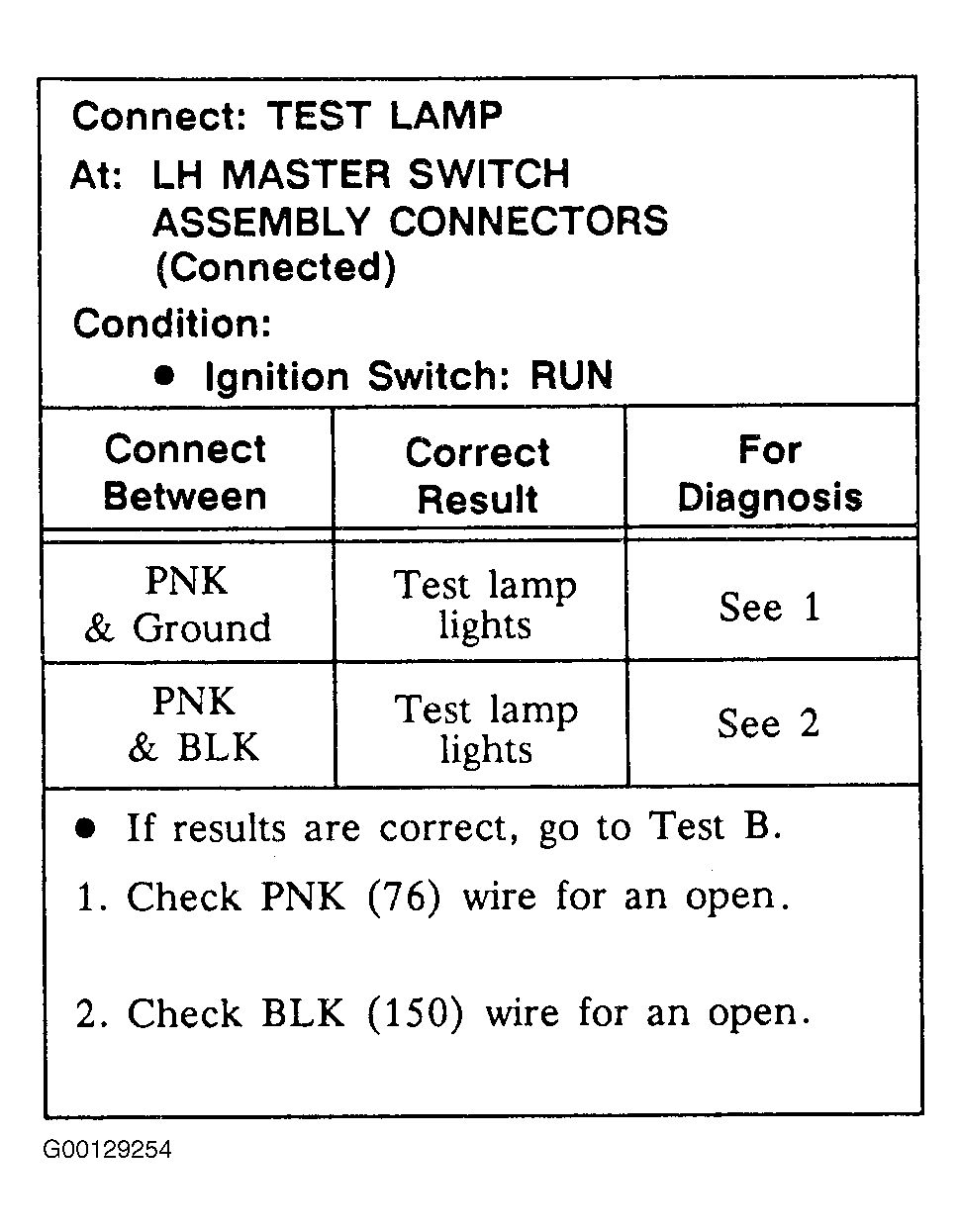

Fig 1: Test A: Window Power & Ground Test

G00129254

Courtesy of GENERAL MOTORS CORP.
