Component Locations

COMPONENT LOCATIONS

Component Location
Assembly Line Diagnostic Link (ALDL) Connector Behind Instrument Panel, Right Of Steering Column. Fig 1
Electronic Brake Control Module (EBCM) Driver Side Of Engine Compartment, On Inner Fender Panel. Fig 2
Engine Control Module (ECM) Passenger Side Of Engine Compartment, Forward Of Strut Tower. Fig 3
Fuse Block Behind Passenger Side Of Instrument Panel, In Instrument Panel Compartment. Fig 1
HVAC/Radio Control Assembly Center Of Instrument Panel. Fig 4 & Fig 5
HVAC/Radio Control Interface Module Behind Instrument Panel, On Lower Part Of Steering Column
Left Side Electrical Center Driver Side Of Engine Compartment, On Strut Tower. Fig 6
Radio Center Of Instrument Panel. Fig 7
C100 (36 Terminals) Passenger Front Of Dash, Behind Strut Tower. Fig 1
C202 (48 Terminals) Behind Instrument Panel, Passenger Side Of Steering Column. Fig 1
G101 Lower Driver Front Of Engine. Fig 8
G102 (VIN T) Passenger Rear Of Engine. Fig 9
G102 (VIN X) Driver Rear Of Engine. Fig 10
G103 Lower Driver Front Of Engine. Fig 8
G106 Driver Front Of Engine Compartment. Fig 11
G200 Behind Driver Side Of Instrument Panel, Right Of Steering Column Support. Fig 1
S106 In Engine Harness, Near Electrical Center Breakout. Fig 3
S128 In Engine Harness, Near Electrical Center Breakout. Fig 3
S135 In Forward Lights Harness, Near Actuator Motor Assembly Breakout. Fig 12
S144 In Instrument Panel Harness, Near Fuse Block Breakout. Fig 5
S202 In Instrument Panel Harness, Near Compartment Lights Breakout. Fig 1
S206 In Instrument Panel Harness, Near Fuse Block Breakout. Fig 5
S211 In Instrument Panel Harness, Near Compartment Lights Breakout. Fig 1
S213 In Instrument Panel Harness, Near Fuse Block Breakout. Fig 13
S225 In Instrument Panel Harness, Near HVAC Assembly Breakout. Fig 5
S227 In Instrument Panel Harness, Near ALDL Connector. Fig 1
S239 In Instrument Panel Harness, Near HVAC Assembly Breakout. Fig 5

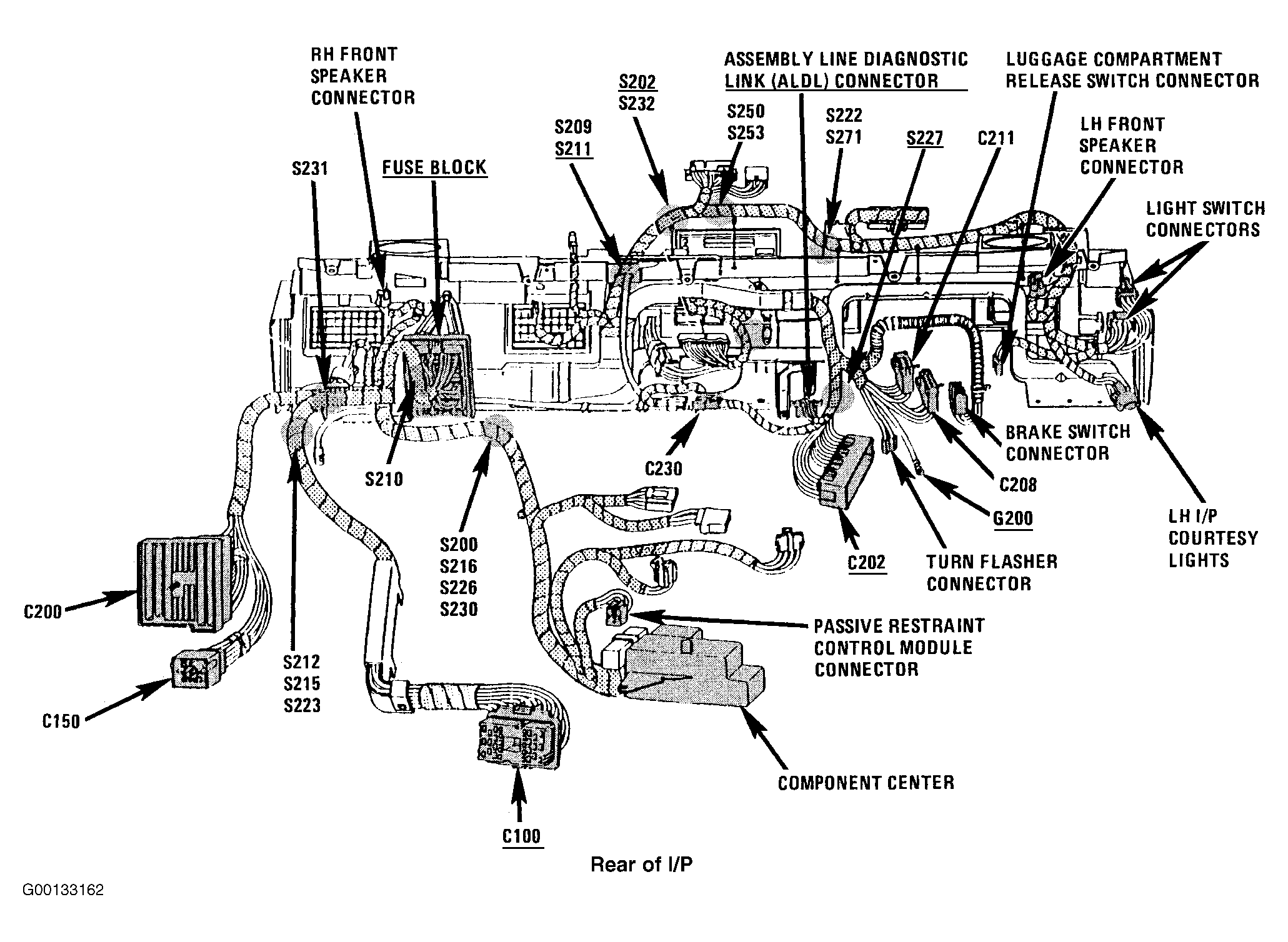

Fig 1: Locating ALDL, Fuse Block, C100, C202, G200, S202, S211 & S227
G00133162Courtesy of GENERAL MOTORS CORP.

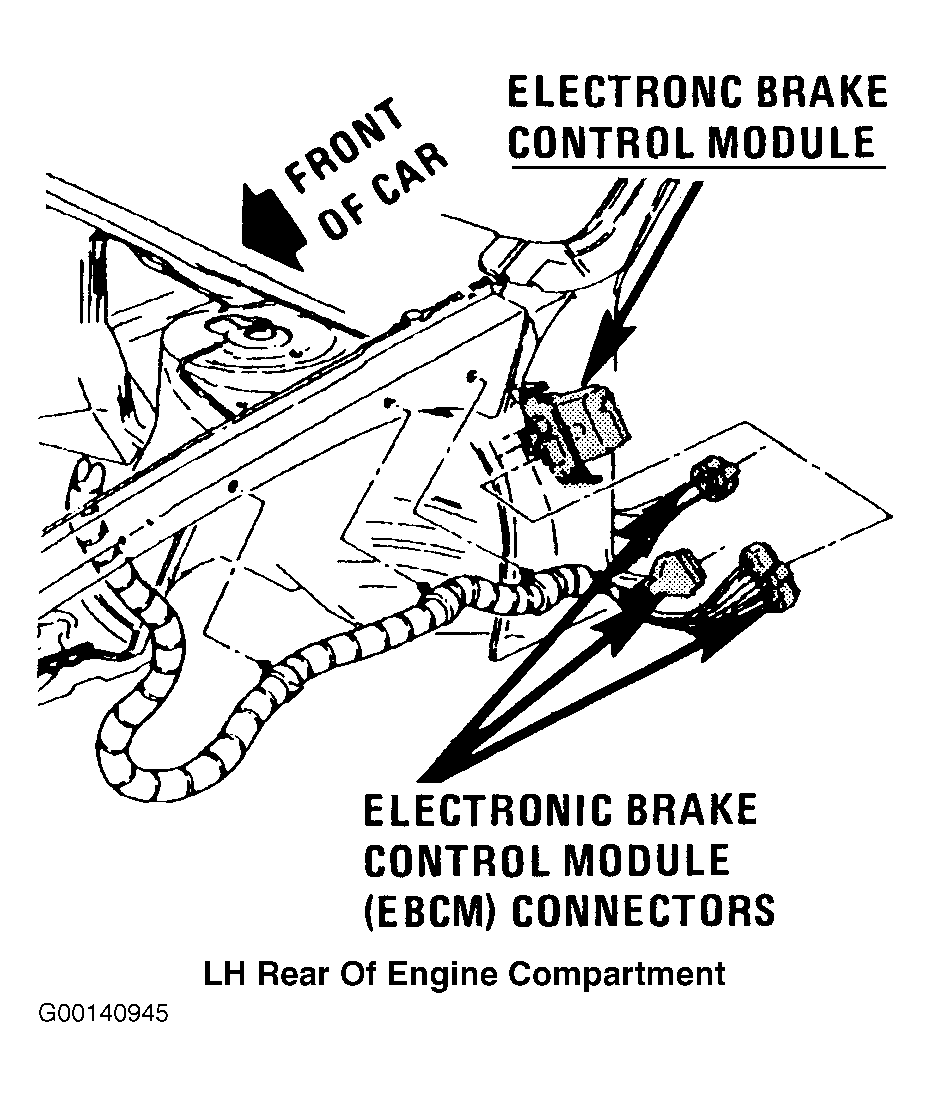

Fig 2: Locating EBCM
G00140945Courtesy of GENERAL MOTORS CORP.

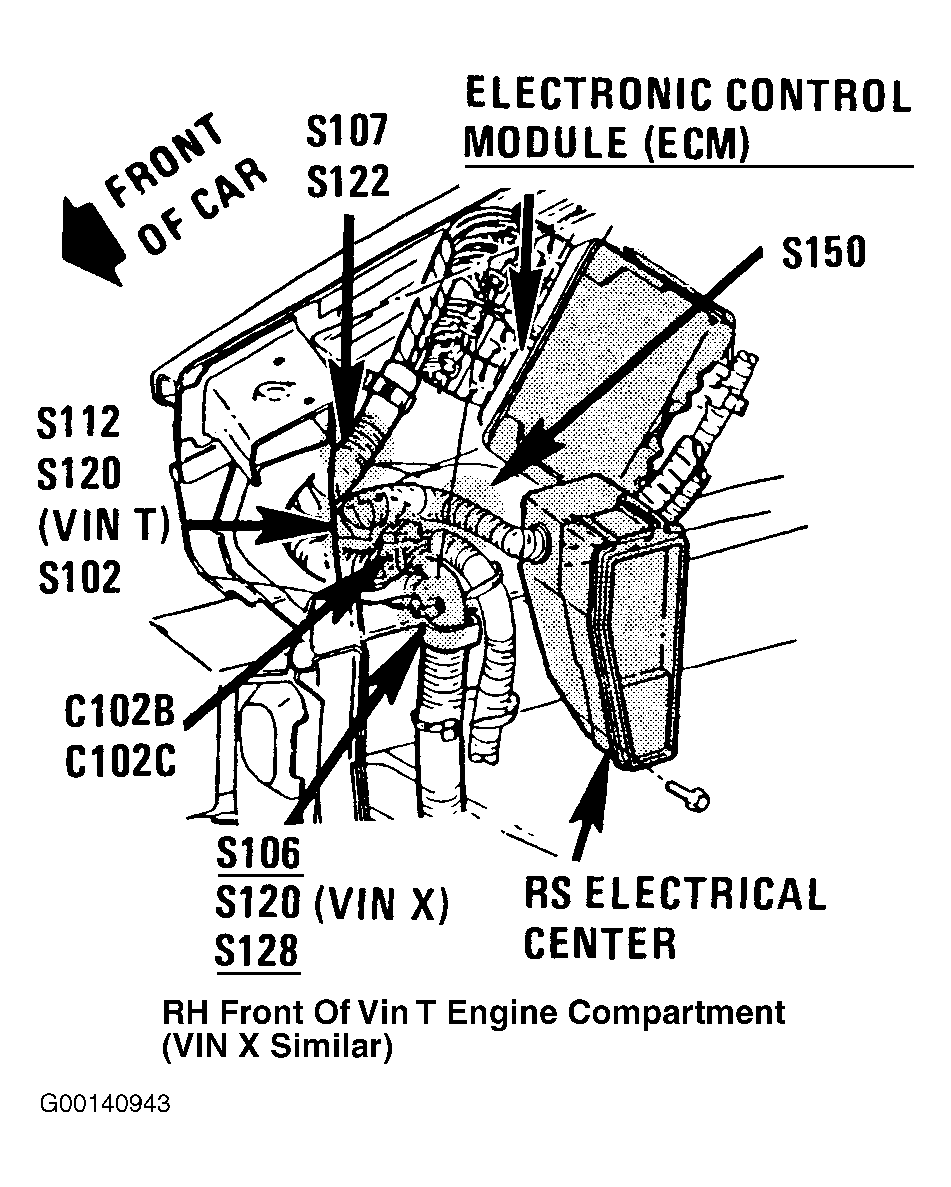

Fig 3: Locating ECM, S106 & S128
G00140943Courtesy of GENERAL MOTORS CORP.

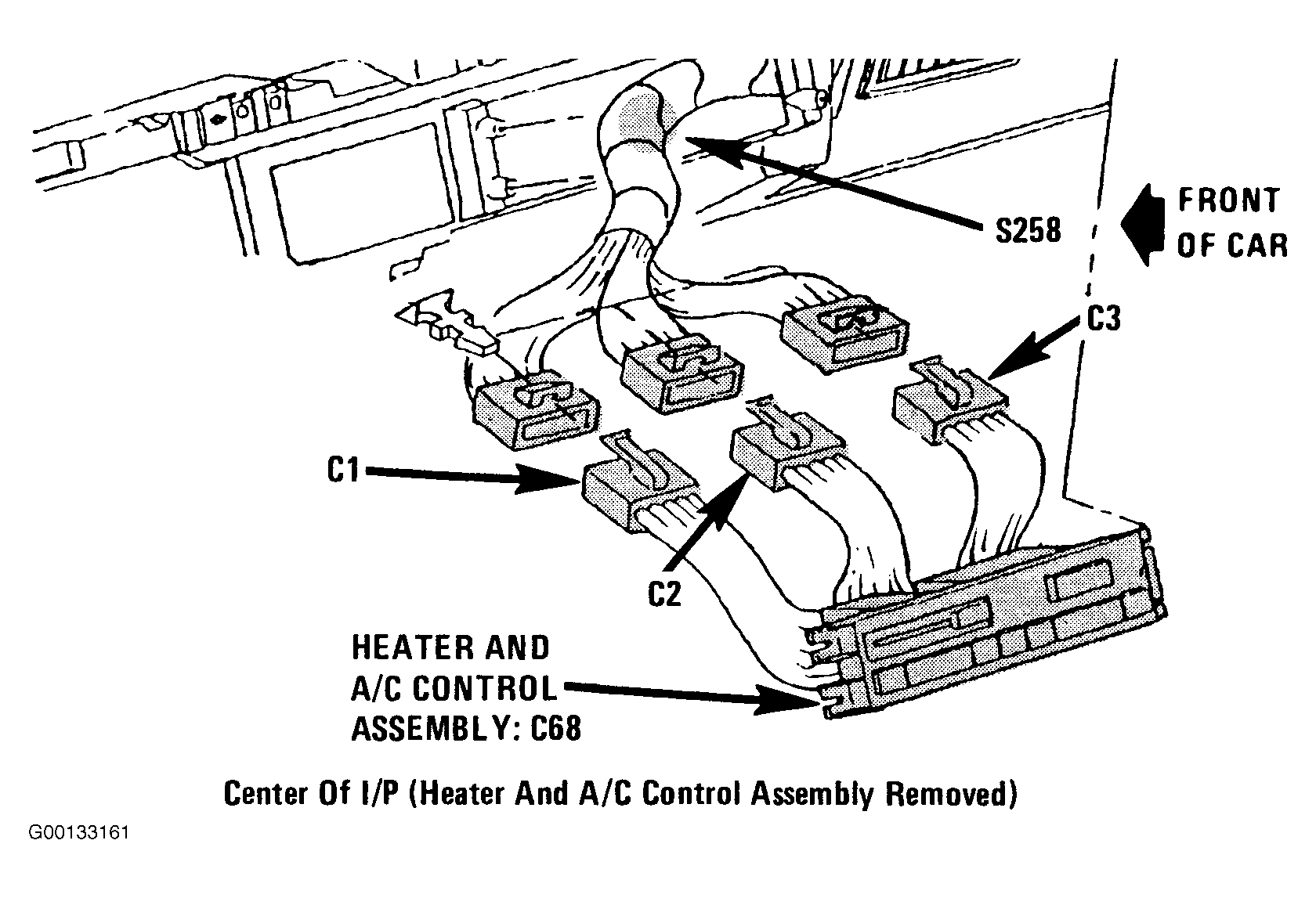

Fig 4: Locating HVAC Control Assembly
G00133161Courtesy of GENERAL MOTORS CORP.

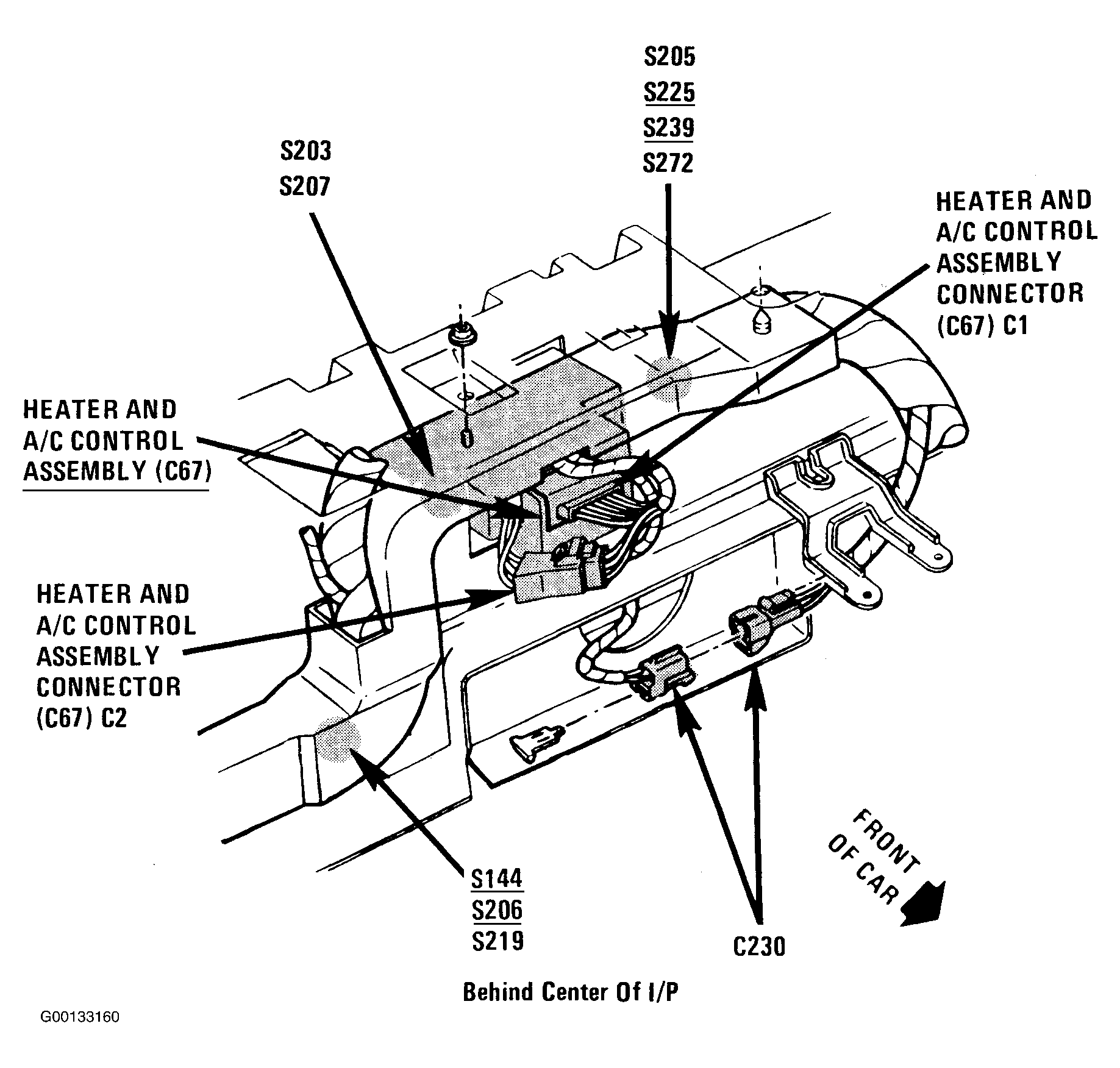

Fig 5: Locating HVAC Control Assembly, S144, S206, S225 & S239
G00133160Courtesy of GENERAL MOTORS CORP.

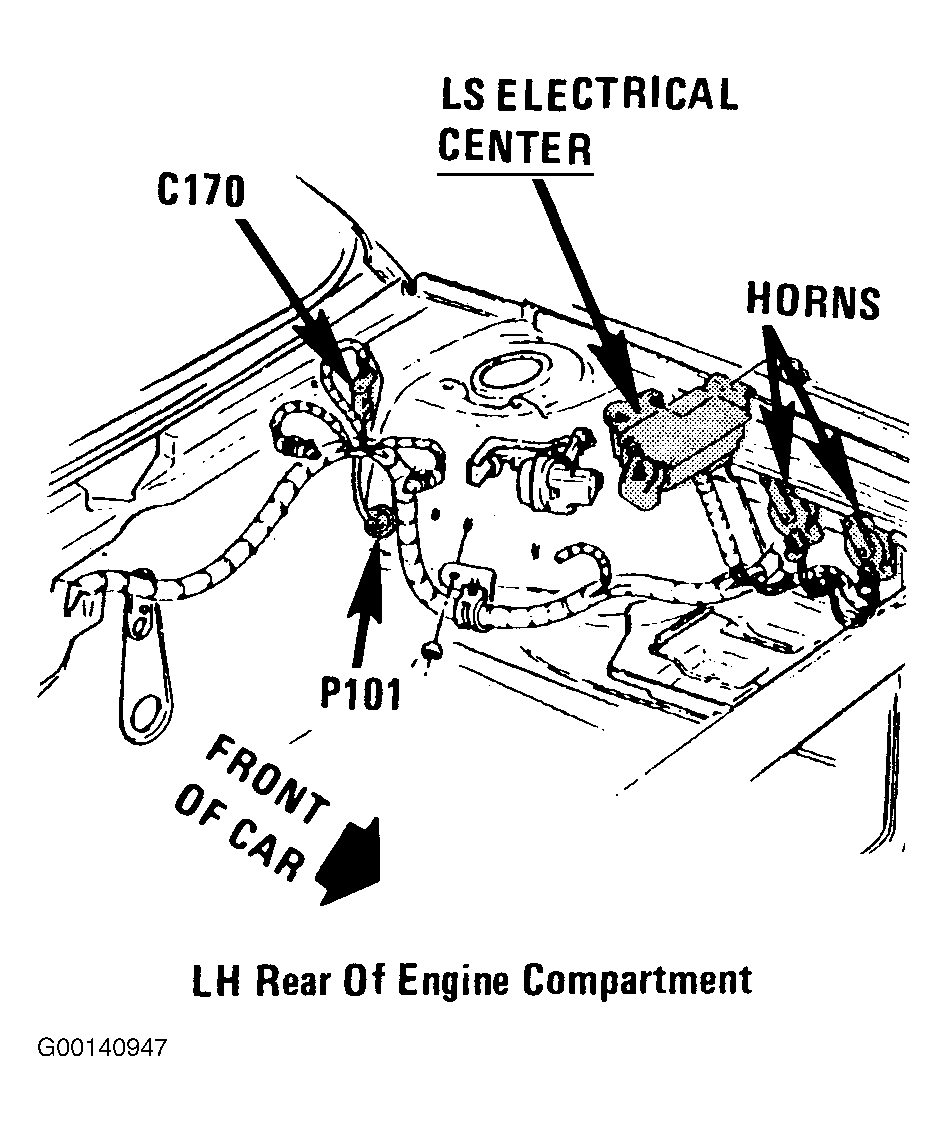

Fig 6: Locating Left Side Electrical Center
G00140947Courtesy of GENERAL MOTORS CORP.

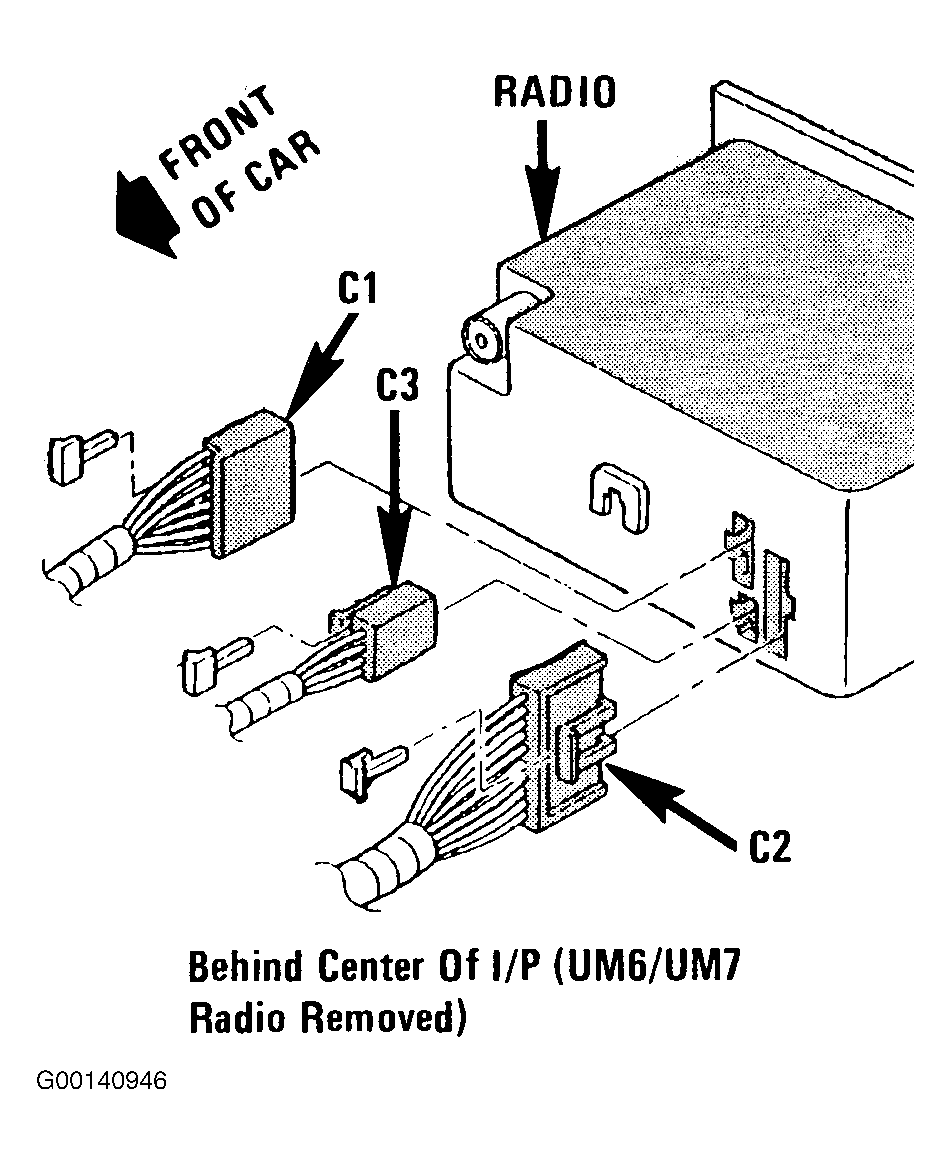

Fig 7: Locating Radio Connectors
G00140946Courtesy of GENERAL MOTORS CORP.

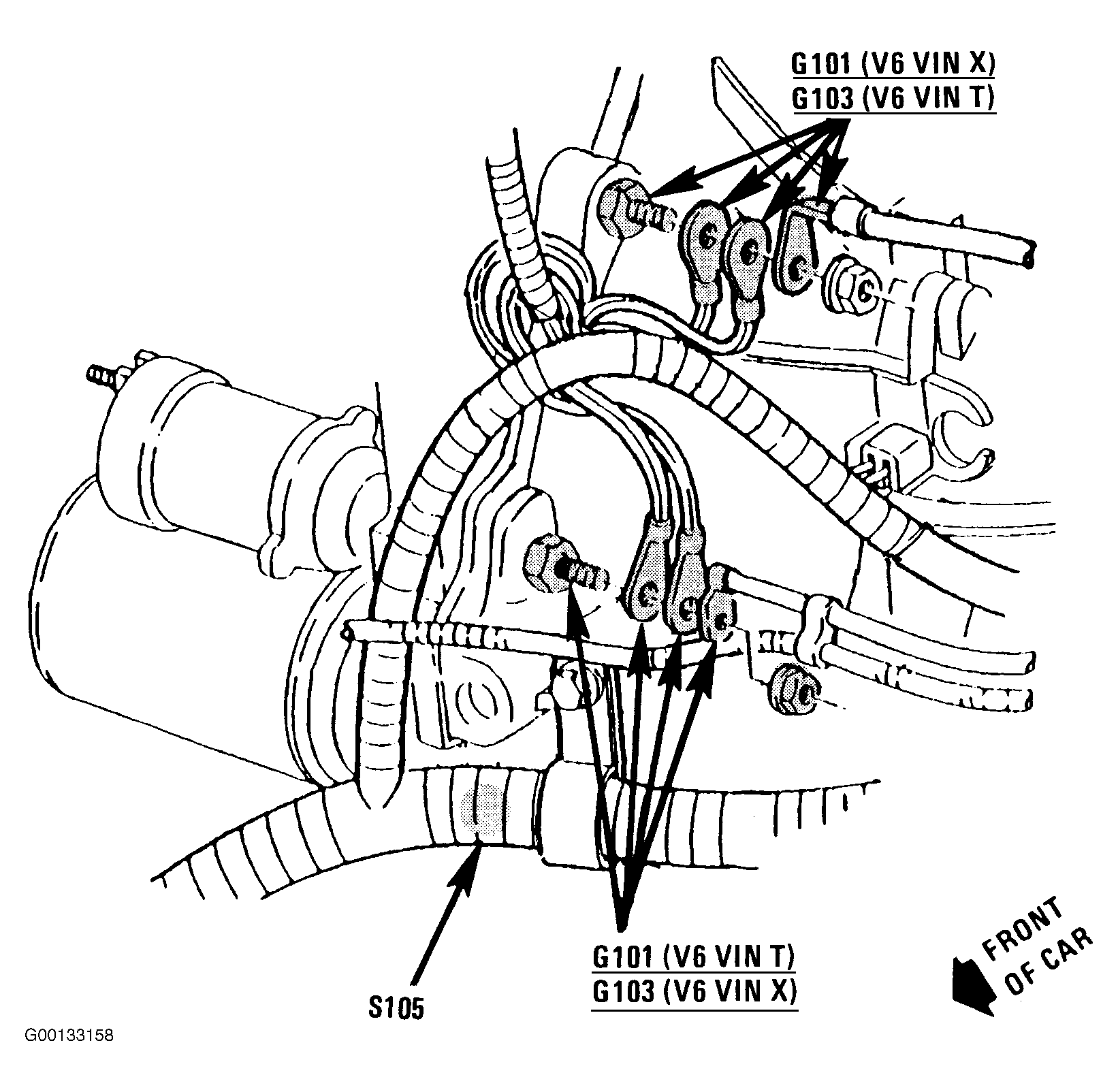

Fig 8: Locating Ground G101 & G103 (VIN T & X)
G00133158Courtesy of GENERAL MOTORS CORP.

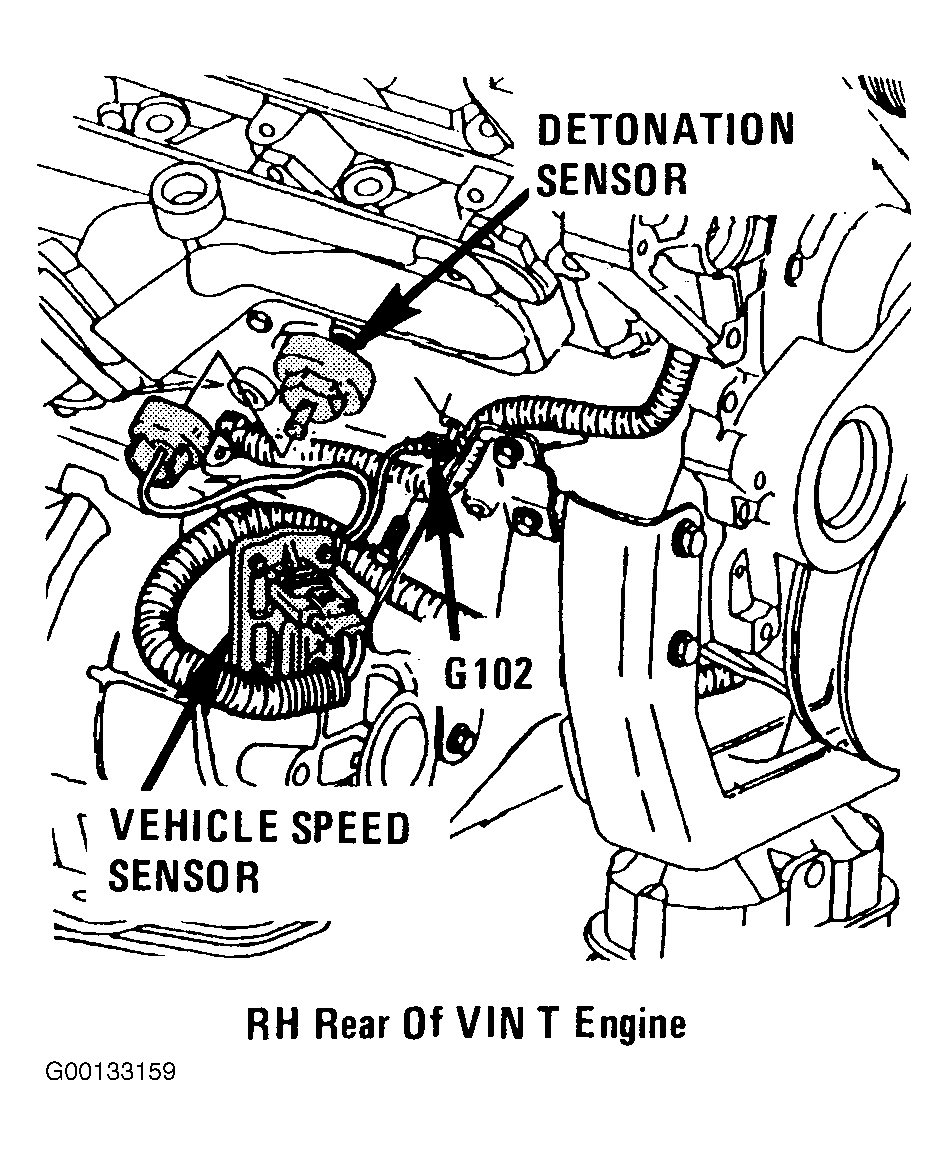

Fig 9: Locating Ground G102 (VIN T)
G00133159Courtesy of GENERAL MOTORS CORP.

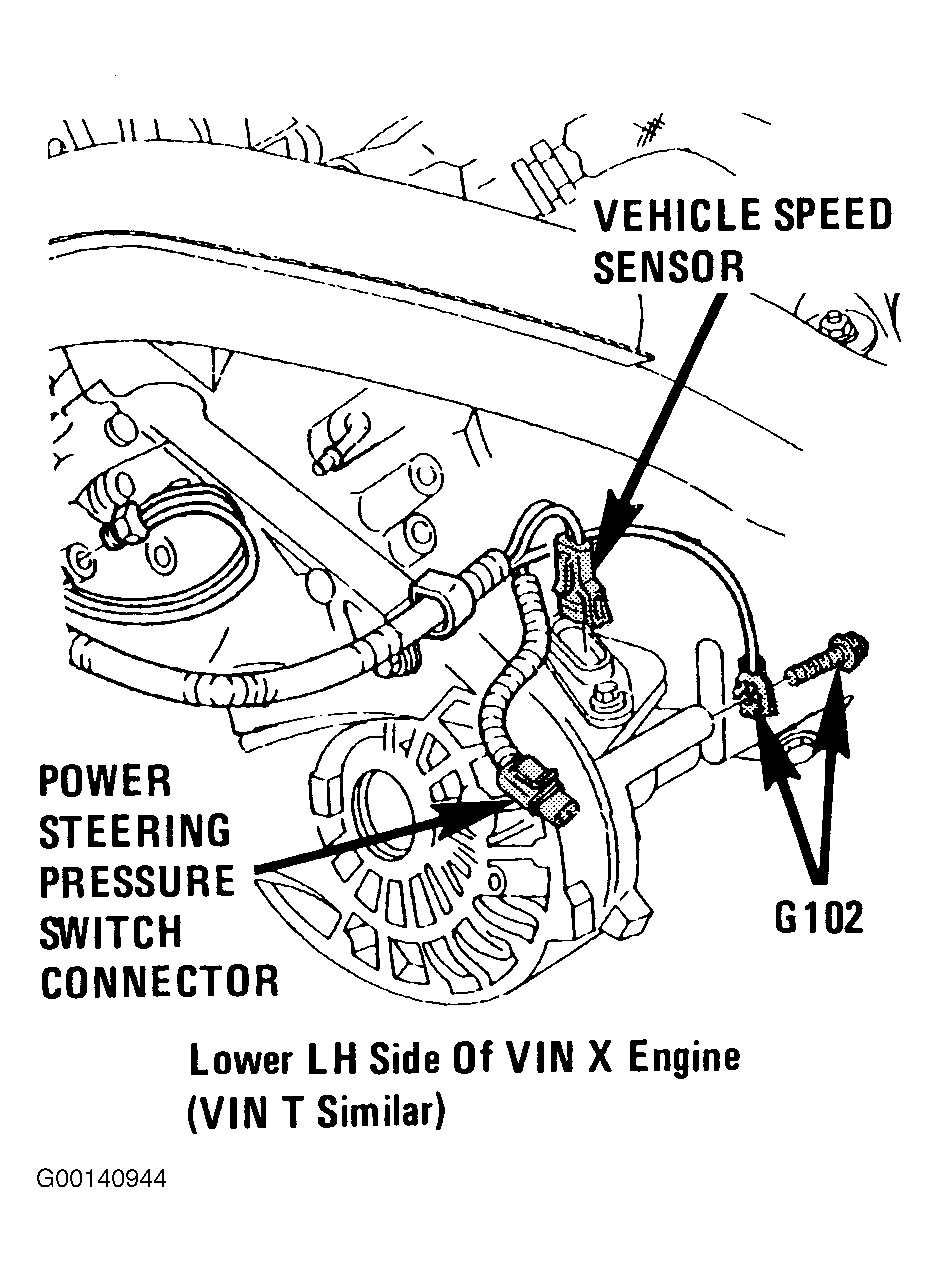

Fig 10: Locating Ground G102 (VIN X)
G00140944Courtesy of GENERAL MOTORS CORP.

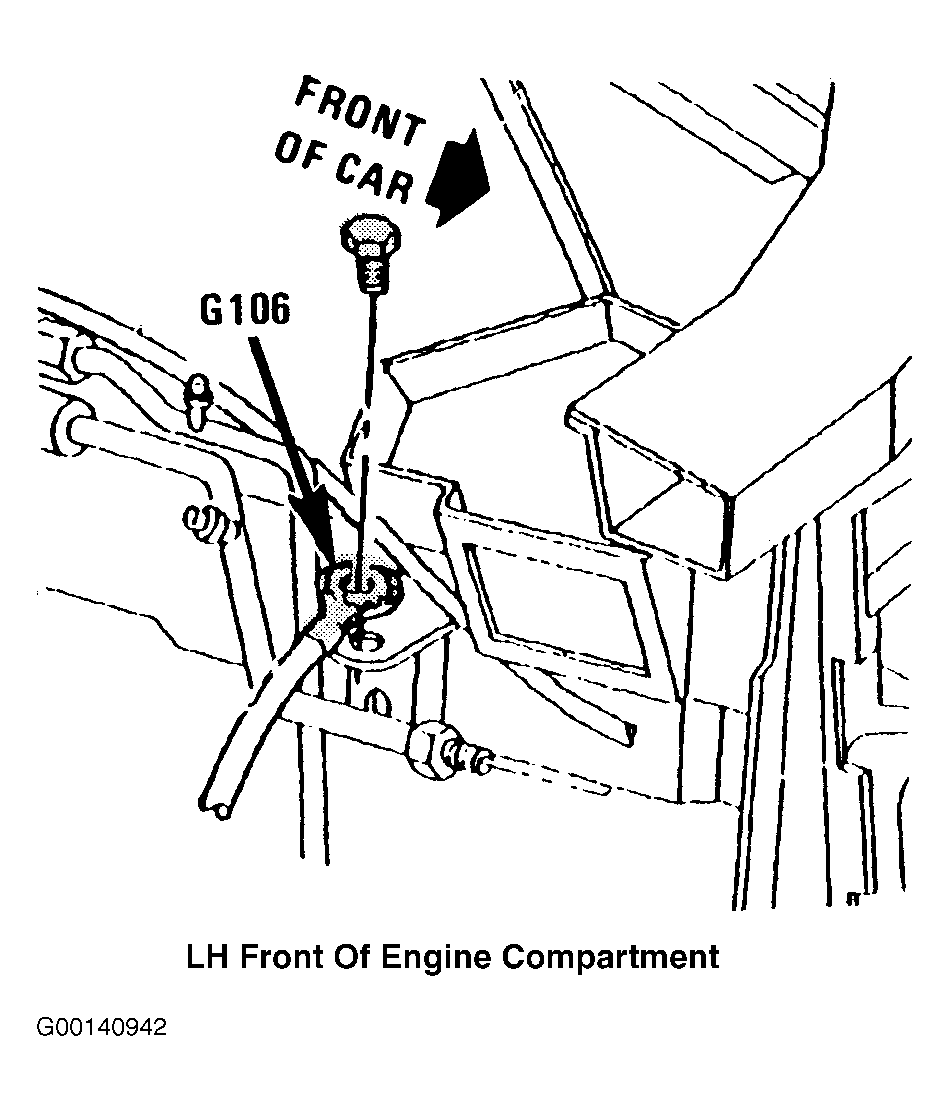

Fig 11: Locating Ground G106
G00140942Courtesy of GENERAL MOTORS CORP.

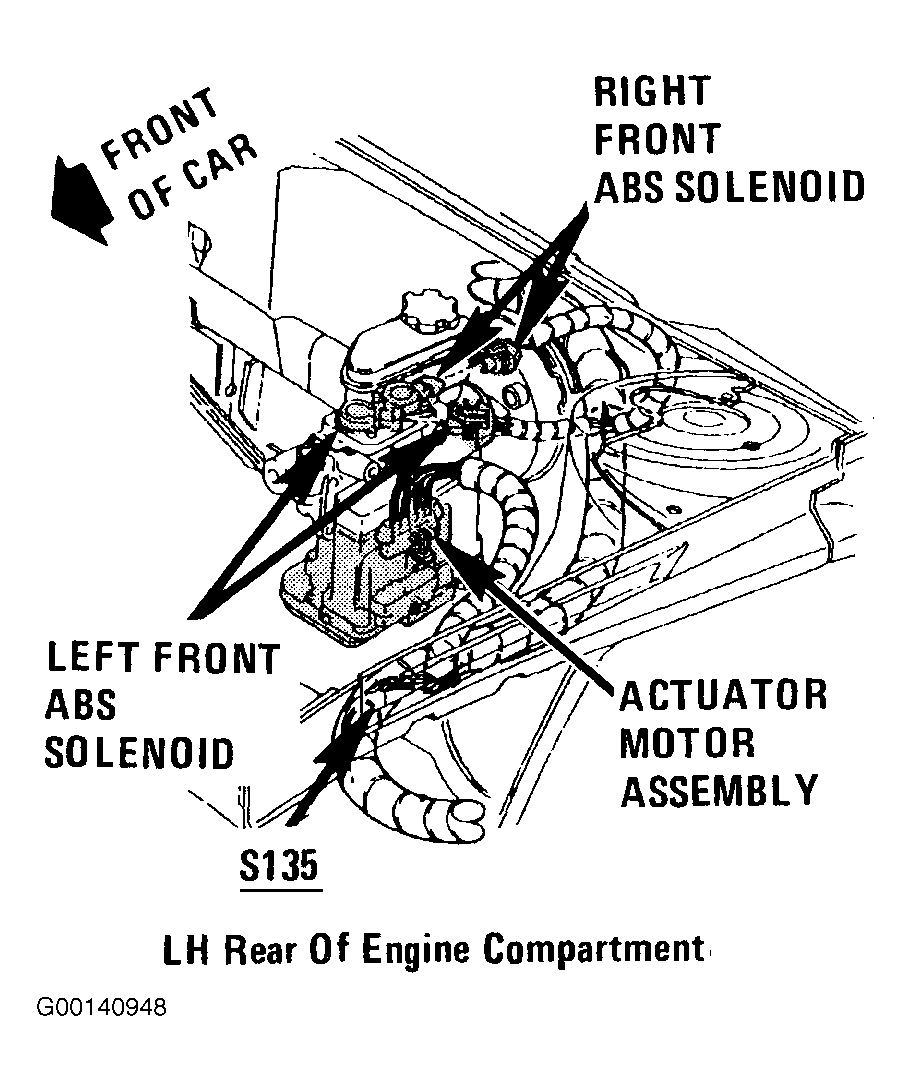

Fig 12: Locating Splice S135
G00140948Courtesy of GENERAL MOTORS CORP.

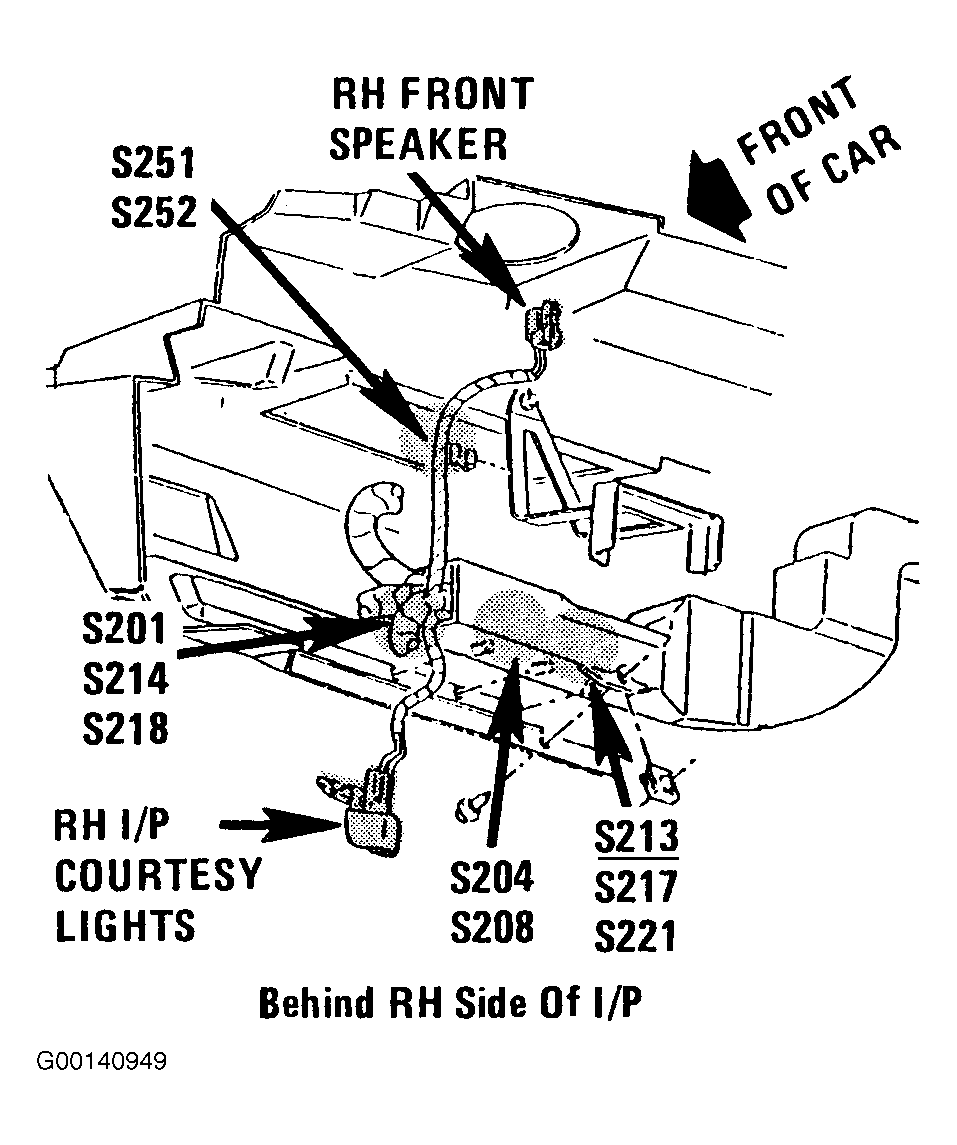

Fig 13: Locating Splice S213
G00140949Courtesy of GENERAL MOTORS CORP.
