Test E: Right Front Window Switch

For test procedure, refer to illustration. See Fig 1 .

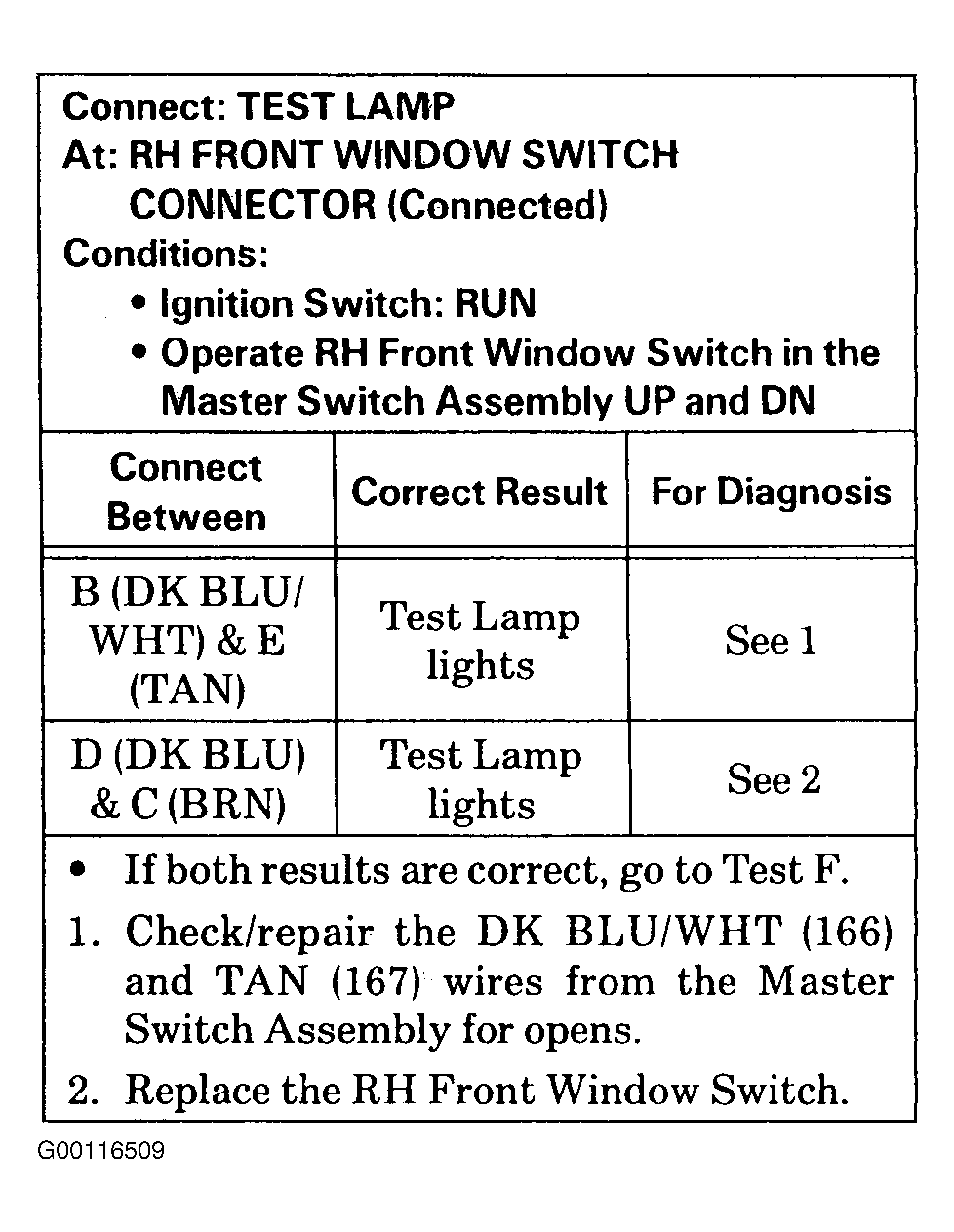

Fig 1: Test E: Right Front Window Switch

G00116509

Courtesy of GENERAL MOTORS CORP.
