Test D: Left Rear Power Window Does Not Operate From Either Switch & Left Front Power Window Operates

For testing procedure, see Fig 1 .

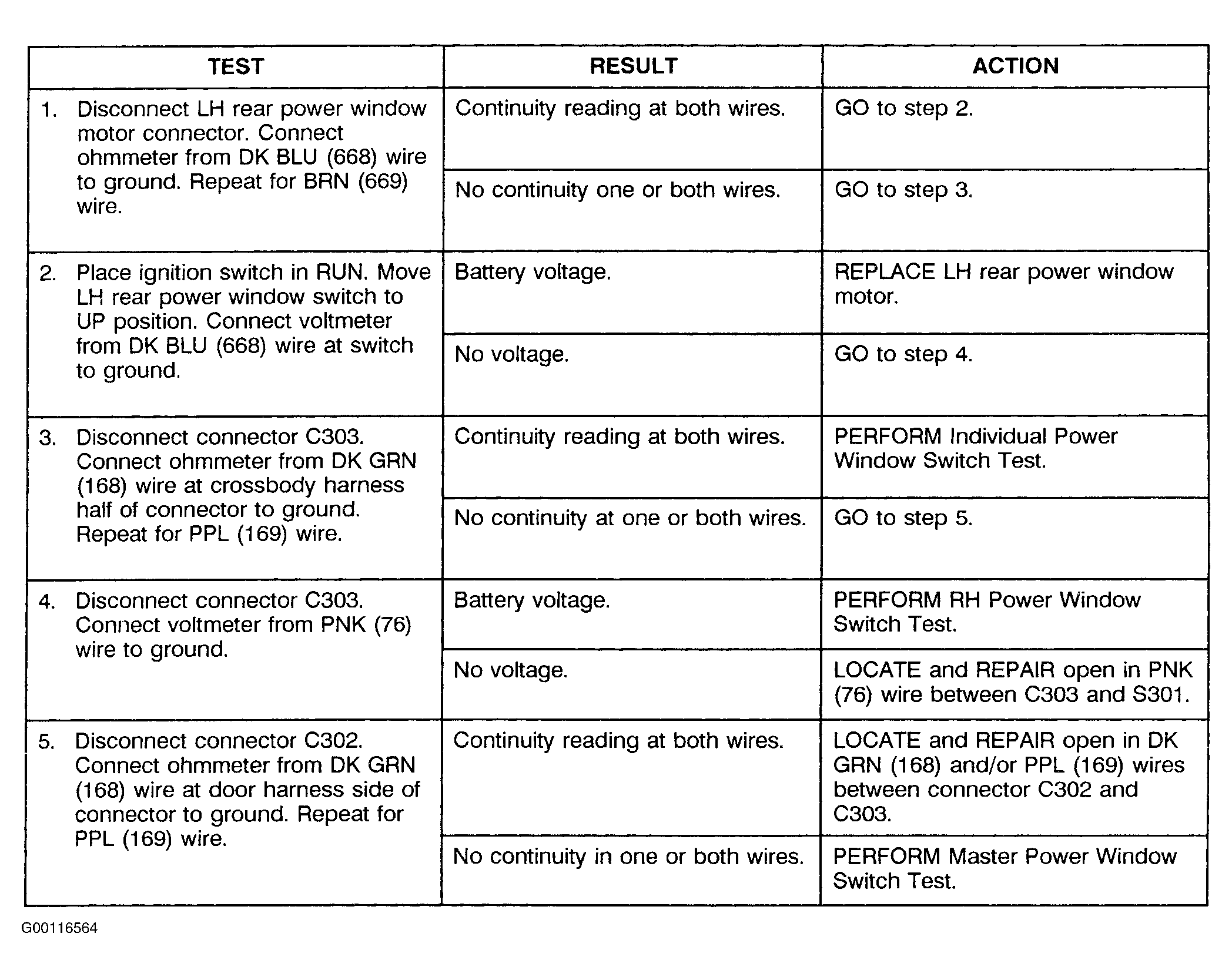

Fig 1: Left Rear Power Window Does Not Operate From Either Switch & Left Front Power Window Operates
G00116564Courtesy of GENERAL MOTORS CORP.
