Chart 1: None Of The Power Windows Operate

For test procedure, refer to illustration. See Fig 1 .

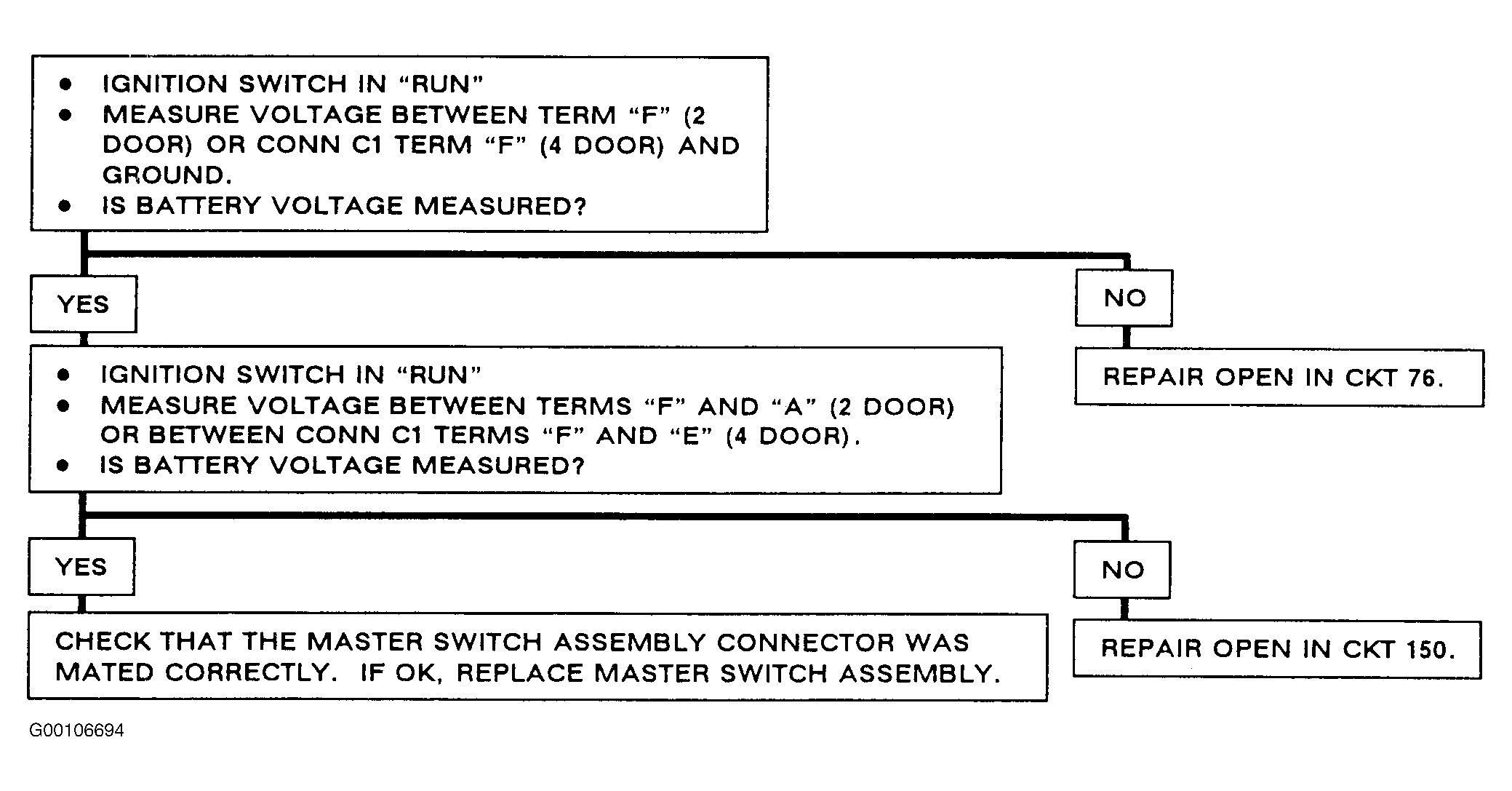

Fig 1: Chart 1: None Of The Power Windows Operate

G00106694

Courtesy of GENERAL MOTORS CORP.
