Window Assembly

NOTE: Numbers in parenthesis correspond to numbers in illustration.
  1. Remove door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Remove water deflector. See WATER DEFLECTOR  under REMOVAL & INSTALLATION.
  3. Loosen regulator bolts (3), adjust as necessary. See Fig 1 . Tighten bolts (3) to 11 N.m (97 INCH lbs.).
  4. Cycle glass to full up an down position to check operation and adjustment of window.

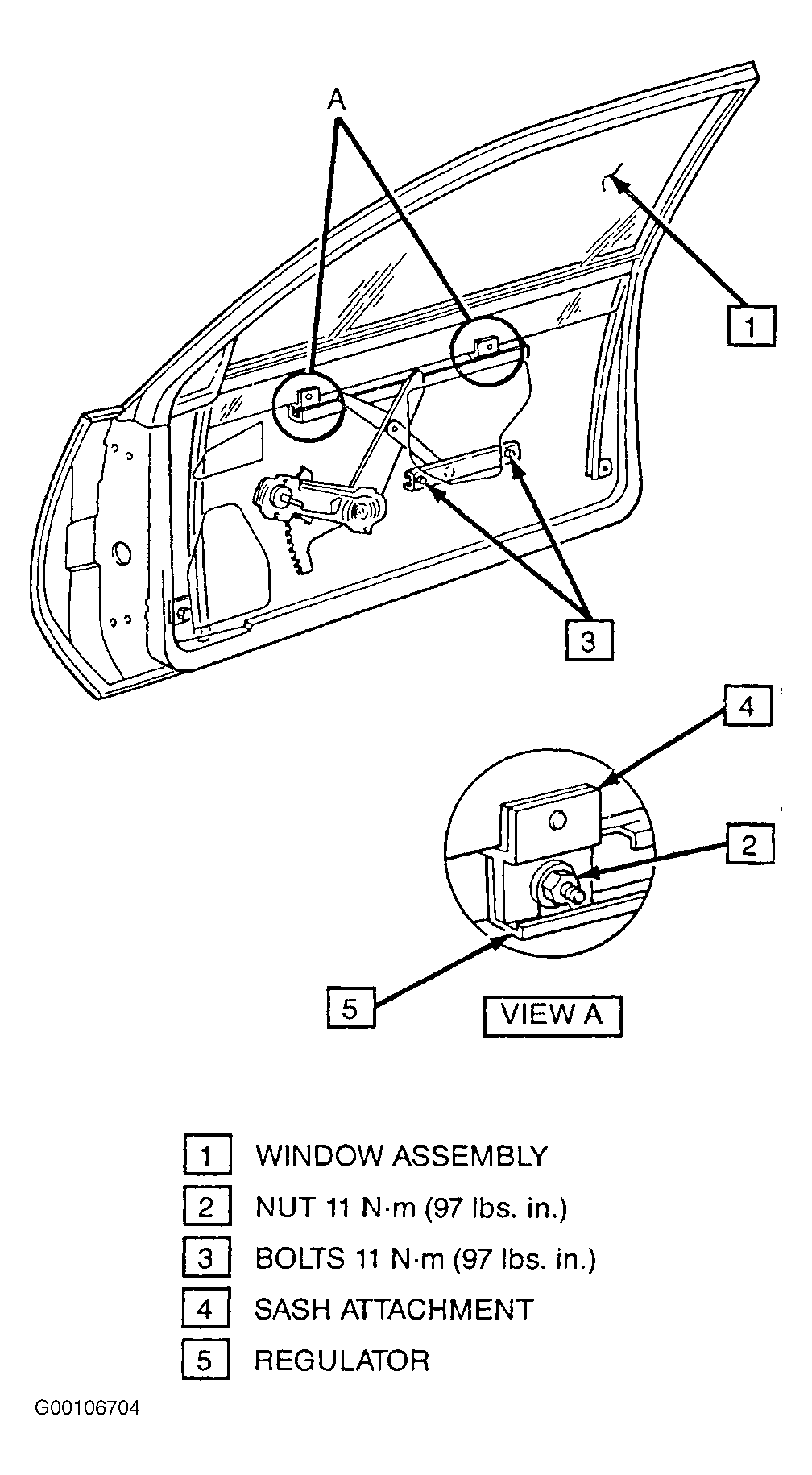

Fig 1: Adjusting Window Assembly
G00106704Courtesy of GENERAL MOTORS CORP.
