Code 41, Cam Sensor Circuit: Intermittents

If connections and harness are okay, connect a digital volt-ohmmeter (10-megohm) between ground and circuit No. 630 terminal at ECM. monitor DVOM while moving related connectors and wiring harness. Voltage reading will change if failure is induced. This may help isolate malfunction.

Fig 1: Code 41, Schematic, Reatta & Riviera, Cam Sensor Circuit

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code 41, Schematic, Toronado & Trofeo, Cam Sensor Circuit

Courtesy of GENERAL MOTORS CORP.

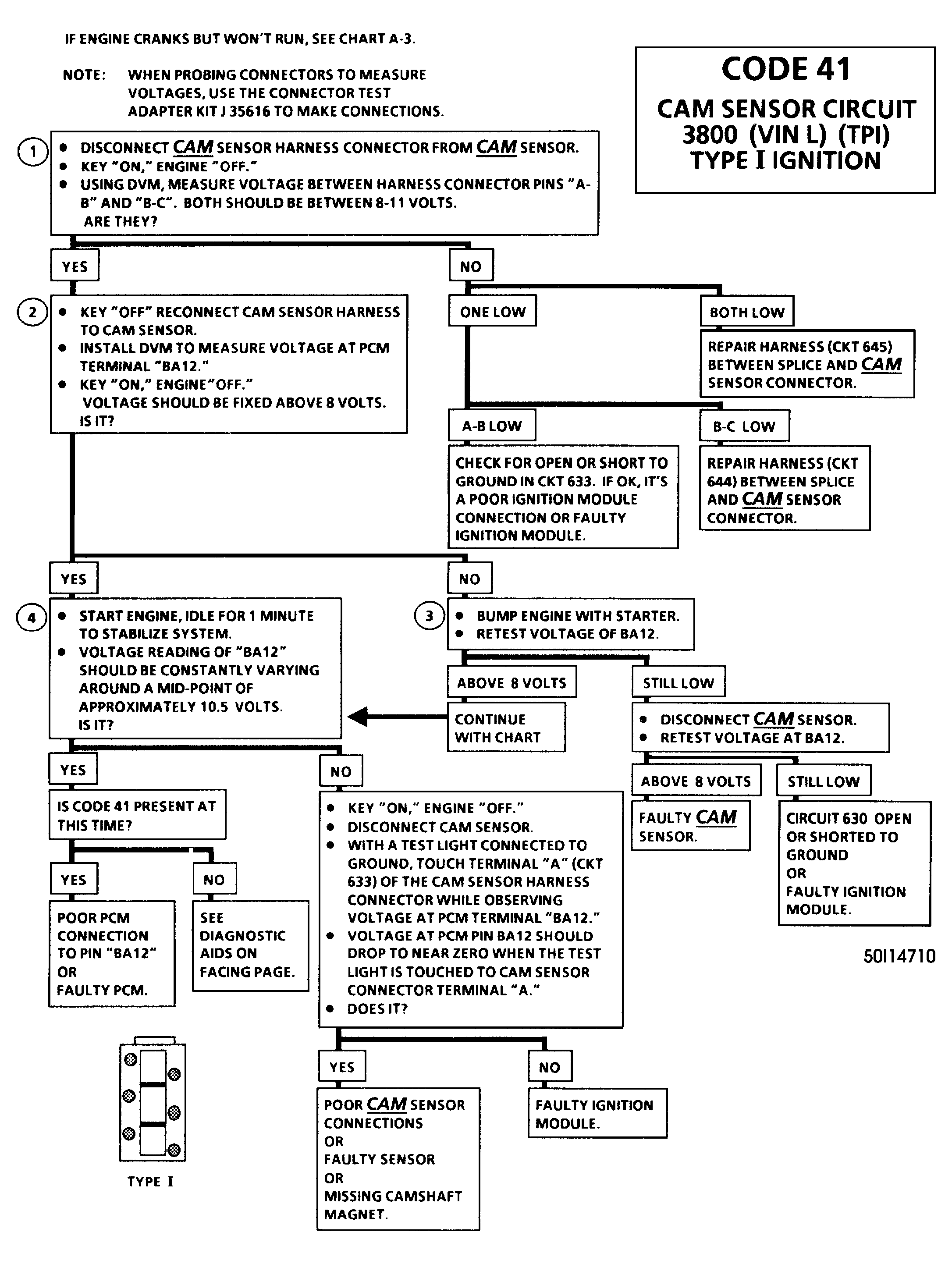

Fig 3: Code 41, Flow Chart, All With Type 1 Ignition

Courtesy of GENERAL MOTORS CORP.

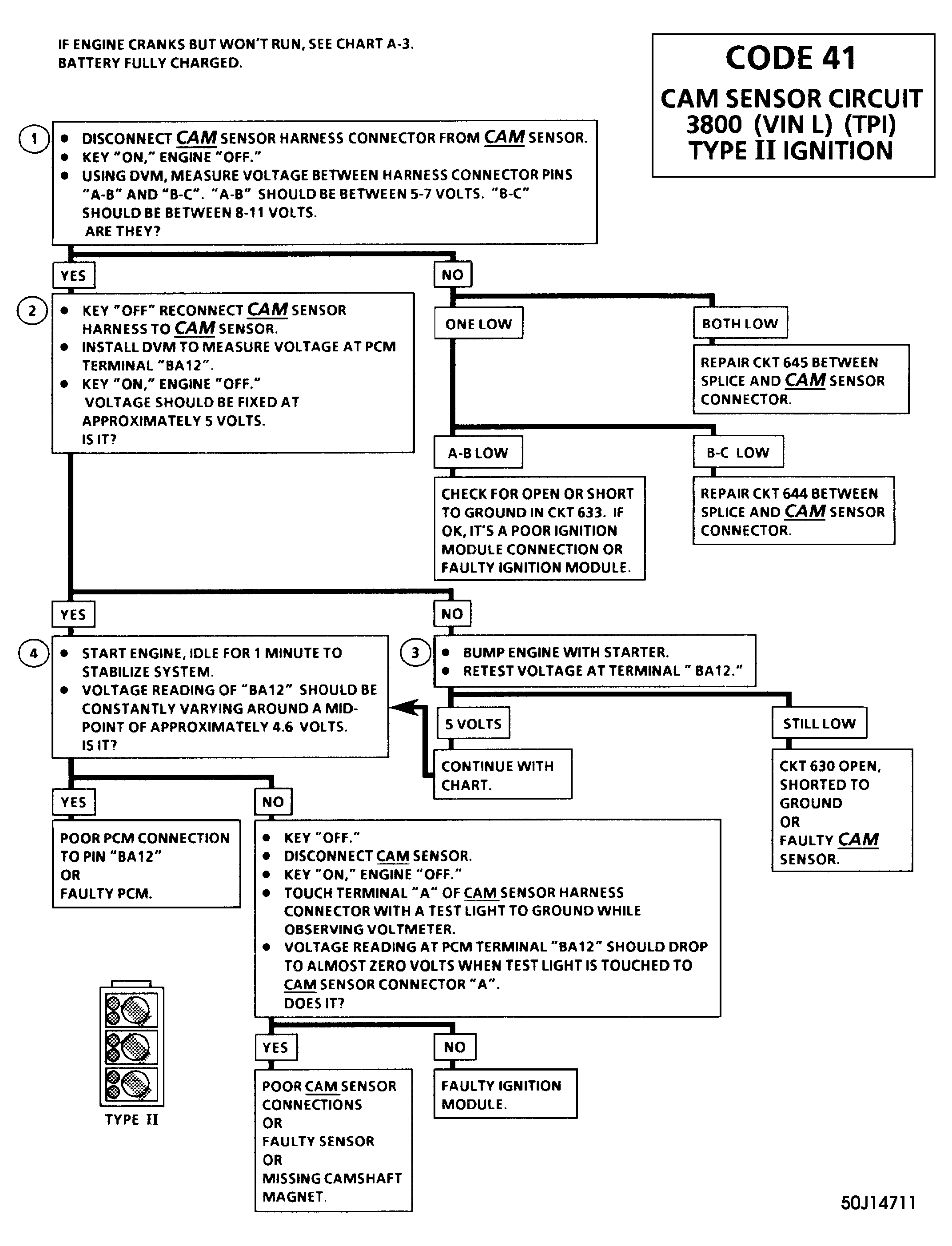

Fig 4: Code 41, Flow Chart, All With Type 2 Ignition

Courtesy of GENERAL MOTORS CORP.
