Test A: Window Power & Ground Test

To Perform test, see Fig 1 .

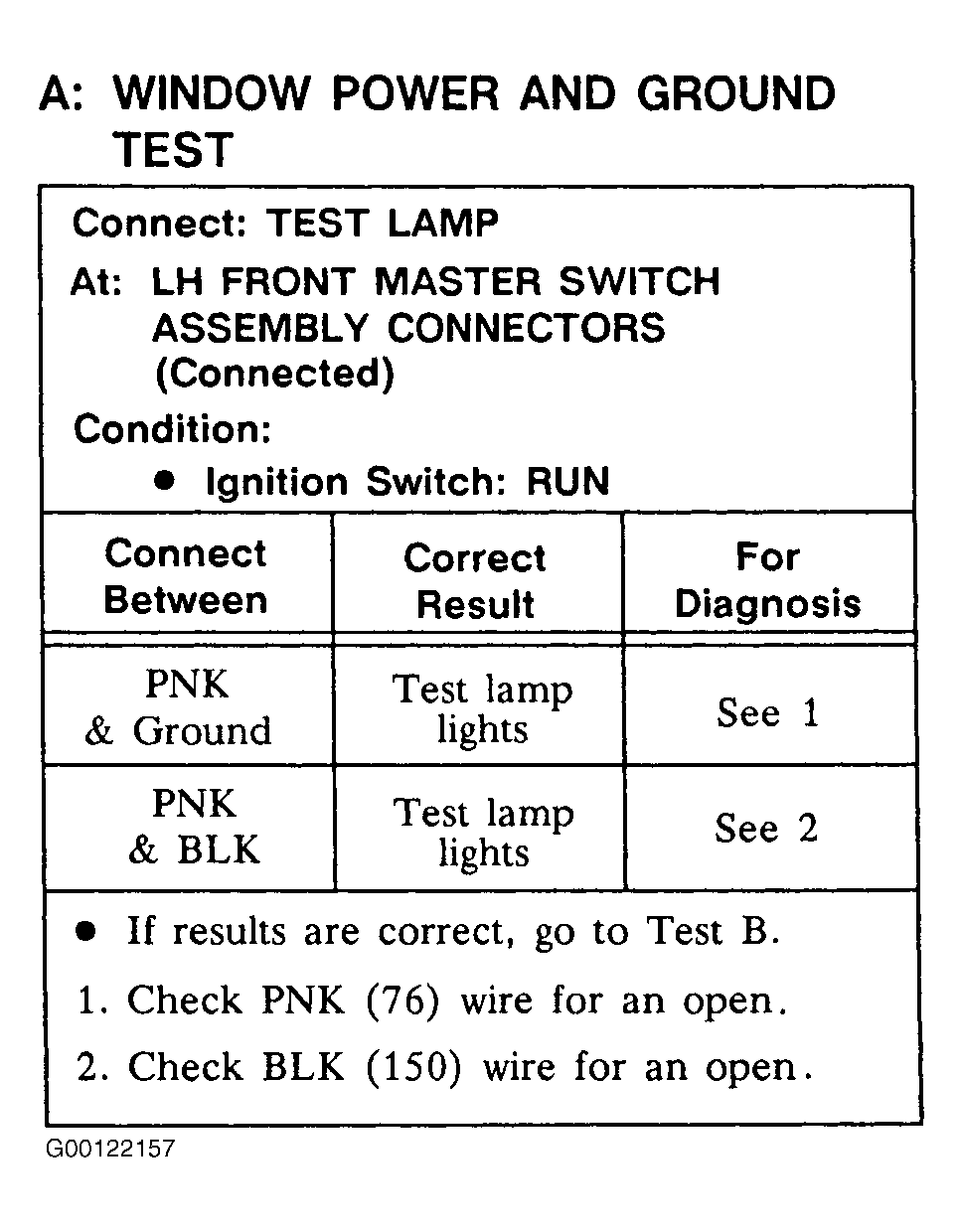

Fig 1: Test A: Window Power & Ground Test

G00122157

Courtesy of GENERAL MOTORS CORP.
