Test D: Rear Window Switch

For test procedure, refer to illustration. See Fig 1 .

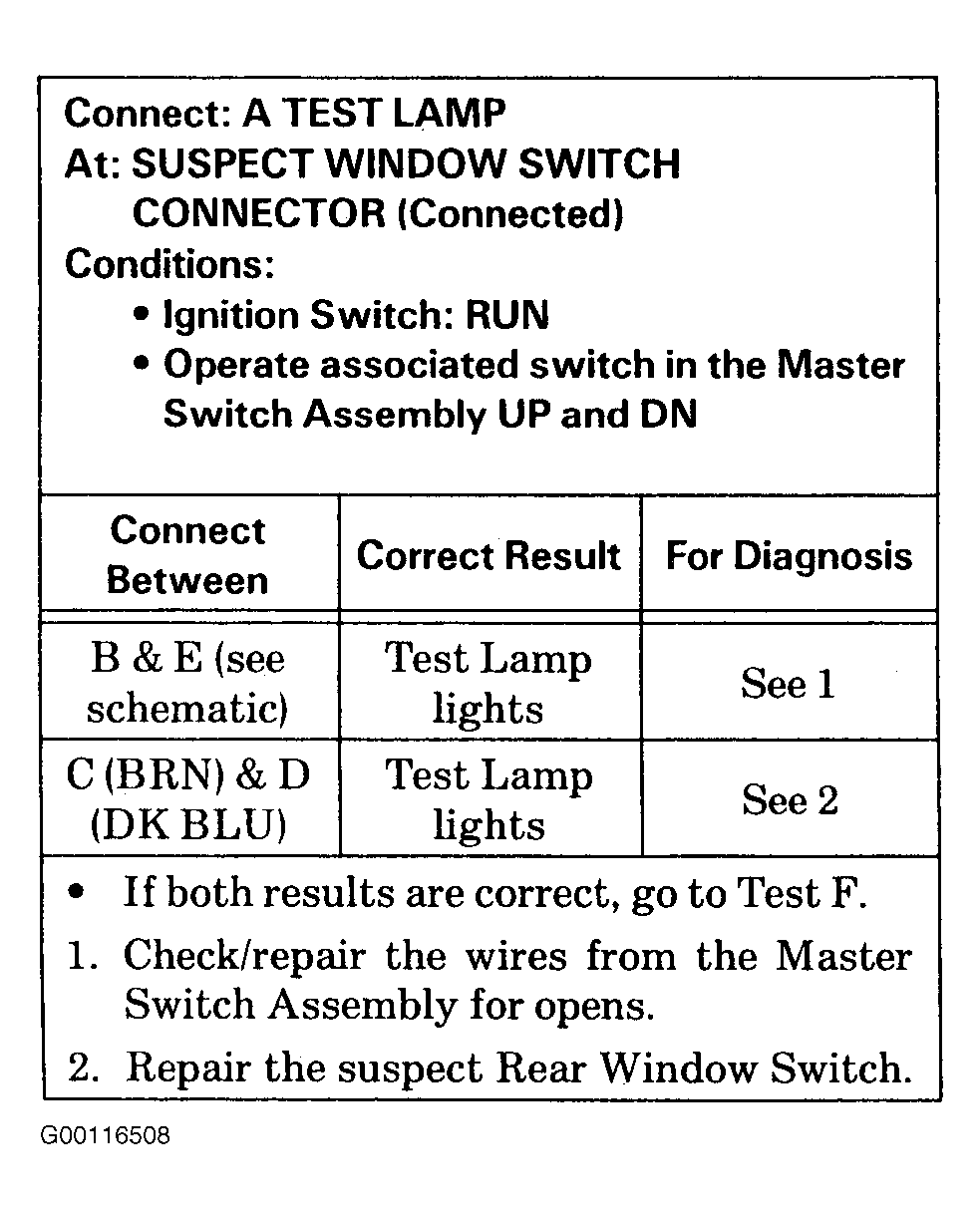

Fig 1: Test D: Rear Window Switch Test

G00116508

Courtesy of GENERAL MOTORS CORP.
