Test B: Master Switch Assembly

For test procedure, refer to illustrations. See Fig 1 or Fig 2 .

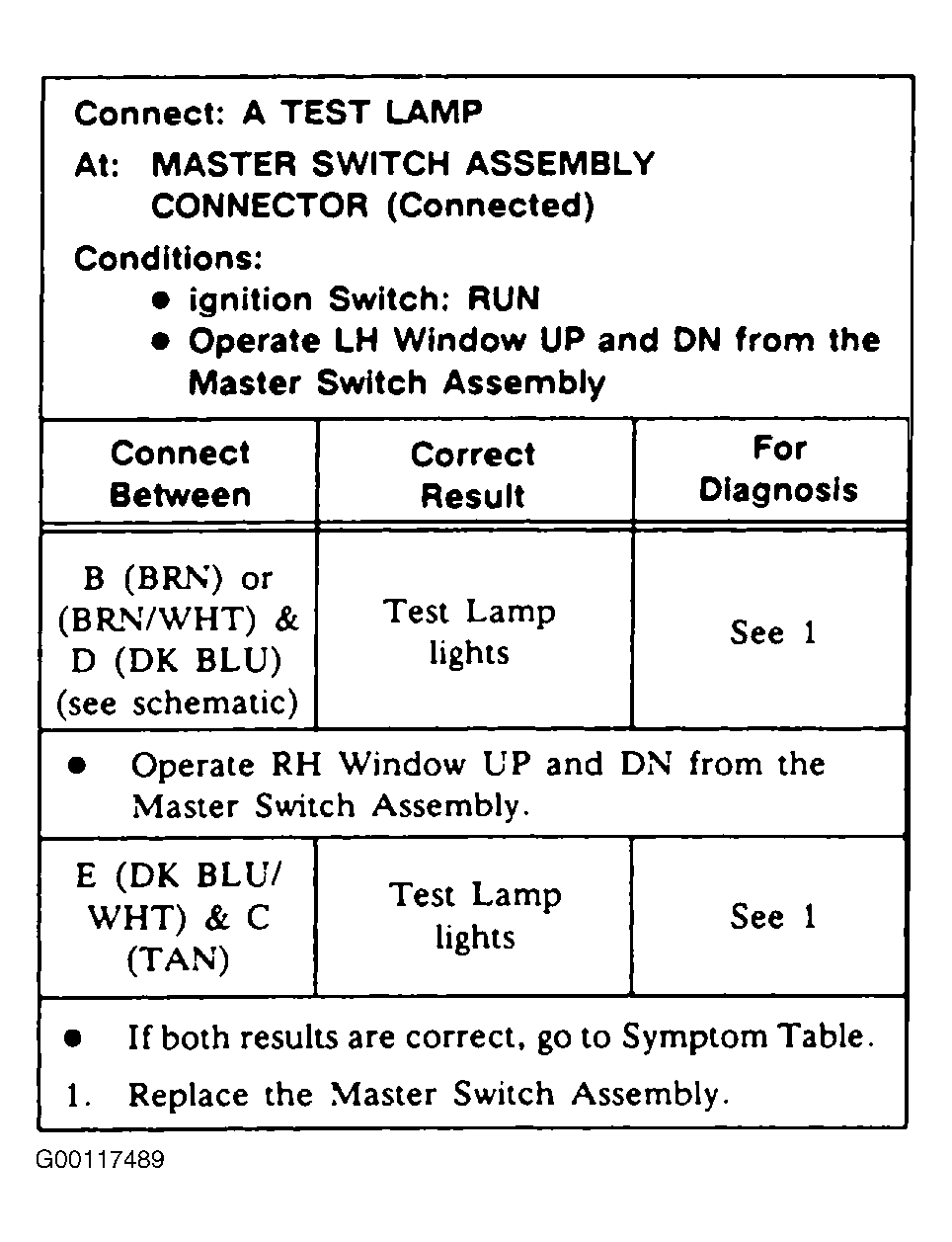

Fig 1: Test B: Master Switch Assembly (2-Door)

Courtesy of GENERAL MOTORS CORP.

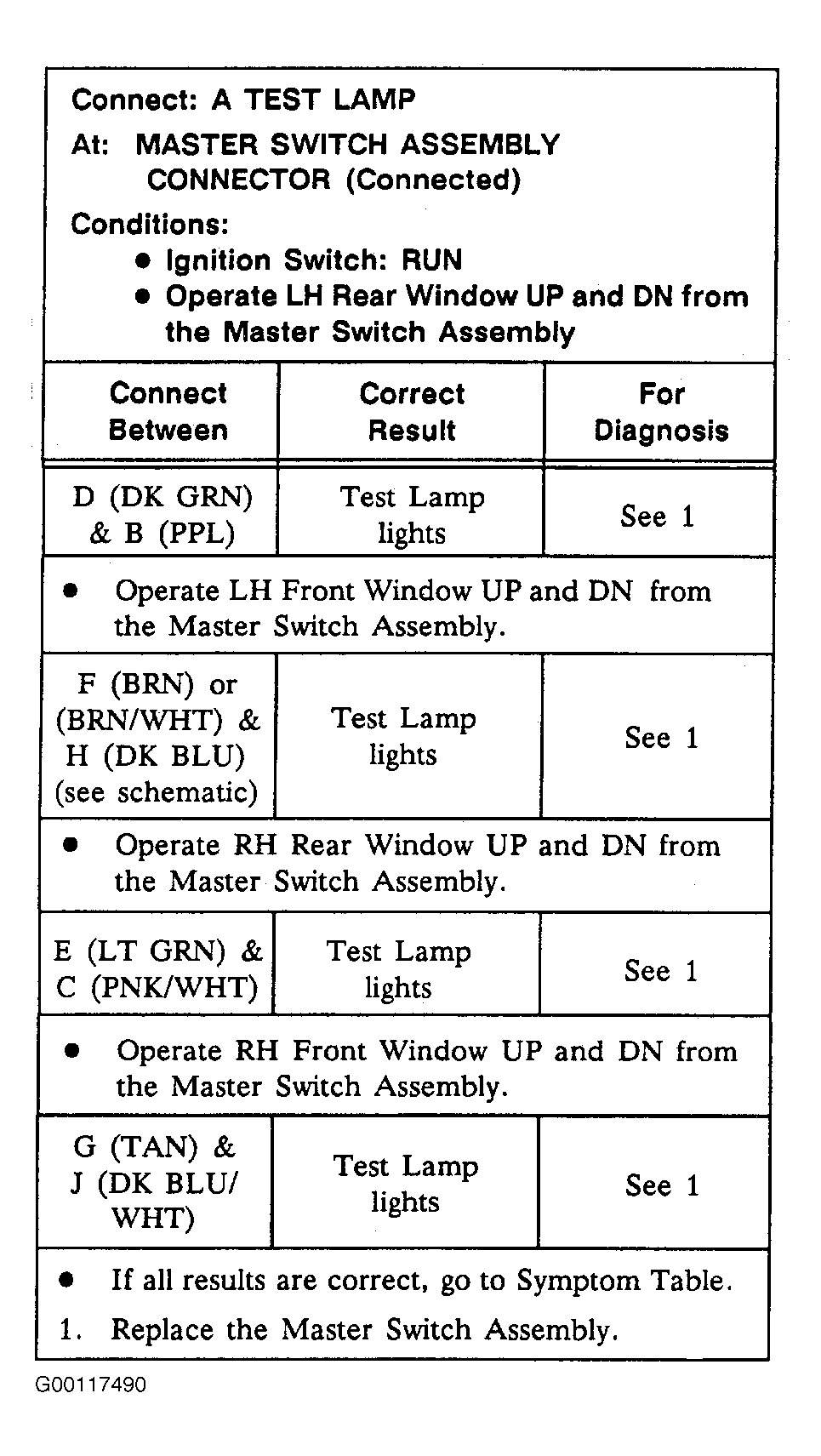

Fig 2: Test B: Master Switch Assembly (4-Door)

Courtesy of GENERAL MOTORS CORP.
