Window Control Module: Installation

  1. Install module (2). See Fig 1 .
  2. Connect wiring connector (4).
  3. Install water deflector. See WATER DEFLECTOR  .
  4. Install trim panel. See DOOR TRIM PANEL  .

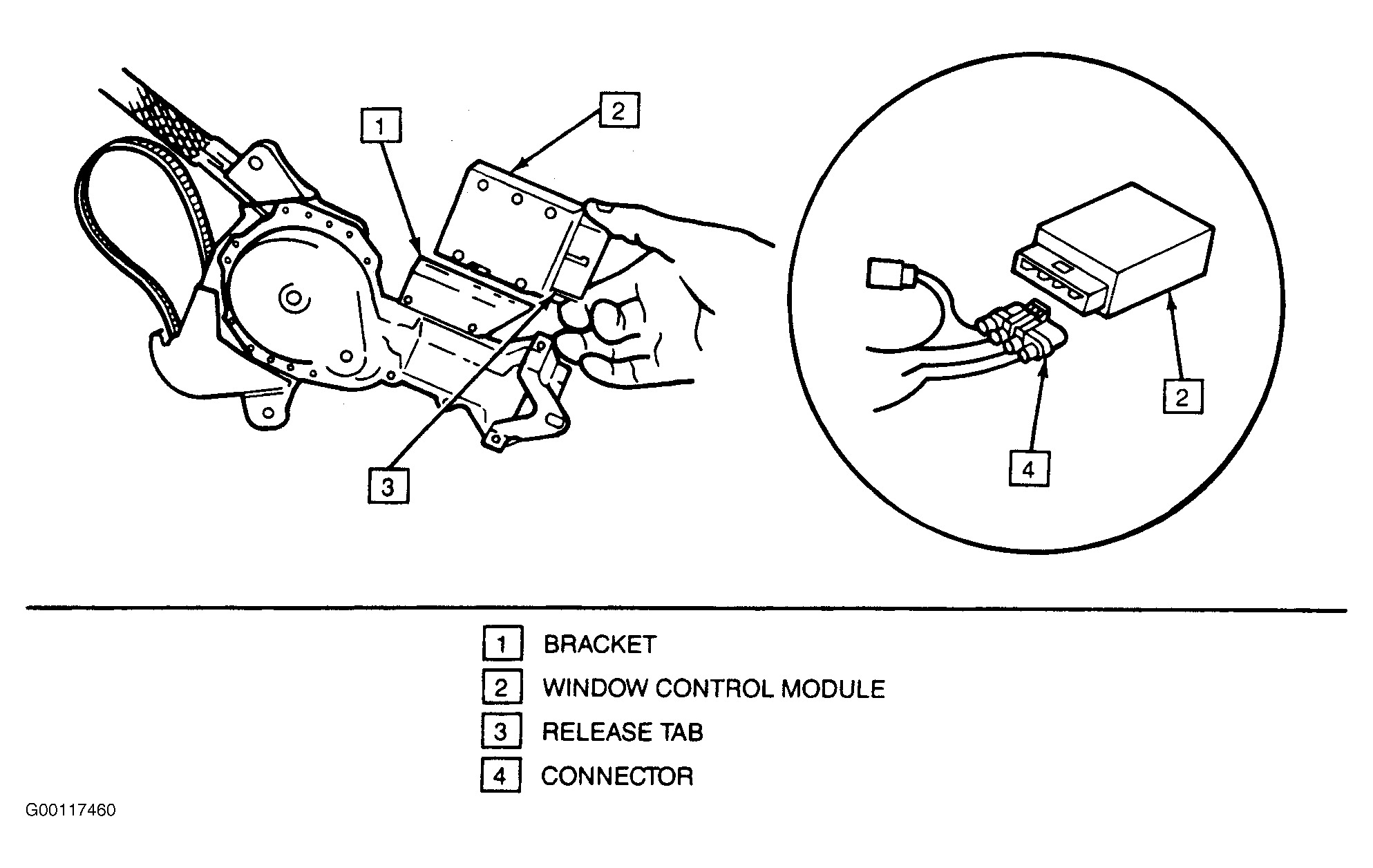

Fig 1: Removing Window Control Module
G00117460Courtesy of GENERAL MOTORS CORP.
