DIS Misfire - 3.1L (VIN T) "W" Body - C4F Chart

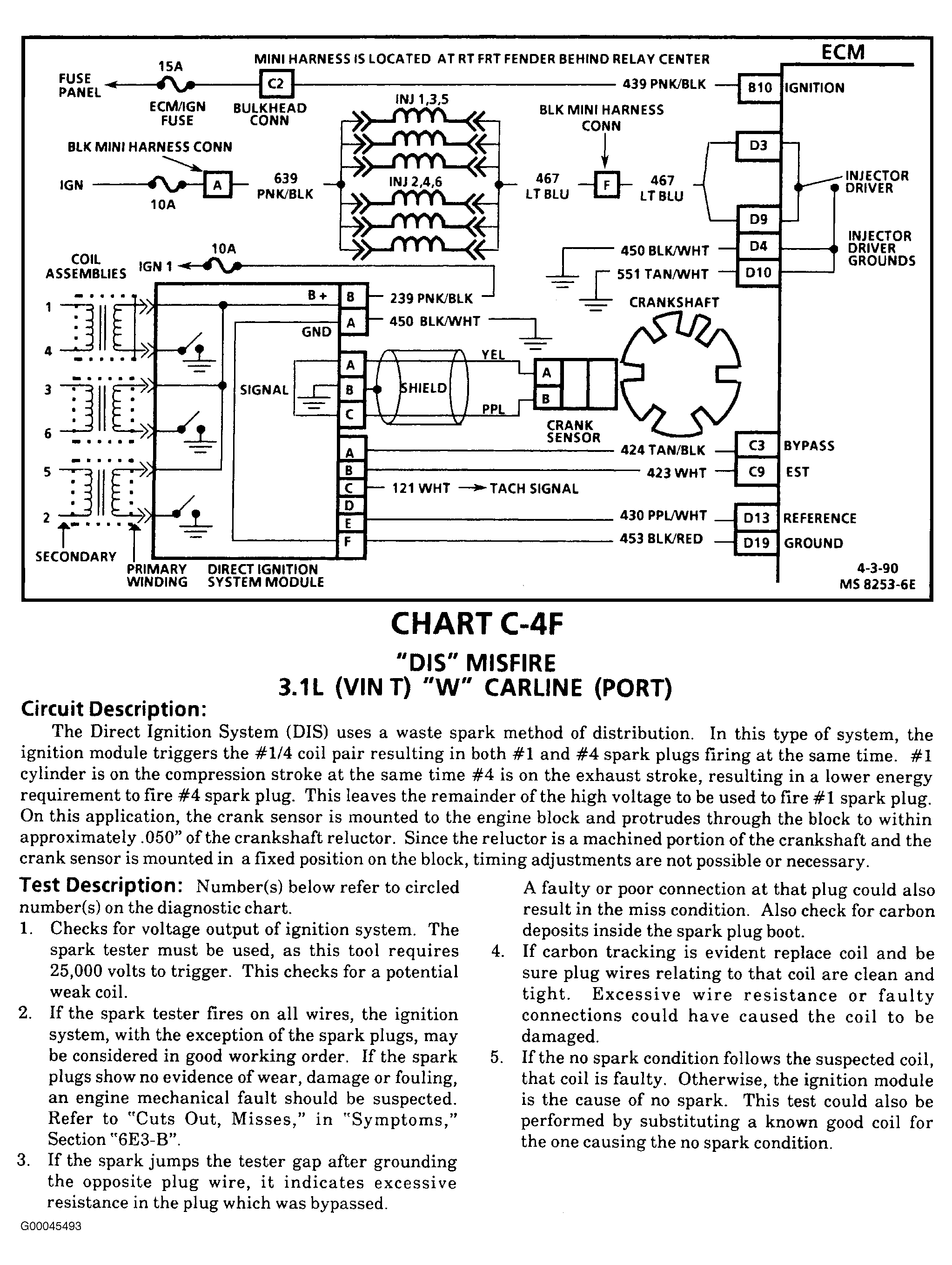

Fig 1: Chart C-4F "DIS" Misfire 3.1L (VIN T) "W" Body (1 Of 2)
G00045493Courtesy of GENERAL MOTORS CORP.

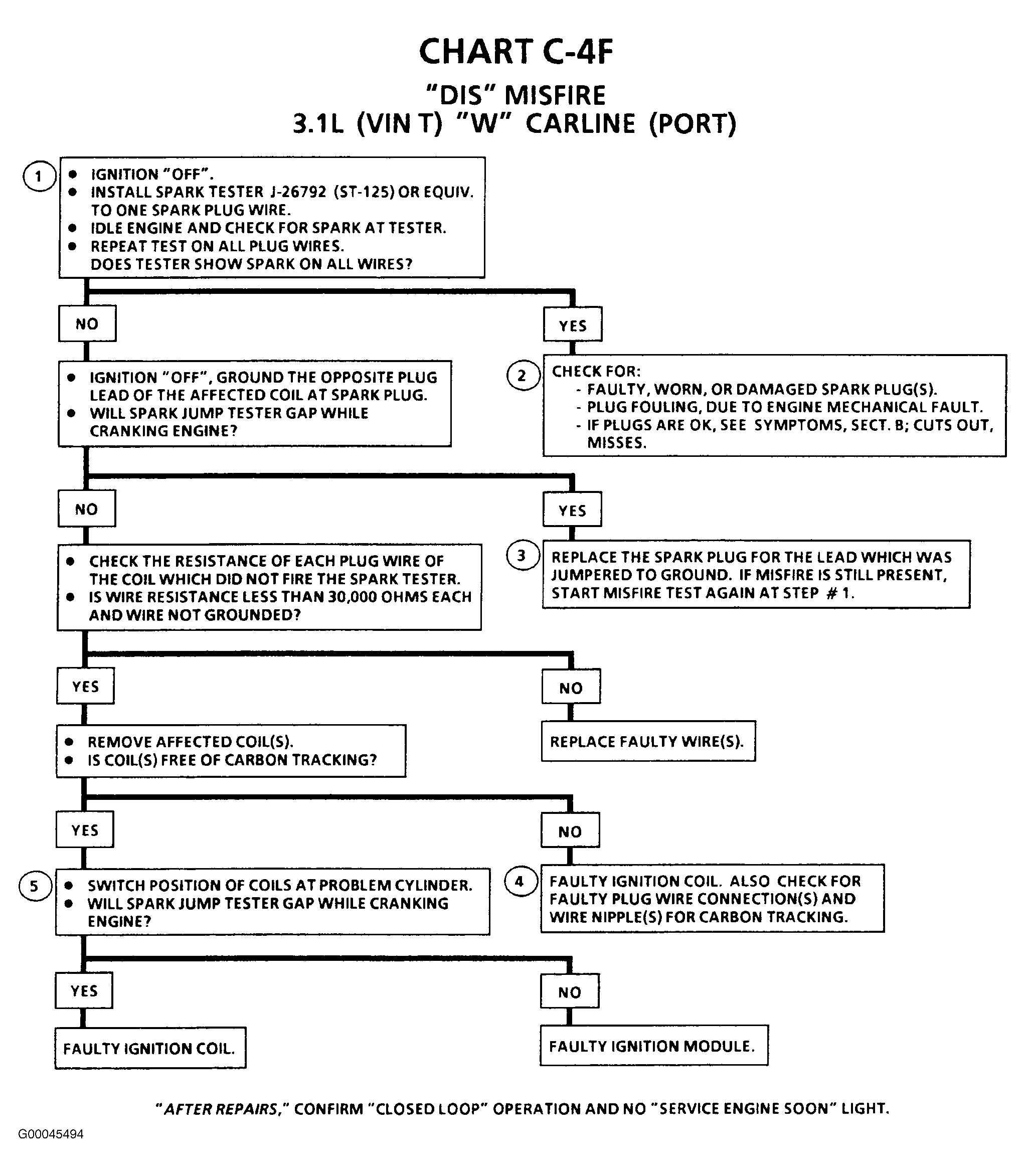

Fig 2: Chart C-4F "DIS" Misfire 3.1L (VIN T) "W" Body (2 Of 2)
G00045494Courtesy of GENERAL MOTORS CORP.
