Home >> Oldsmobile >> 1991 >> Custom Cruiser >> Repair and Diagnosis >> Body & Frame >> Power Seats >> System Tests >> Test A: All Positions Do Not Operate

Test A: All Positions Do Not Operate

To perform this test, refer to illustration. See Fig 1 .

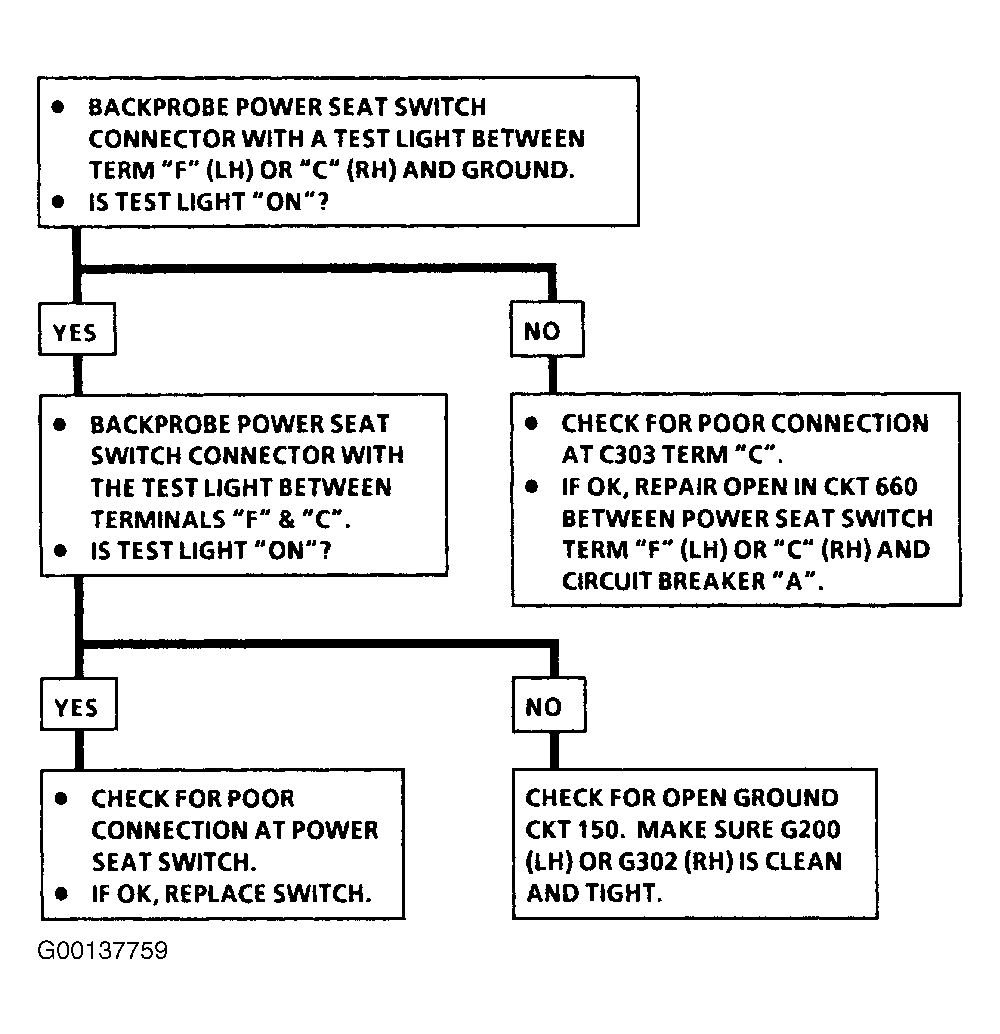

Fig 1: Test A - All Positions Do Not Operate

G00137759

Courtesy of GENERAL MOTORS CORP.
