Wiring Diagrams

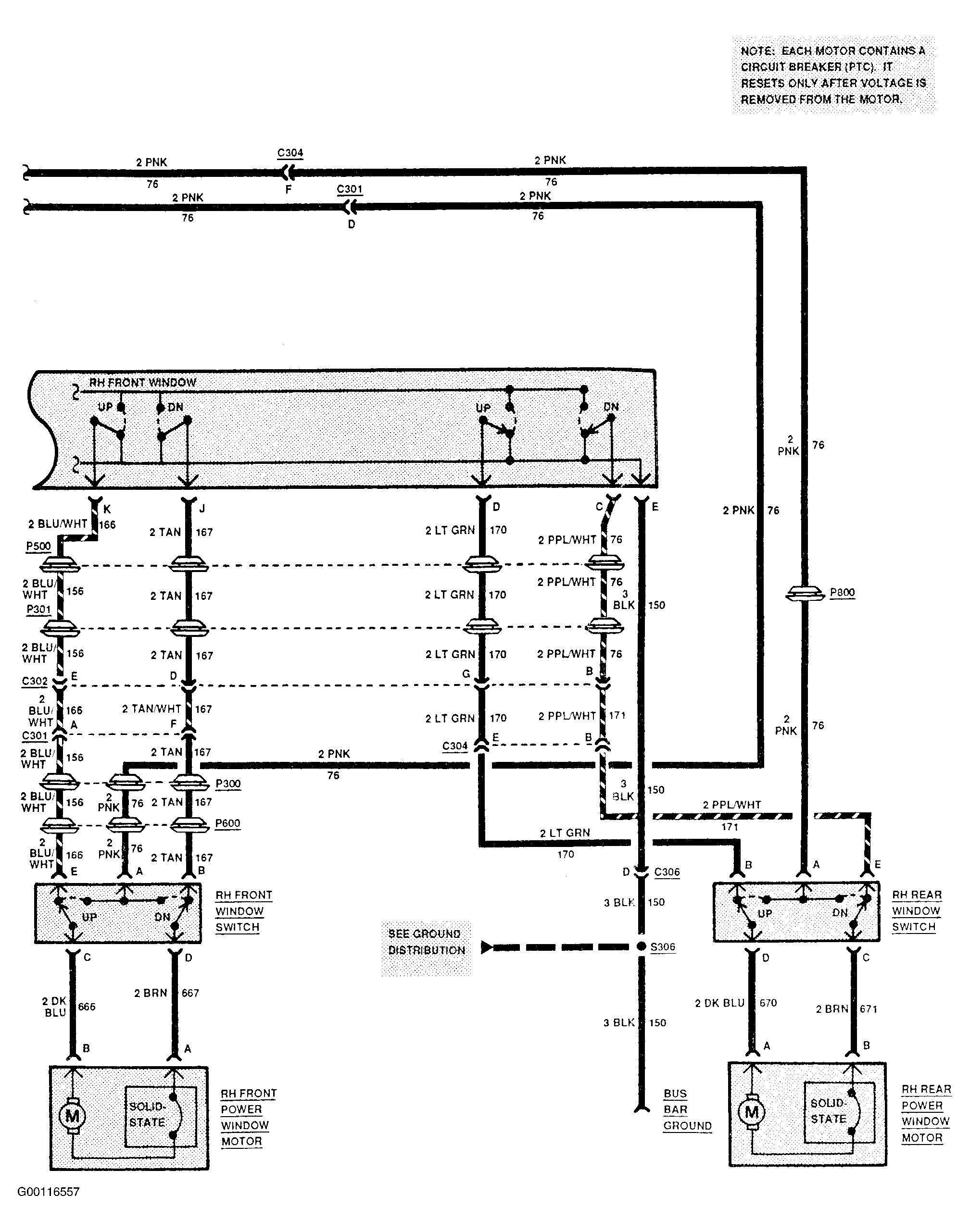

Fig 1: Power Window System Wiring Diagram (1 of 2)

G00116557

Courtesy of GENERAL MOTORS CORP.

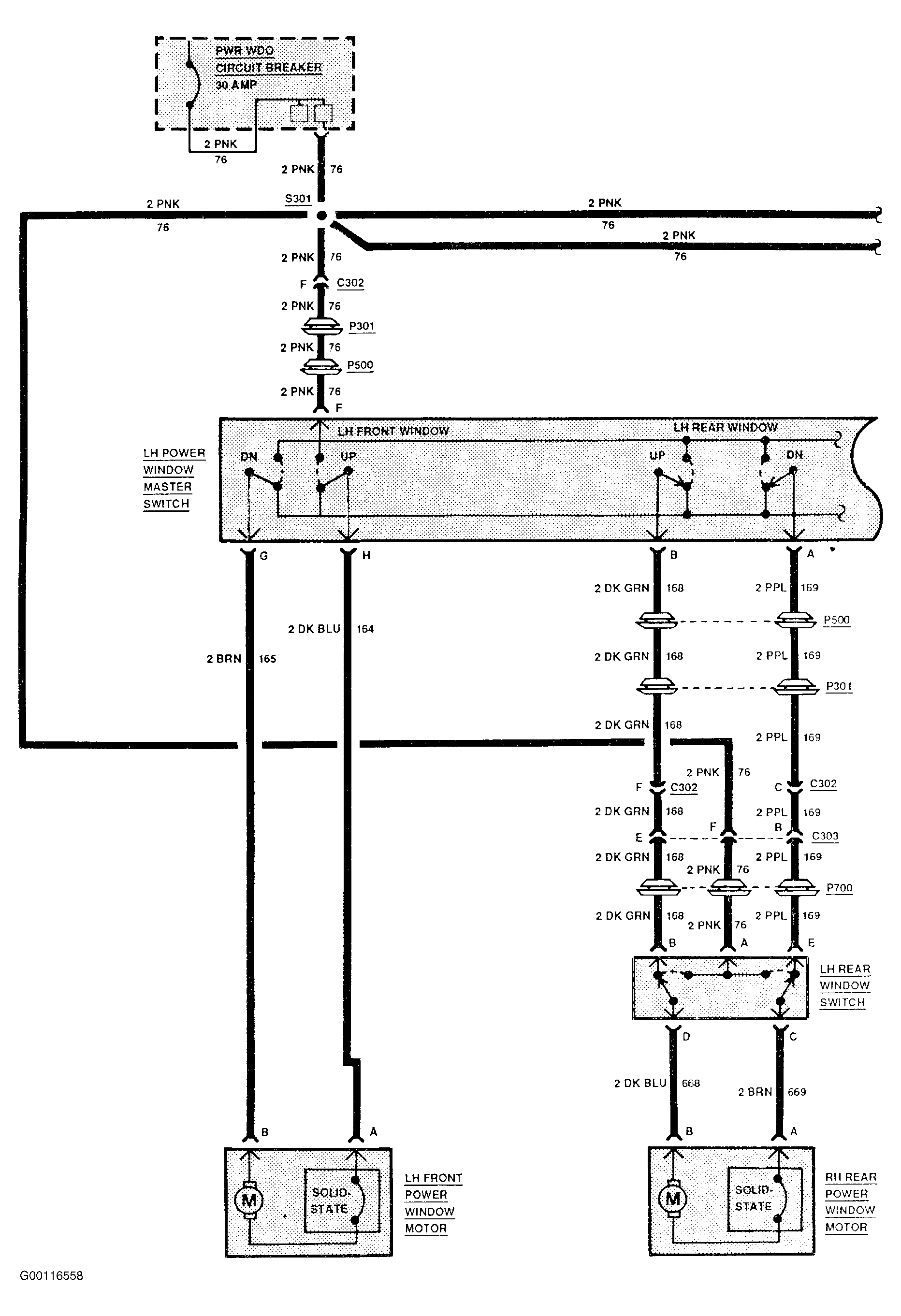

Fig 2: Power Window System Wiring Diagram (2 of 2)

G00116558

Courtesy of GENERAL MOTORS CORP.
