Trim Panel: Installation

  1. Fit trim panel to the door.
  2. Install armrest. See ARMREST  .
  3. Install power window switch.
  4. Install door pillar molding.

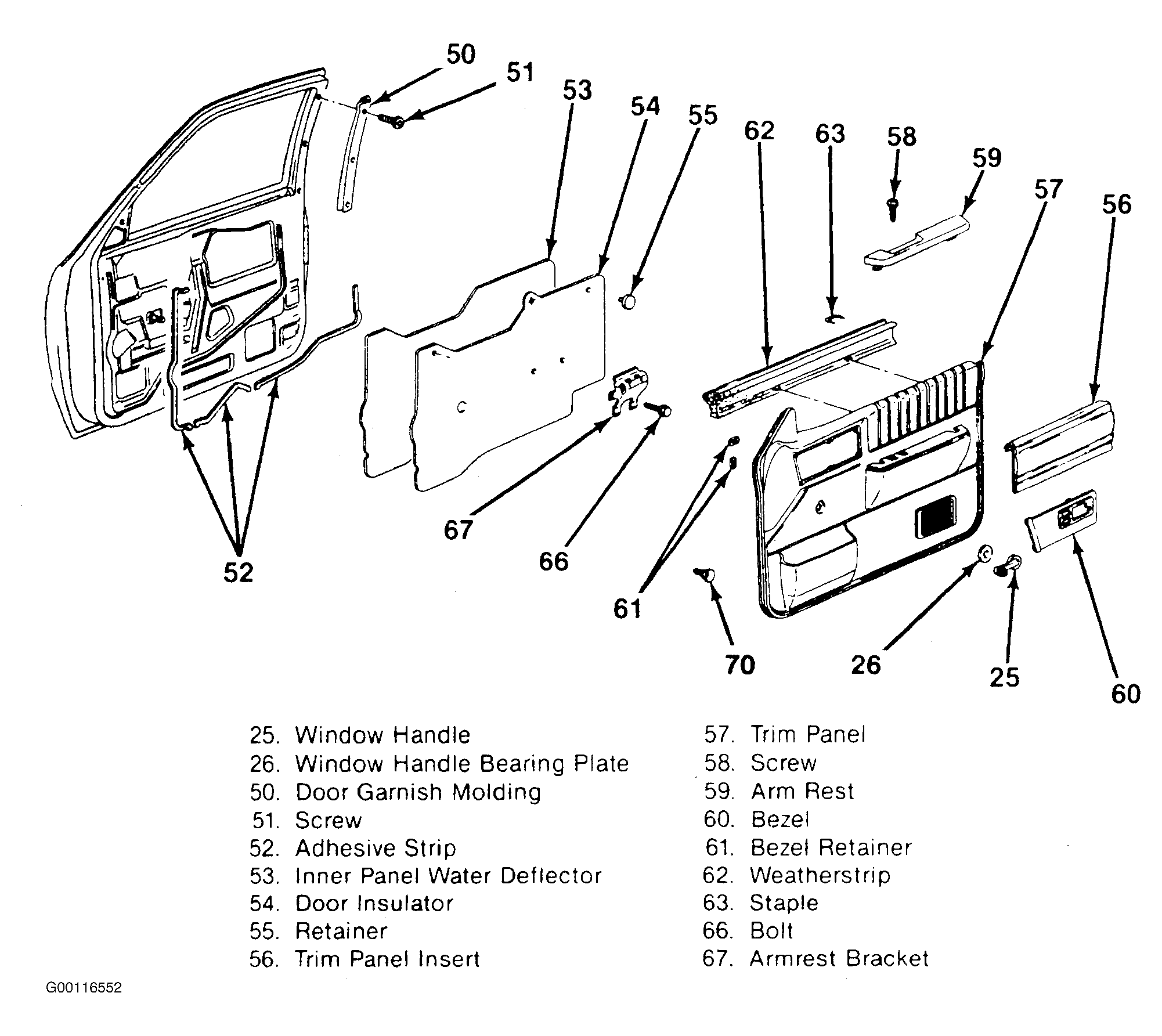

Fig 1: Identifying Front Door Trim Components
G00116552Courtesy of GENERAL MOTORS CORP.

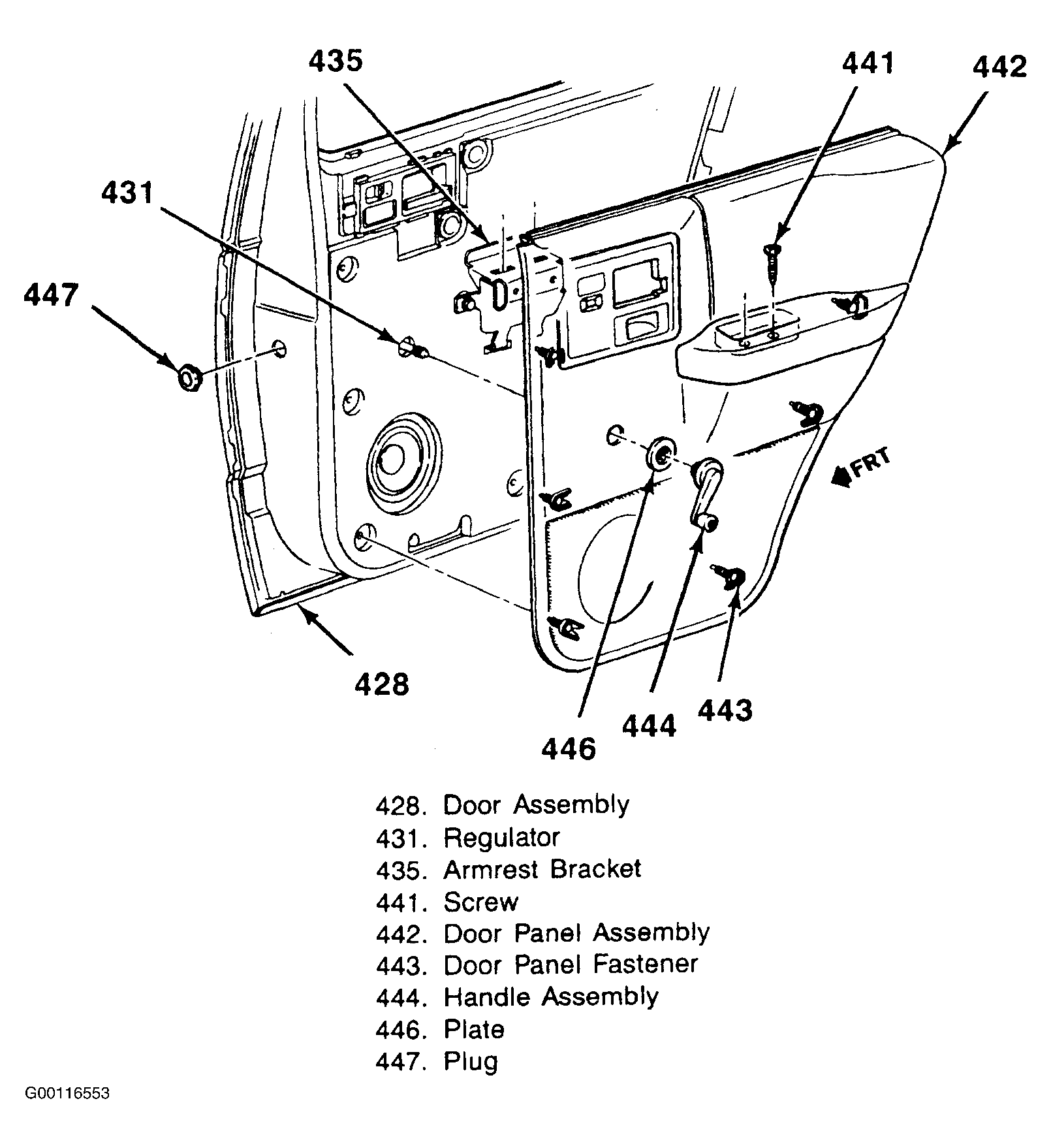

Fig 2: Identifying Rear Door Trim Components
G00116553Courtesy of GENERAL MOTORS CORP.
