Diagnostic Aids

Check circuit No. 496 for a potential open or short to ground. Also check for proper installation of MEM-CAL.

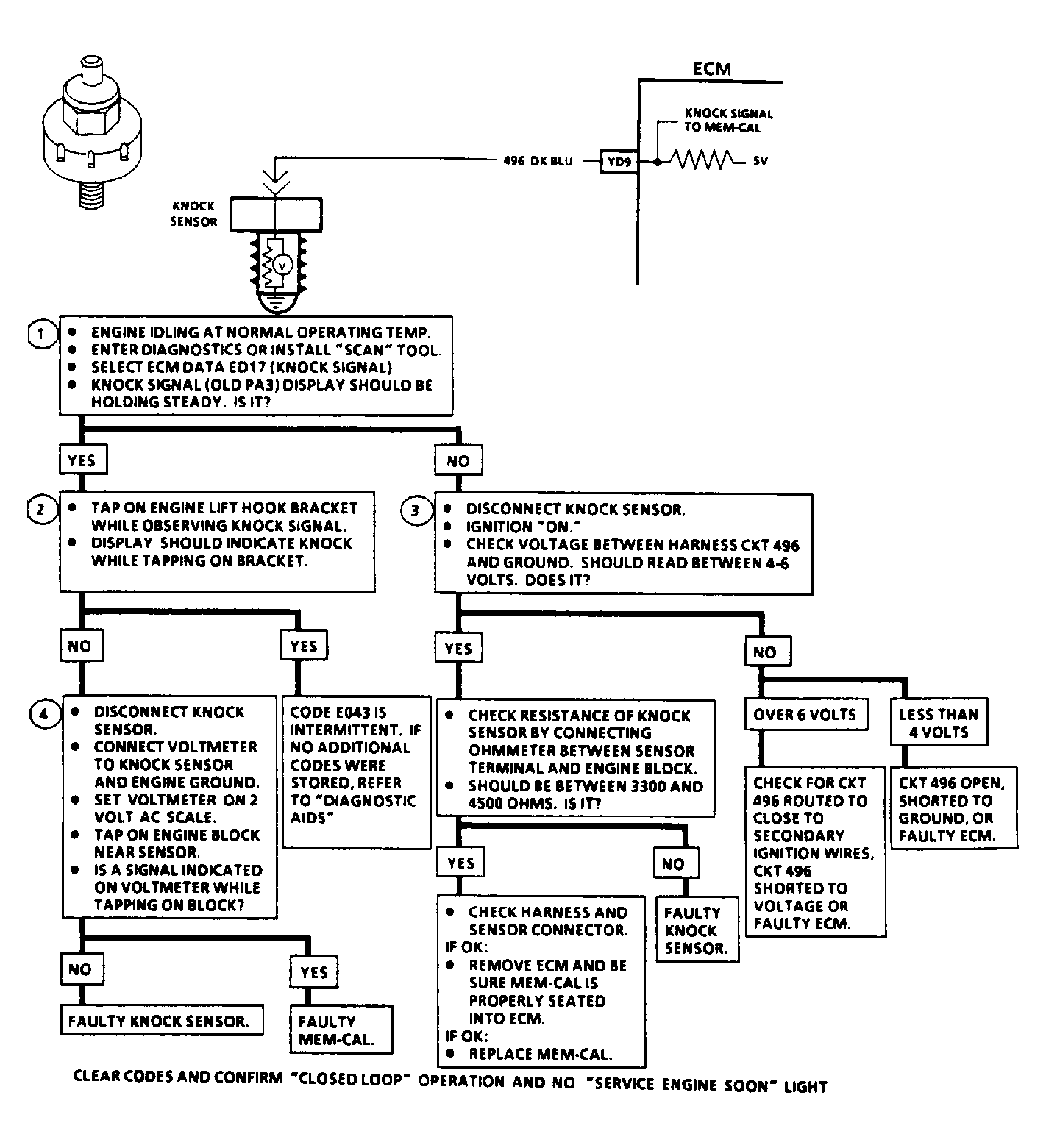

Fig 1: Code E043: Circuit Diagram & Flow Chart ESC Circuit

G90H14354
