Note On Intermittents

If an intermittent code B320 is being set, manipulate related wiring in output function and watch for relays to cycle.

Fig 1: Code B420 (C): Circuit Diagram
G90A17293

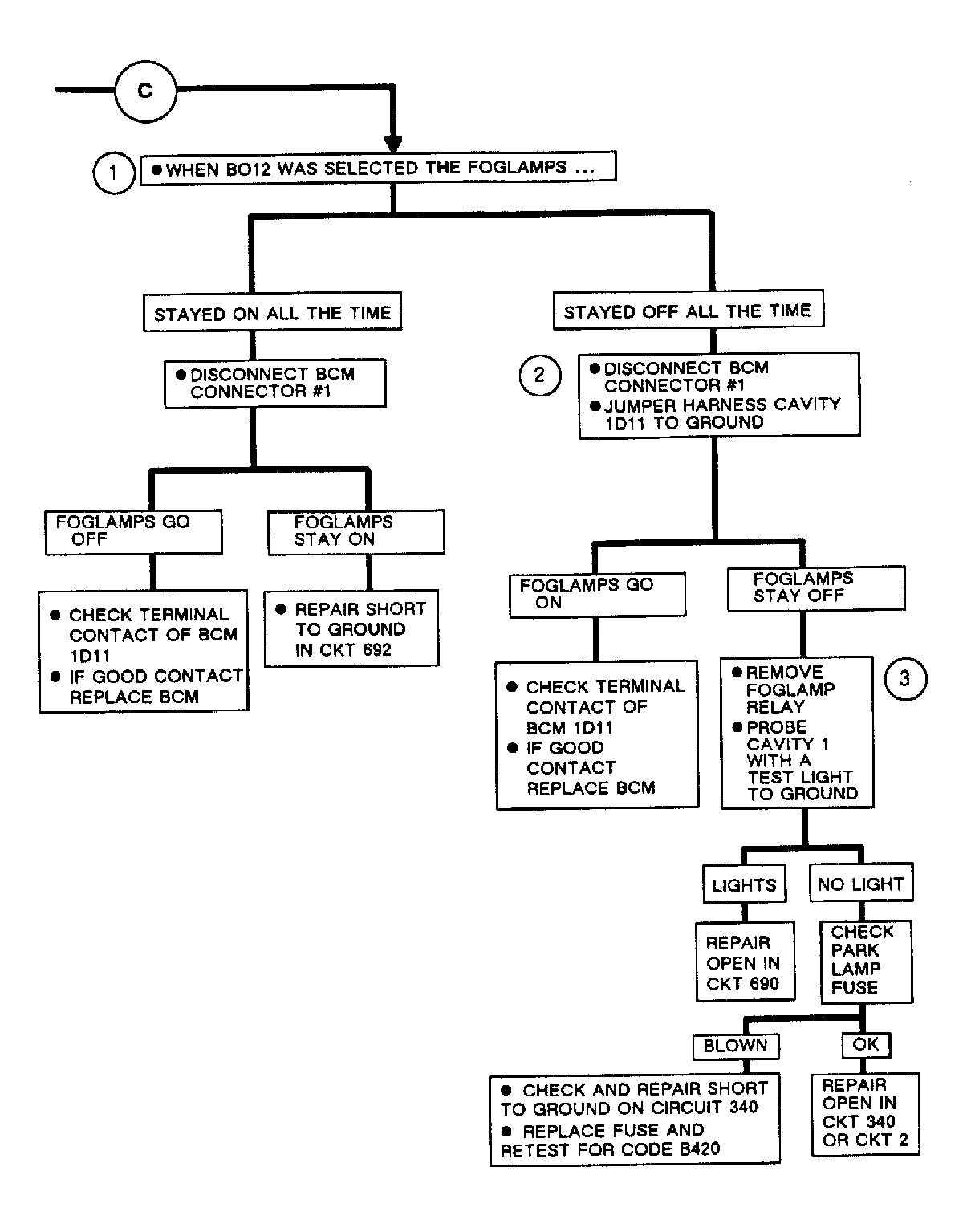

Fig 2: Code B420 (C): Flow Chart Fog Light Relay Circuit
G90C14391
