Note On Intermittents

If an intermittent Code B420 is being set. Manipulate related wiring in output function and watch for relays to cycle.

Fig 1: Code B420 (B): Circuit Diagram
G90A17293

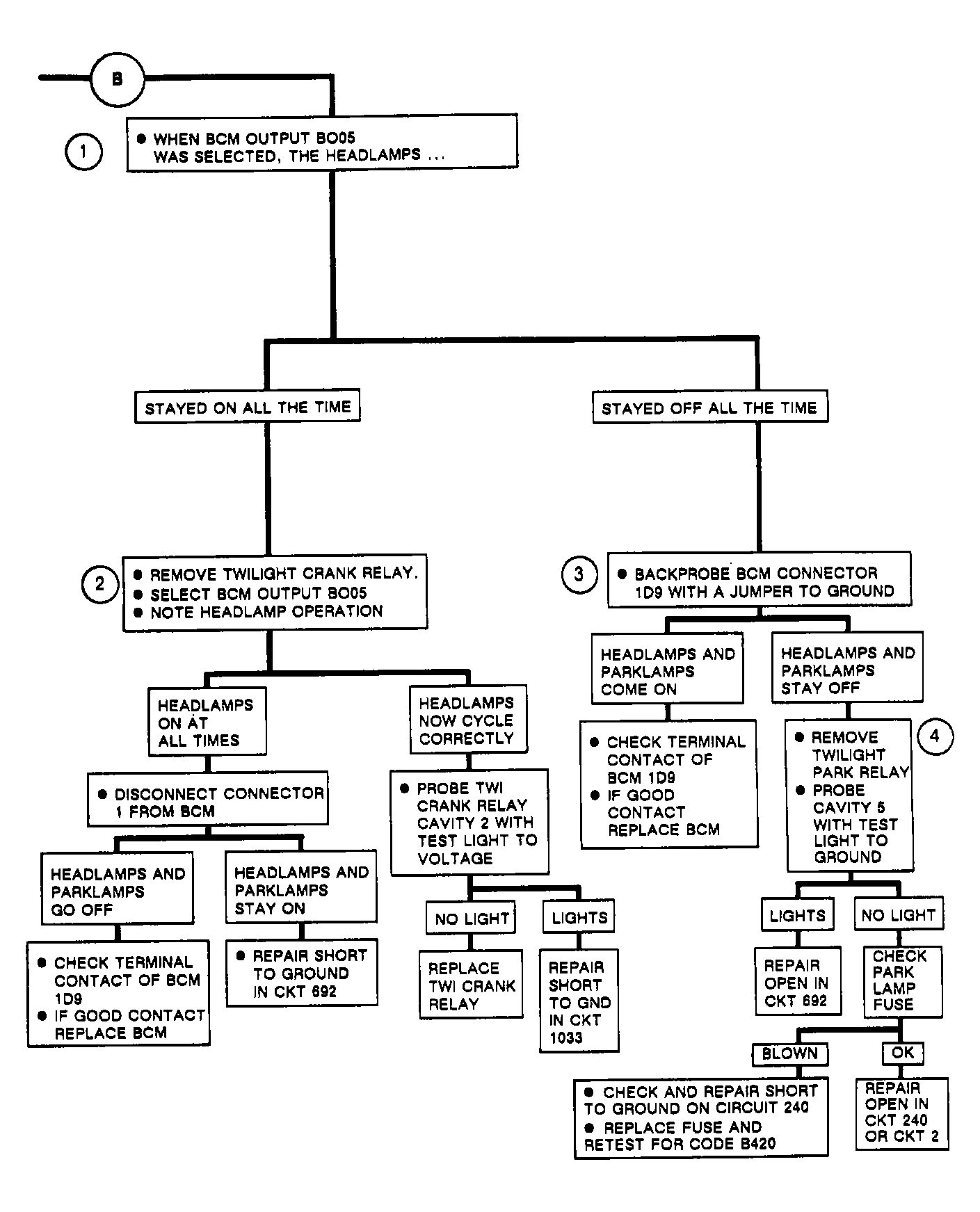

Fig 2: Code B420 (B): Flow Chart Twilight Relay Circuit
G90B14390
