Park Brake On Message

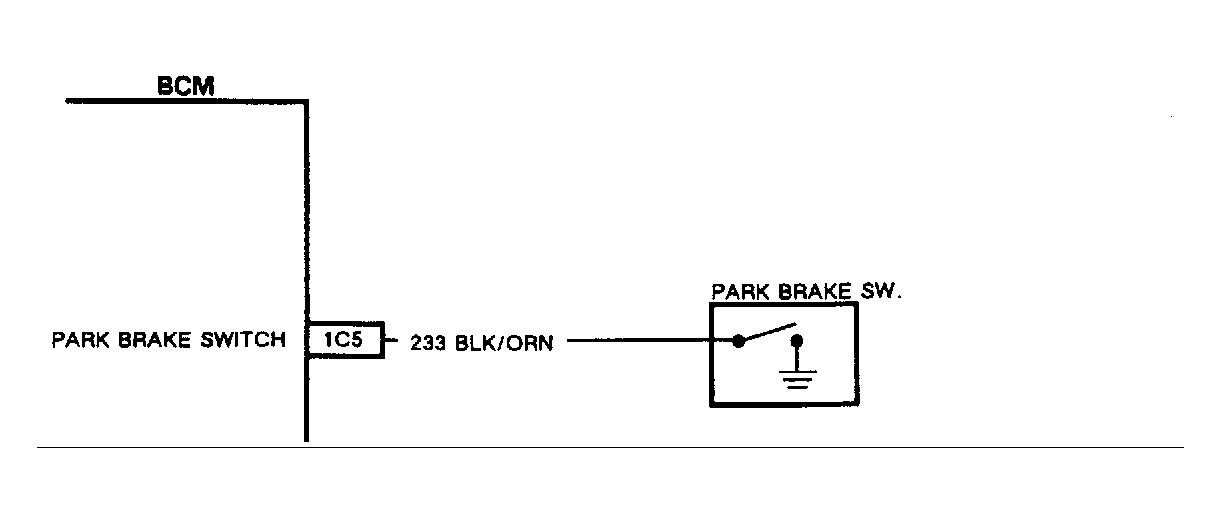

The BCM supplies and monitors voltage from parking brake switch at terminal 1C5. When parking brake is pulled, switch is closed (grounded). BCM senses voltage being pulled low and illuminates PARK BRAKE ON message. BCM will display message under the following failure conditions:
- Park brake is applied (switch is closed)
- Ignition is on
- Transmission not in Park or Neutral
