Fuel Pump Volume Check

  1. Test fuel pump volume by connecting hose from TBI fuel feed line to a suitable unbreakable container. See Fig 1. Apply battery voltage to the fuel pump test terminal. See Figure for test terminal location.
  2. Verify the volume is within specifications. See FUEL PUMP PRESSURE/VOLUME SPECIFICATIONS TABLE.
FUEL PUMP PRESSURE/VOLUME SPECIFICATIONS (1)

Application Specification
Pressure 9.0-13.0 PSI (.63-.91 kg/cm2 )
Volume .5 Pint (.25L) in 15 Seconds
(1) Specifications are valid at any engine speed or load.
Fig 1: Fuel Feed/Return Line ID (2.5L VIN U)
G50B14366Courtesy of GENERAL MOTORS CORP.

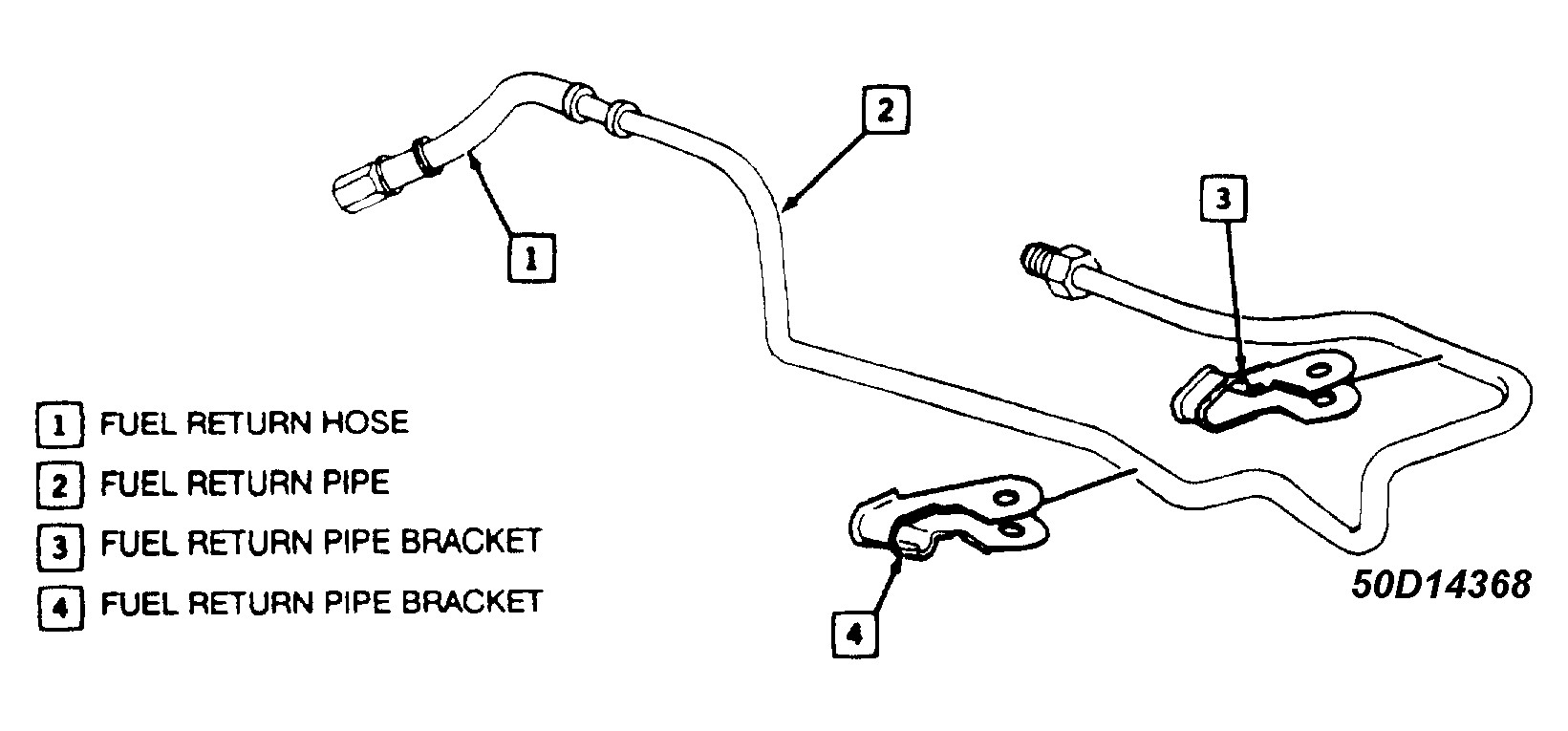

Fig 2: Fuel Return Line Close-Up (2.5L VIN U)
G50D14368Courtesy of GENERAL MOTORS CORP.

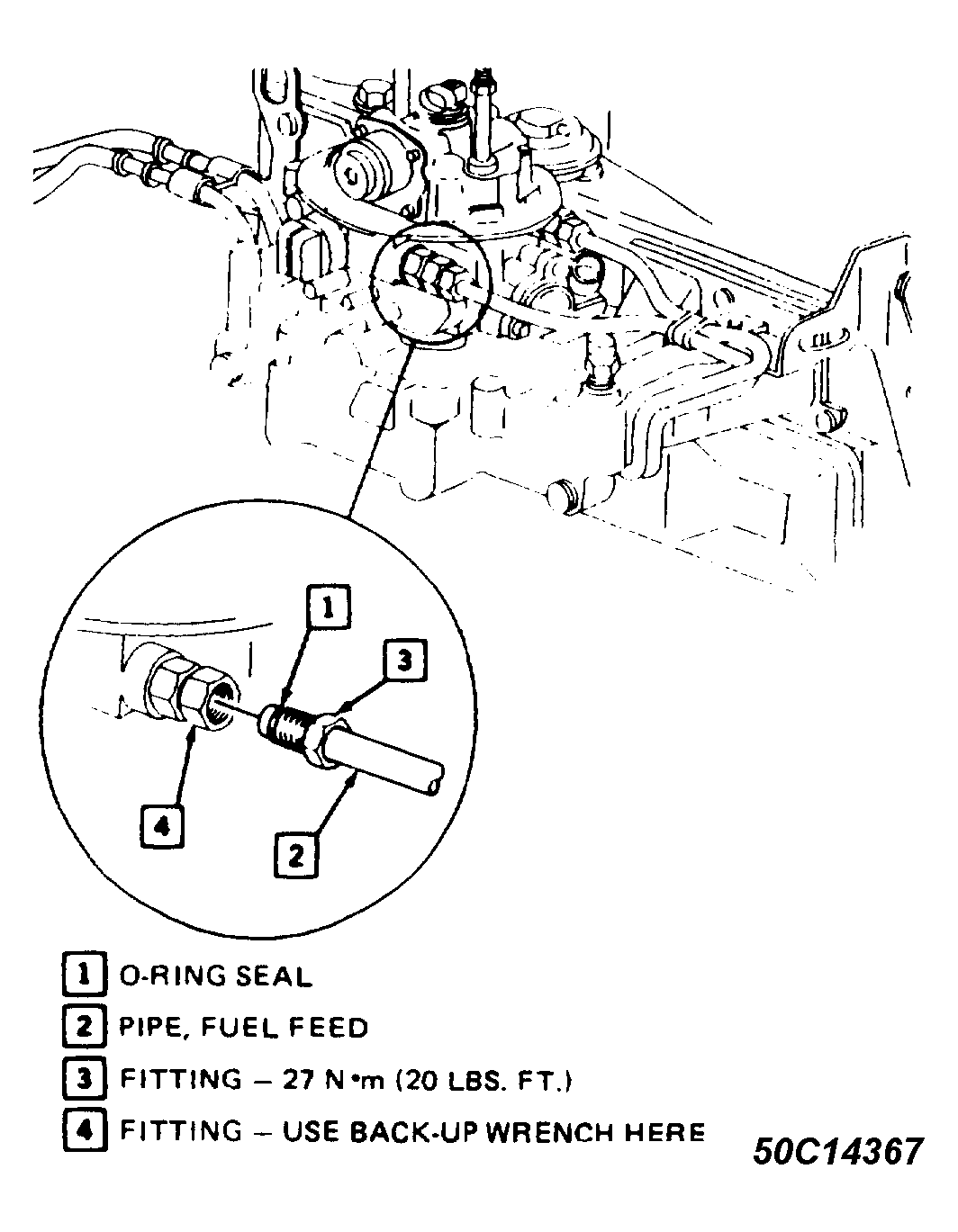

Fig 3: Fuel Feed Line Close-up (2.5L VIN U)
G50C14367Courtesy of GENERAL MOTORS CORP.

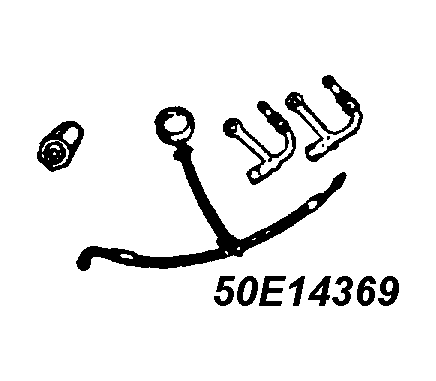

Fig 4: GM Fuel Pressure Gauge J-38336 or J-29658-100, J-29658-B
G50E14369Courtesy of GENERAL MOTORS CORP.
