ECM/Pcm Wiring Diagram(S)

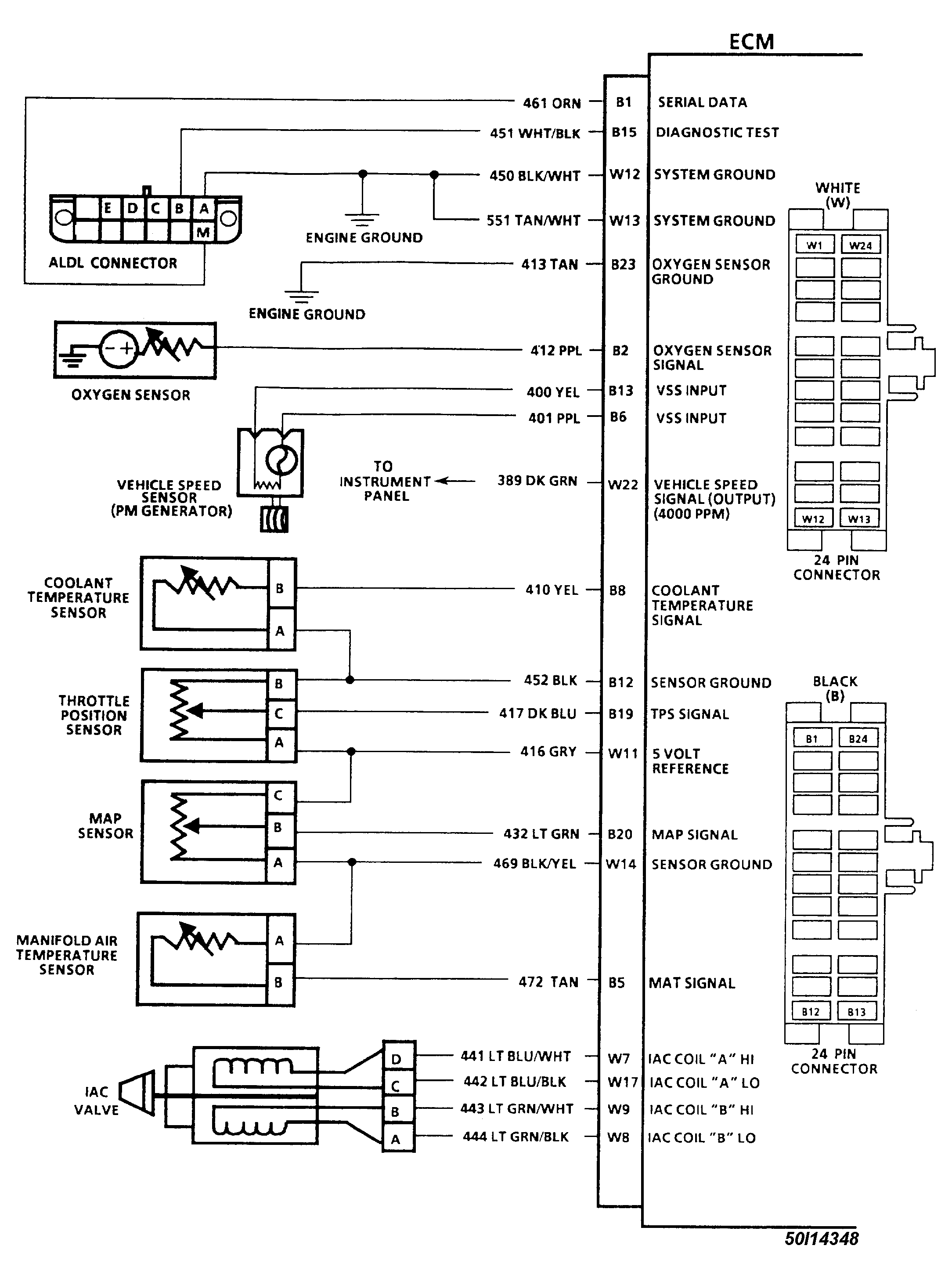

Fig 1: ECM Wiring Diagram 1/3 (2.5L VIN U)
G50I14348Courtesy of GENERAL MOTORS CORP.

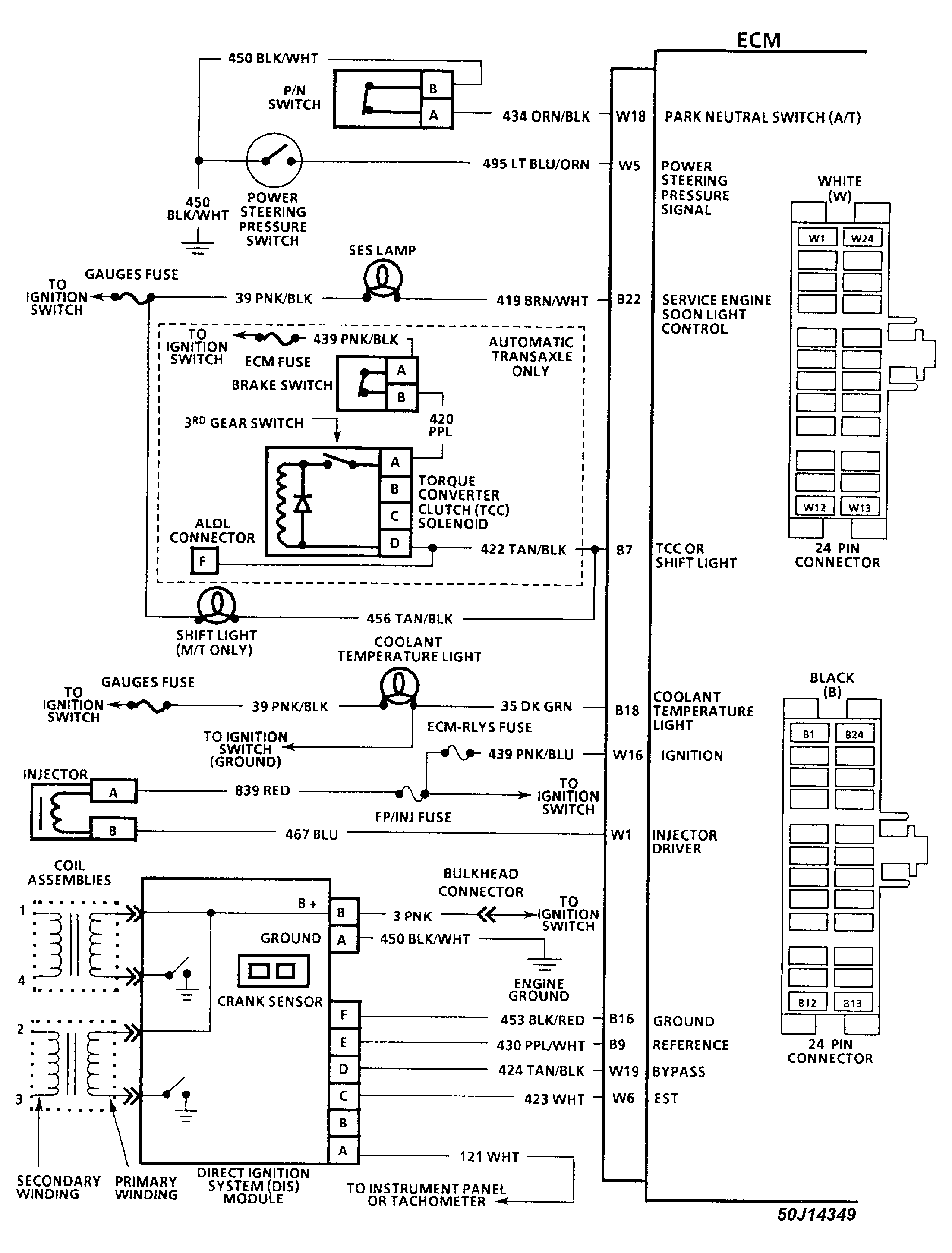

Fig 2: ECM Wiring Diagram 2/3 (2.5L VIN U)
G50J14349Courtesy of GENERAL MOTORS CORP.

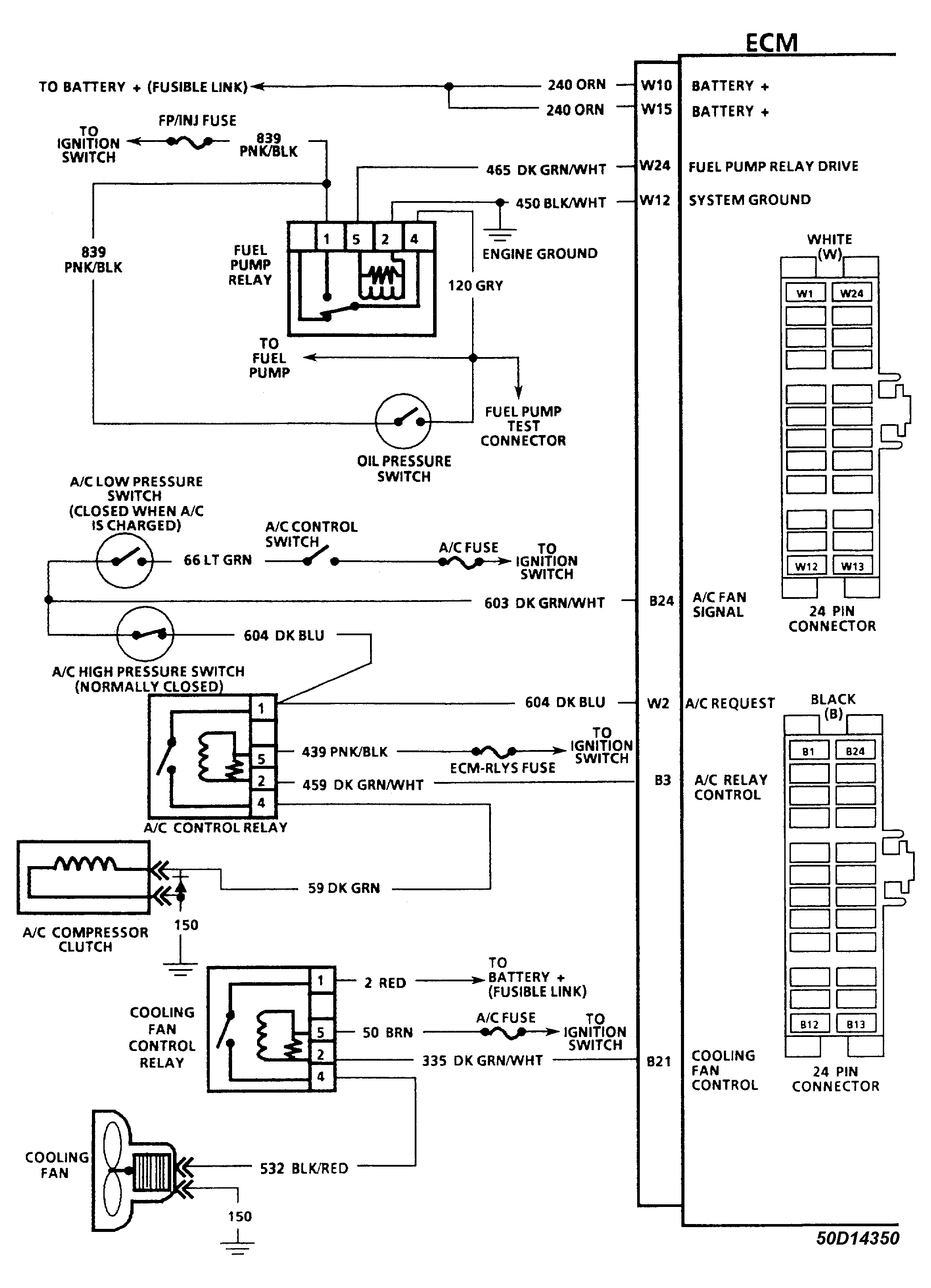

Fig 3: ECM Wiring Diagram 3/3 (2.5L VIN U)
G50D14350Courtesy of GENERAL MOTORS CORP.
