5.0L/5.7L Carburetor CEC Tests
>>
ECM Terminal Id
ECM Terminal Id

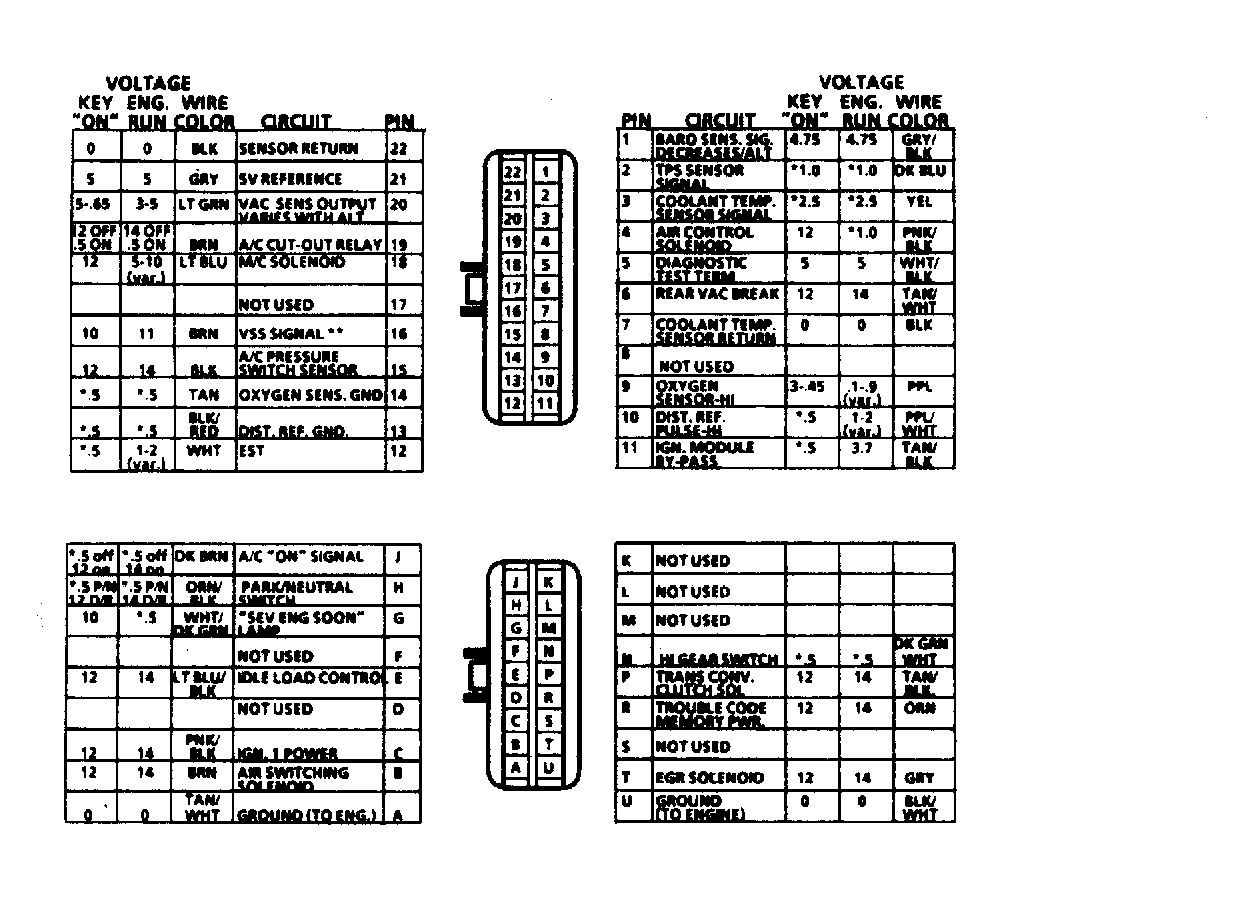

Fig 1: ECM Terminal I.D. 5.0L (VIN G & H) & 5.7L (VIN 6)

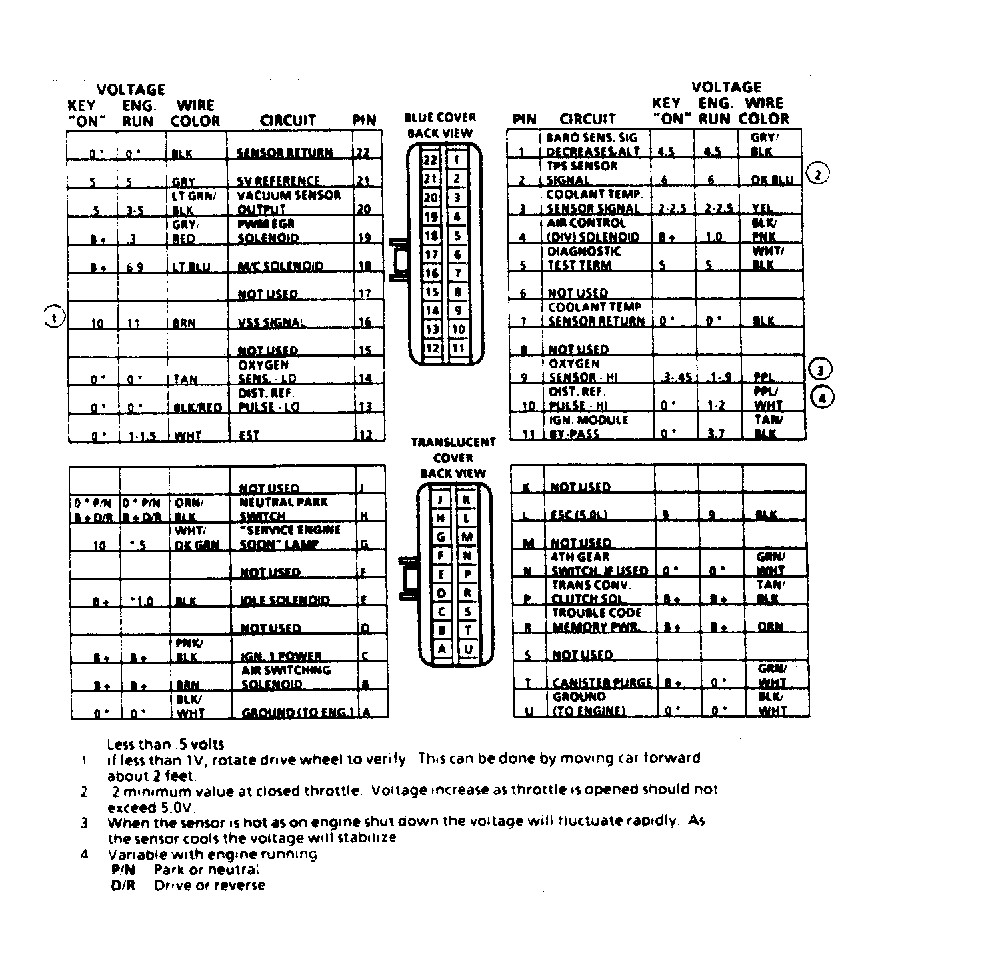

Fig 2: ECM Terminal Identification for 5.0L (VIN Y)
