Diagnostic Aids

Normal scan voltage ranges between .1-1.0 volt (100-999 mV), while in "closed loop". Code 13 will set in 20 seconds if voltage remains between .35-.55 volt. System will go into "open loop" in 15 seconds. See INTERMITTENTS in the CEC TESTING W/O CODES (TROUBLE SHOOTING) article in the ENGINE PERFORMANCE section.

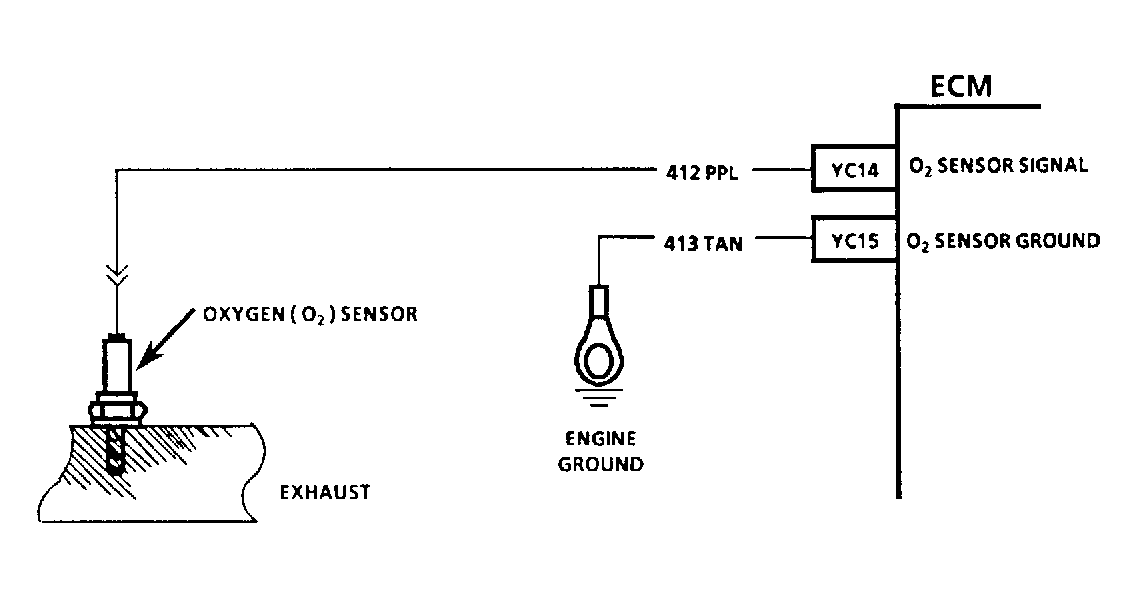

Fig 1: Code 13 Schematic - Open O2 Sensor Circuit
G51731

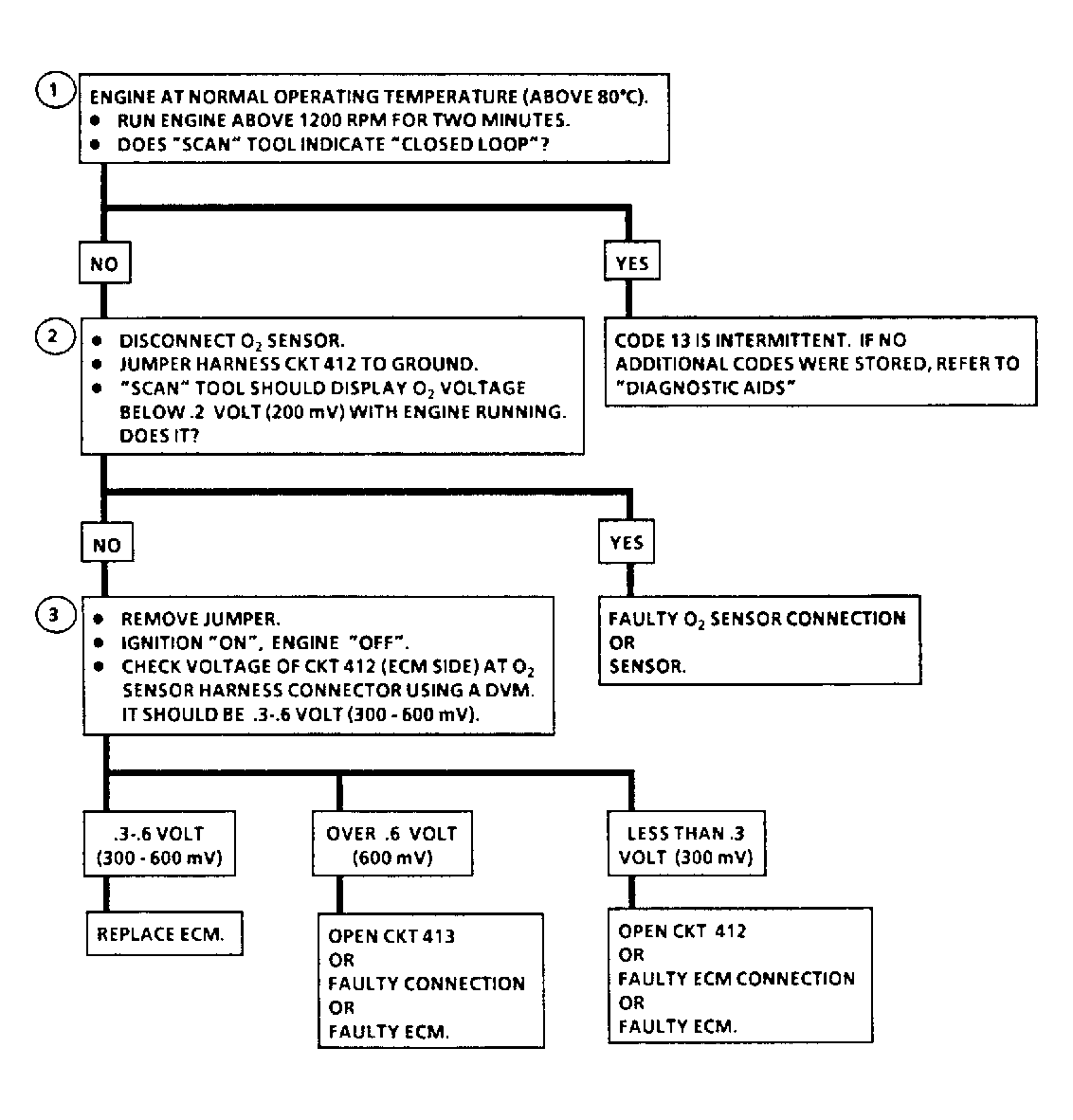

Fig 2: Code 13 Flow Chart - Open O2 Sensor Circuit
G57971

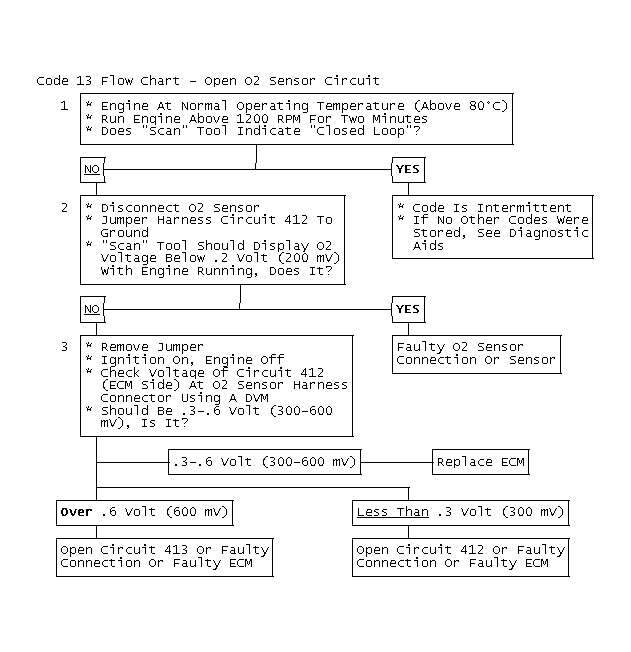

Fig 3: Code 13 Flow Chart - Open O2 Sensor Circuit
GB0046209
