Multiple Intermittent Codes (Riviera Only): Notes

Fig 1: Multiple Intermittent Codes (Riviera)

G6198

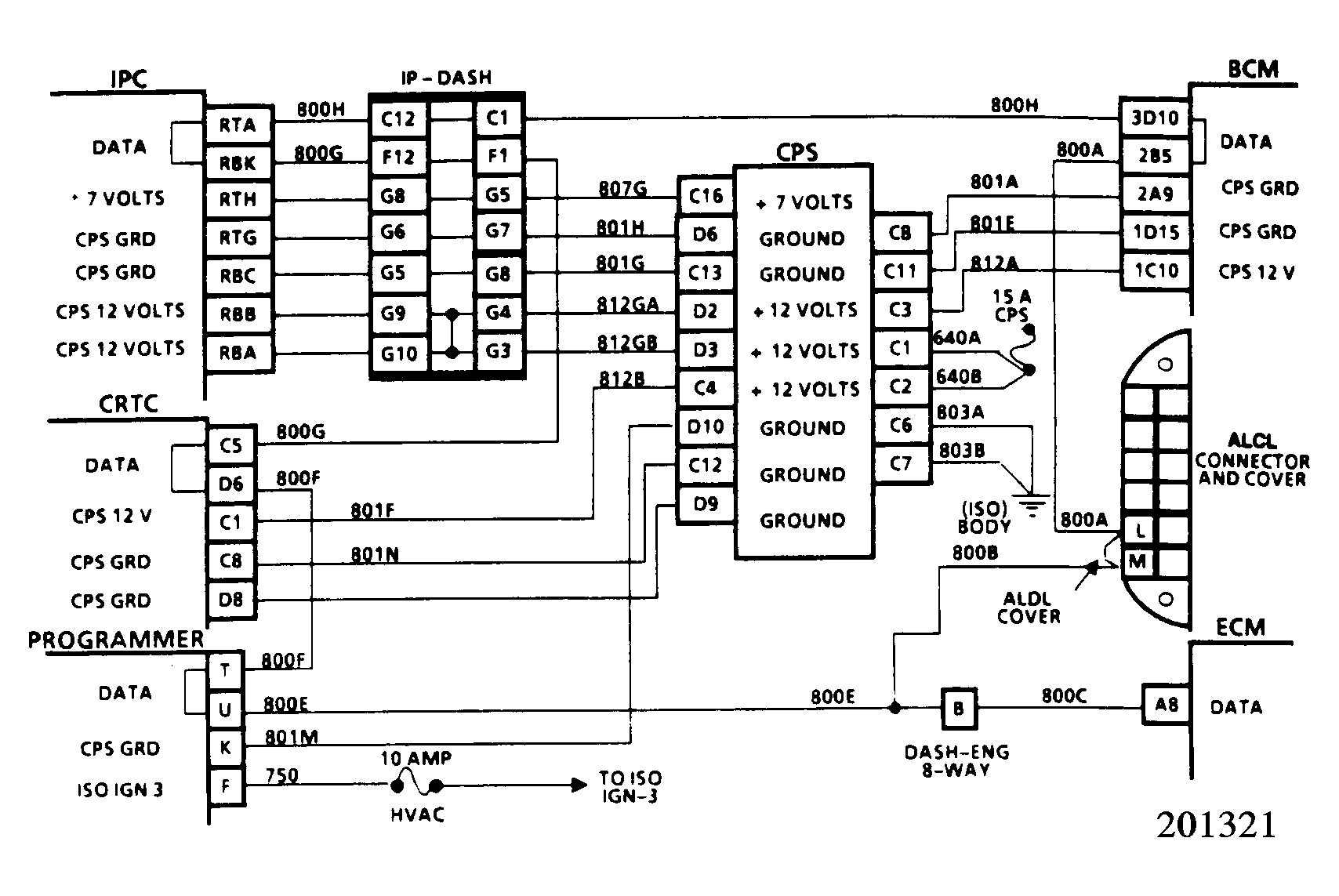

Fig 2: Multiple Intermittent Codes Schematic

G201321
