Chart 10, A/C System Performance Test (Riviera)

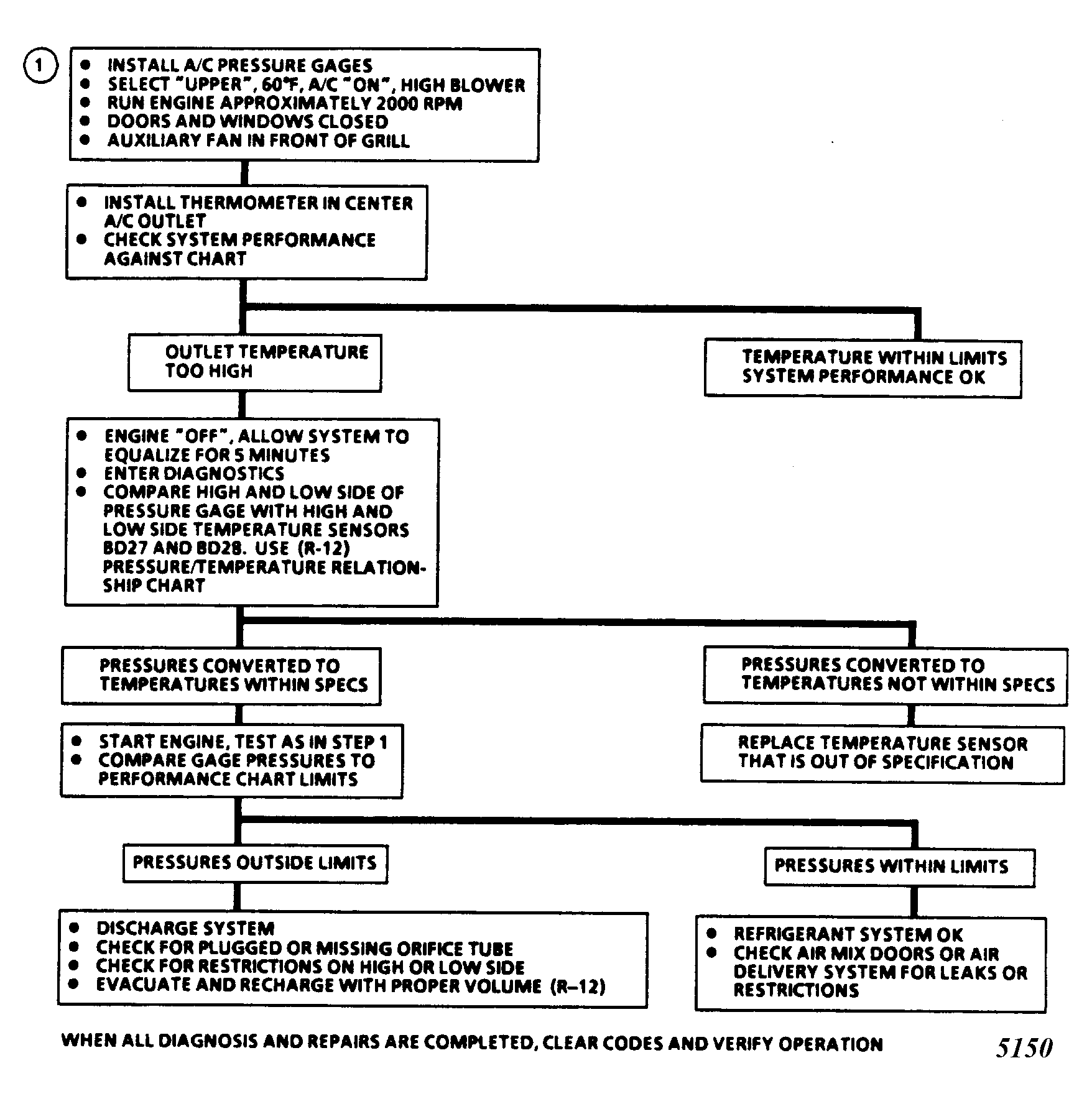

Fig 1: Chart 10, A/C System Performance Test

G5150

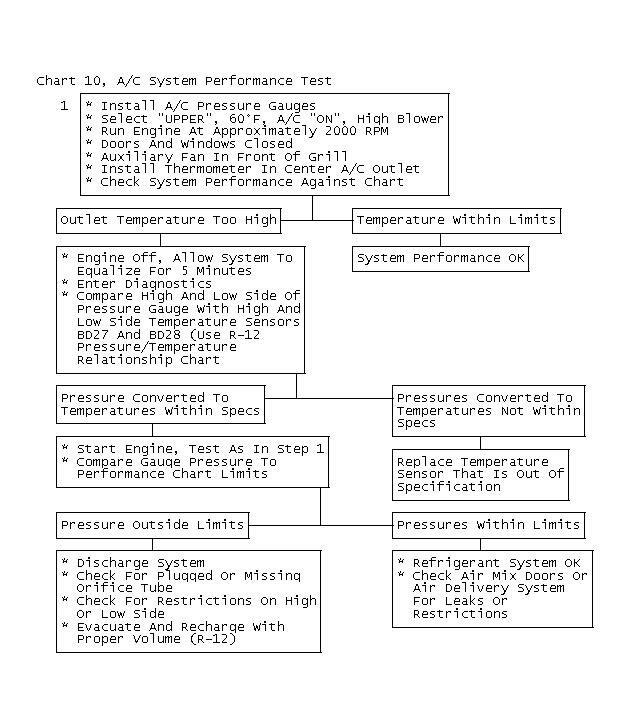

Fig 2: Chart 10, A/C System Performance Test

GB0048416
