Chart C7A - Non-ECM Controlled EGR Check

NOTE: There is no text or circuit diagram with this check.

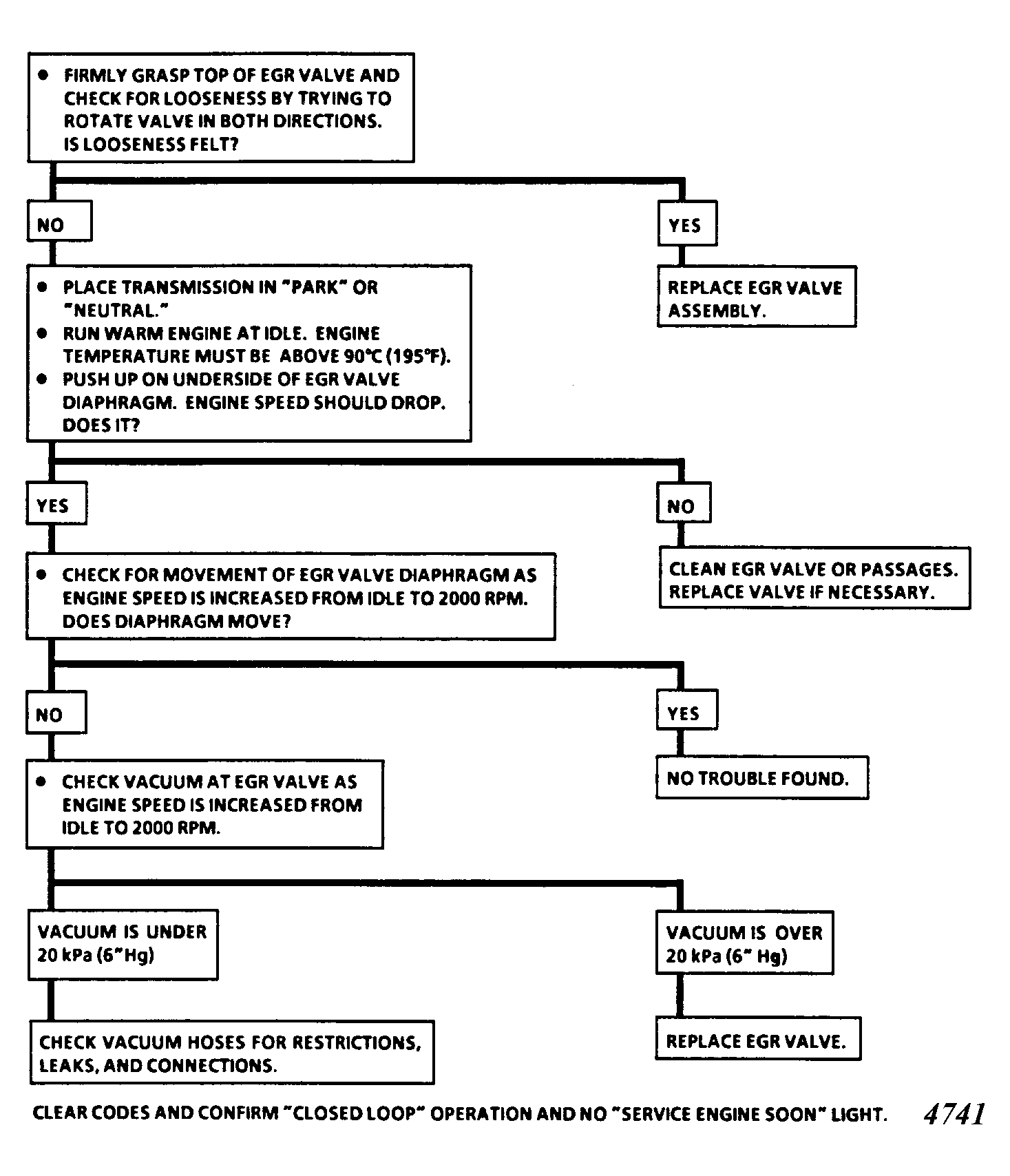

Fig 1: Chart C7A, Non-ECM Controlled EGR Valve Check

Fig 2: Chart C7A, Non-ECM Controlled EGR Valve Check
