Power Steering Pressure Switch (PSPS) Check

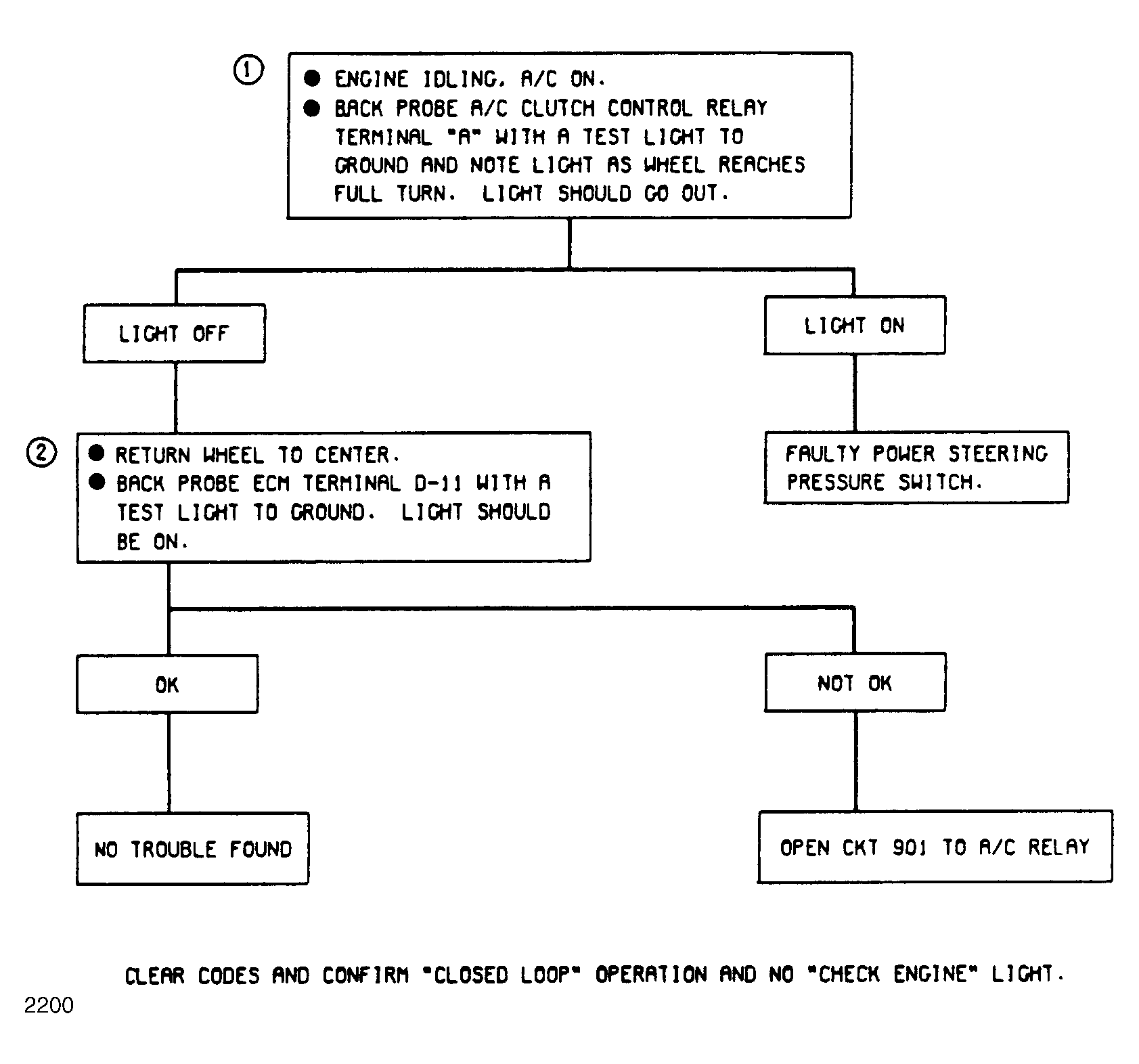

Fig 1: Chart C1E - Power Steering Pressure Switch

G2200
