TEMPMATIC Programmer Diagnosis Chart: Notes

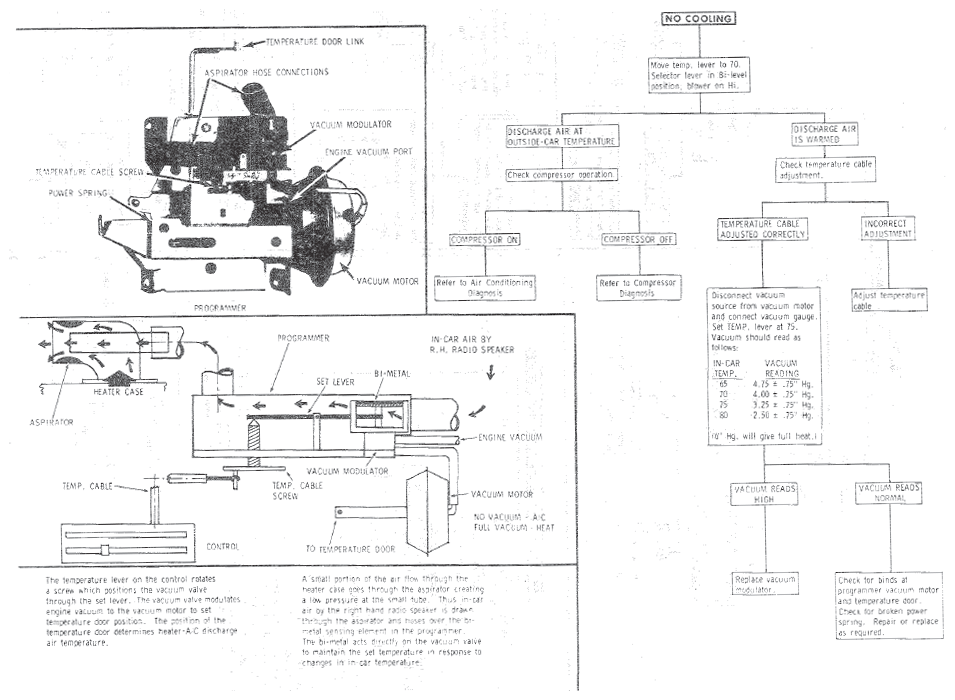

Fig 1: Tempmatic Programmer Diagnosis
G09314922Courtesy of GENERAL MOTORS COMPANY

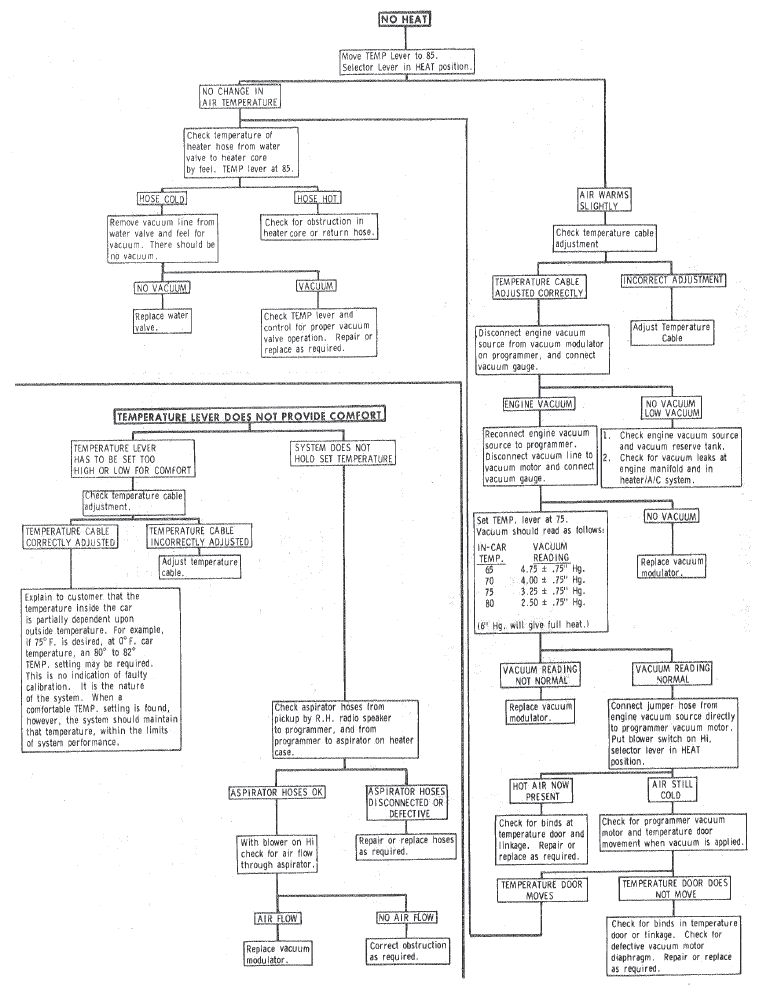

Fig 2: Tempmatic Programmer Diagnosis (Contd.)
G09314923Courtesy of GENERAL MOTORS COMPANY
