Visual Check

If car is being serviced for high outlet temperatures on the road, but appears to operate normally in shop, make the following quick check to determine which unit is at fault.

  1. Check temperature door to make sure it seals in the cool position. If not sealing, refer to Fig 6 in this article.
  2. Check aspirator hose and hose to grille and ducts for proper connections. Check vacuum hoses for correct routing and connection.: See Fig 1 illustrations.
  3. Check sealing between evaporator housing and cowl. Check suction line (should be cold or frosty). Check sight glass for "clear" condition. Check compressor clutch to make sure that it engages. Check compressor belt for proper adjustment.
    NOTE: For other diagnosis procedures, see appropriate Fig 1 in this article.

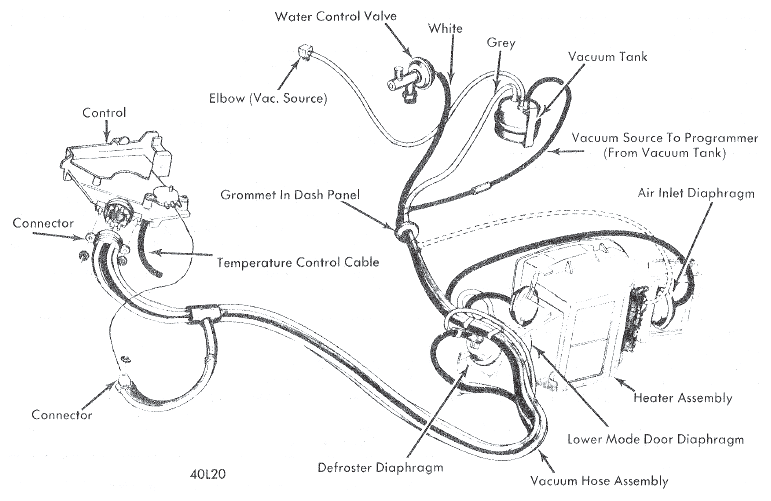

Fig 1: Vacuum Circuit
G09312750Courtesy of GENERAL MOTORS COMPANY

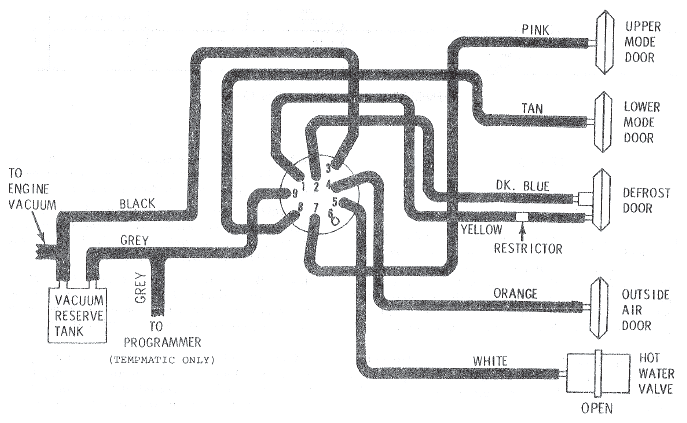

Fig 2: Vacuum Hose Schematic
G09312751Courtesy of GENERAL MOTORS COMPANY

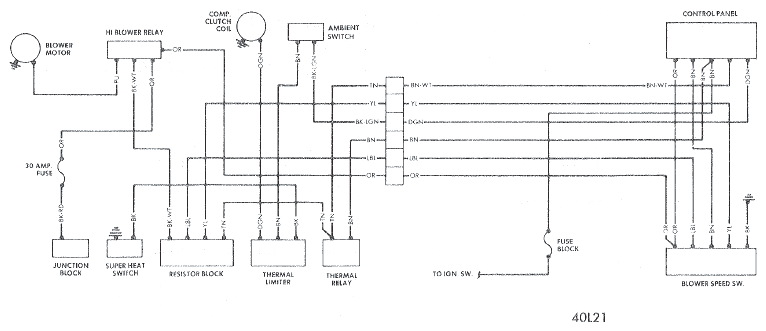

Fig 3: Oldsmobile Tempmatic Wiring Diagram
G09312752Courtesy of GENERAL MOTORS COMPANY
DIAGNOSIS OF PERFORMANCE TEST RESULTS

CONDITION AND CAUSE CORRECTION
EVAPORATOR PRESSURE TOO HIGH
A. Loose compressor drive belt. A. Adjust as outlined.
B. Defective clutch or coil. B. Check or replace as necessary.
C. Expansion valve capillary tube not tight to evaporator suction line. C. Check clamp for tightness.
D. Restriction in suction line. D. Remove, inspect and clean or replace.
E. Possible defective suction throttling valve. E. Refer to diagnosis chart in Section 1A.
F. Possible defective expansion valve. F. Refer to diagnosis chart in Section 1A.
HIGH PRESSURE SIDE OF SYSTEM TOO HIGH
A. Engine overheated. A. Check engine cooling system.
B. Restricted air flow through condenser. B. Remove foreign material from engine radiator and condenser.
C. Air in system or overcharge of refrigerant. C. Momentarily discharge system on discharge side with engine engine not running; then, operate system and recheck pressure. Repeat as necessary. Check sight glass with system under load.
D. Too much oil in compressor. D. Drain oil and add correct amount.
E. Restriction in condenser, dehydrator-receiver assembly, or any discharge or liquid line. E. Remove parts, inspect for restricted passage, and clean or replace.
NOZZLE DISCHARGE AIR TOO WARM (With Other Readings OK)
A. Low refrigerant charge. A. Check and add as necessary.
B. Air hoses not properly connected. B. Inspect air hoses and manifolds.
C. Defective or mispositioned evaporator drain hose. C. Replace or align as necessary.
D. Temperature Control Cable misadjusted. D. Adjust.
E. Poor Seal-Evaporator to cowl. E. Correct sealing.
CLUTCH SLIPPAGE
A. Head pressure too high. A. Discharge system until bubbles appear in sight glass and then 1 1/2 pounds of refrigerant.
B. Pulley wobbles. B. Check and replace, if necessary, the pulley bearing. If pulley has been worn by bearing, replace pulley.
VELOCITY OF AIR AT DISCHARGE NOZZLES TOO LOW
A. Restricted air hoses. A. Inspect and replace if necessary.
B. Defective blower motor. B. Check and replace if necessary.
C. Defective switches. C. Check and replace if necessary.
D. Poor wiring connection (Low voltage at blower). D. Correct wiling.
E. Restricted evaporator core in evaporator assembly. E. Wash evaporator core. Restricted evaporator core caused by freezing.
EVAPORATOR PRESSURE TOO LOW
A. Insufficient Refrigerant charge. A. Add refrigerant.
B. Restricted air flow through evaporator. B. Check air flow.
C. Possible defective suction throttling valve. C. Refer to diagnosis chart in Section 1A.
D. Possible defective expansion valve. D. Refer to diagnosis chart in Section 1A.
WATER BLOWING OUT AIR DISCHARGE NOZZLE
A. Plugged or kinked evaporator drain hose. A. Clean or align as necessary.
INOPERATIVE CONTROLS
A. Inadequate vacuum. A. Check vacuum. All controls should move with 10" of vacuum. Check for pinched or leaking hoses.
B. Temperature cable improperly adjusted. B. Adjust cable.

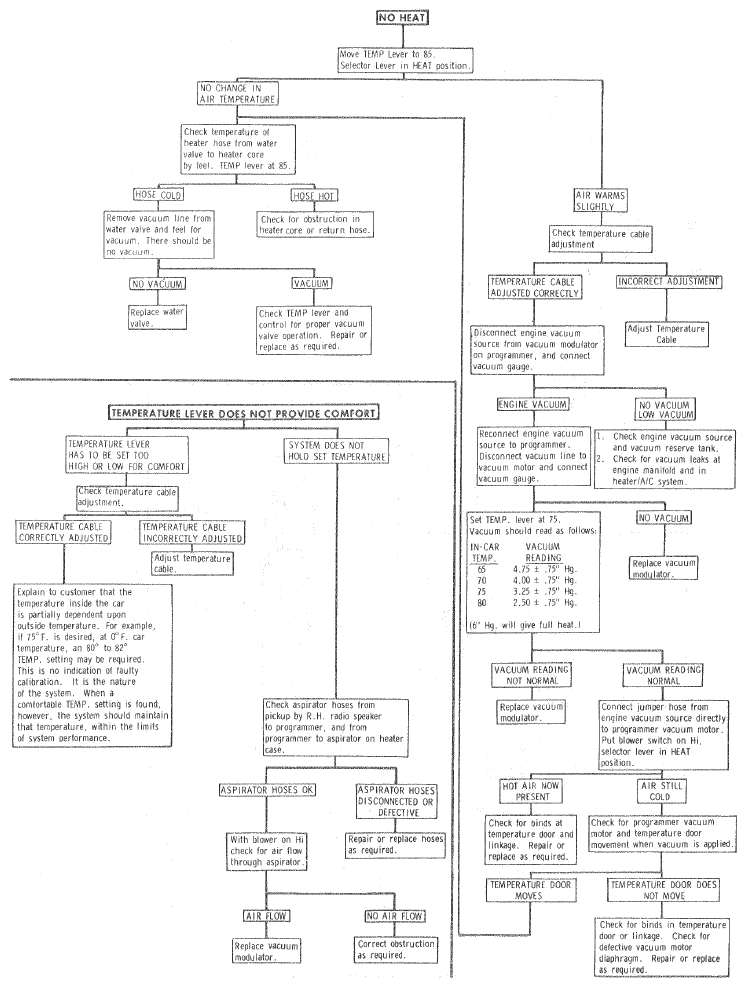

Fig 4: Tempmatic Programmer Diagnosis Chart
G09312753Courtesy of GENERAL MOTORS COMPANY

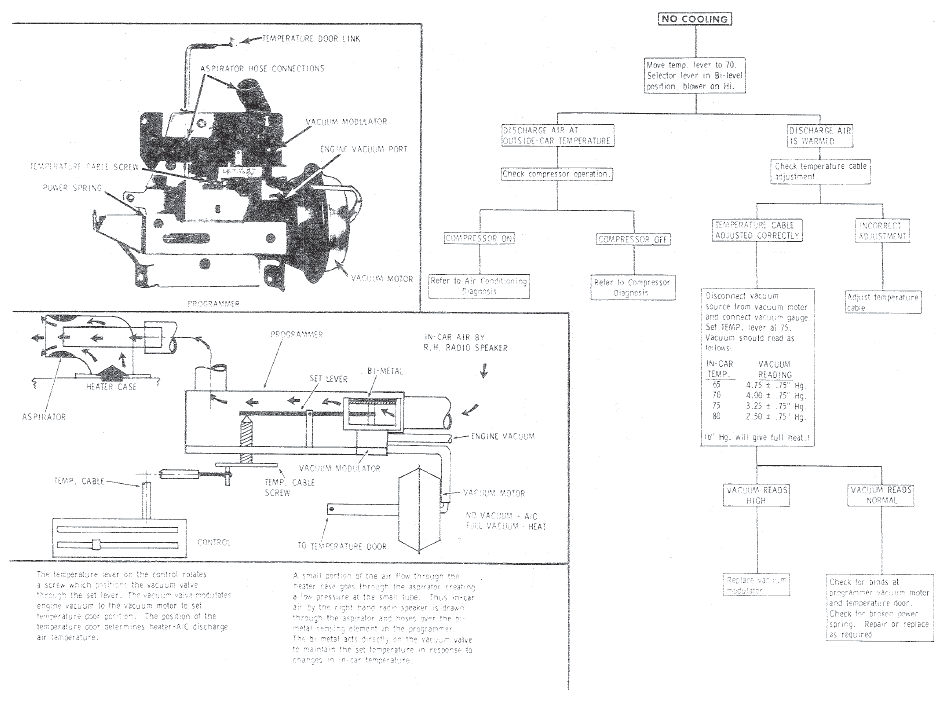

Fig 5: Tempmatic Programmer Diagnosis Chart
G09312754Courtesy of GENERAL MOTORS COMPANY

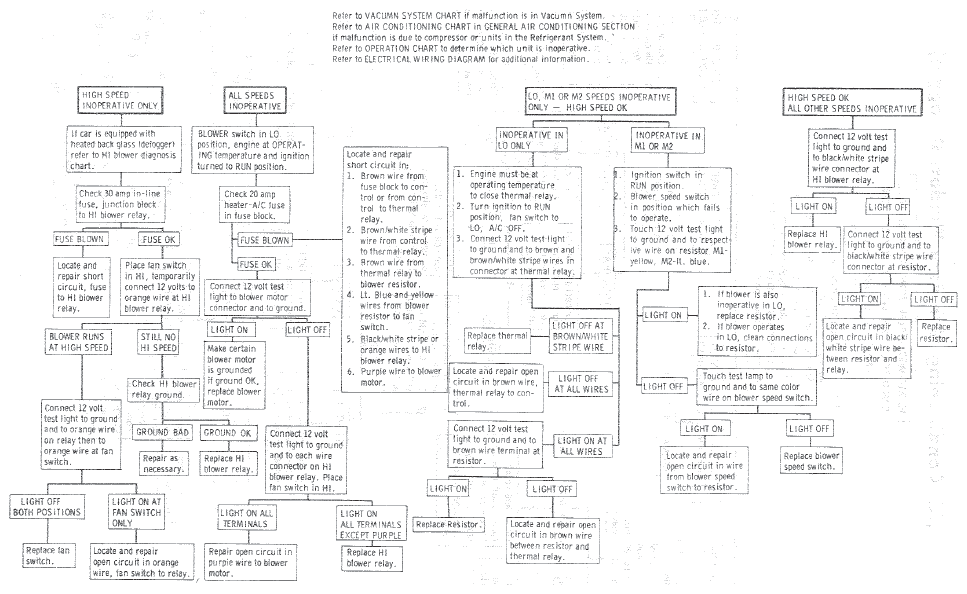

Fig 6: Blower Diagnosis Chart
G09312755Courtesy of GENERAL MOTORS COMPANY

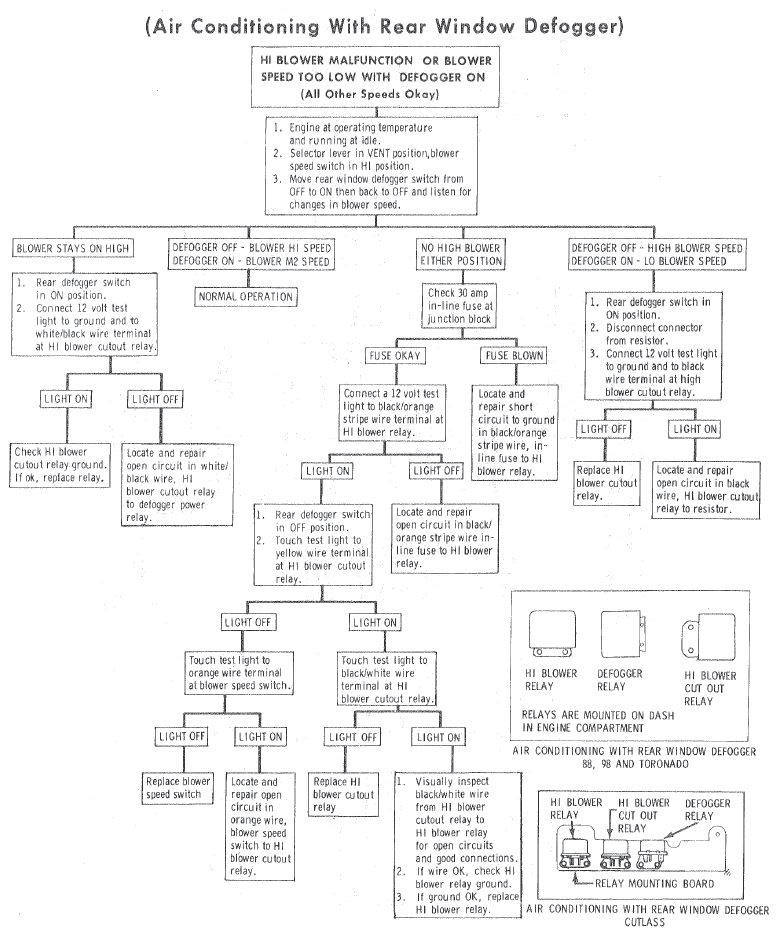

Fig 7: HI Blower Diagnosis Chart
G09312756Courtesy of GENERAL MOTORS COMPANY
PERFORMANCE CHART WITH E.E.V.I.R. SYSTEM

IN FRONT OF CONDENSER EVAPORATOR PRESSURE AT E.E.V.I.R. GAUGE CONNECTION ENGINE RPM DISCHARGE AIR TEMP. R.H. NOZZLE PRESSURE HIGH (DISCHARGE)
RELATIVE HUMIDITY AIR TEMP. °F ± 1 PSI ± 2°F. ± 20 PSI
20 70
80
90
100
29.5
29.5
30.0
31.0
2000 40
44
48
57
150
190
245
305
30 70
80
90
100
29.5
30.0
31.0
32.0
2000 42
47
51
61
150
205
265
325
40 70
80
90
100
29.5
30.0
32.0
39.0
2000 45
49
55
65
165
215
280
345
50 70
80
90
100
30.0
32.0
34.0
40.0
2000 47
53
59
69
180
235
295
350
60 70
80
90
100
30.0
33.0
36.0
43.0
2000 48
56
63
73
180
240
300
360
70 70
80
90
100
30.0
34.0
38.0
44.0
2000 50
58
65
75
185
245
305
365
80 70
80
90
30.0
34.0
39.0
2000 50
59
67
190
250
310
90 70
80
90
30.0
36.0
42.0
2000 50
62
71
200
265
330
* J-6076 Humidicator can be used to determine Humidity
