COMFORTRON Sensor Diagnosis

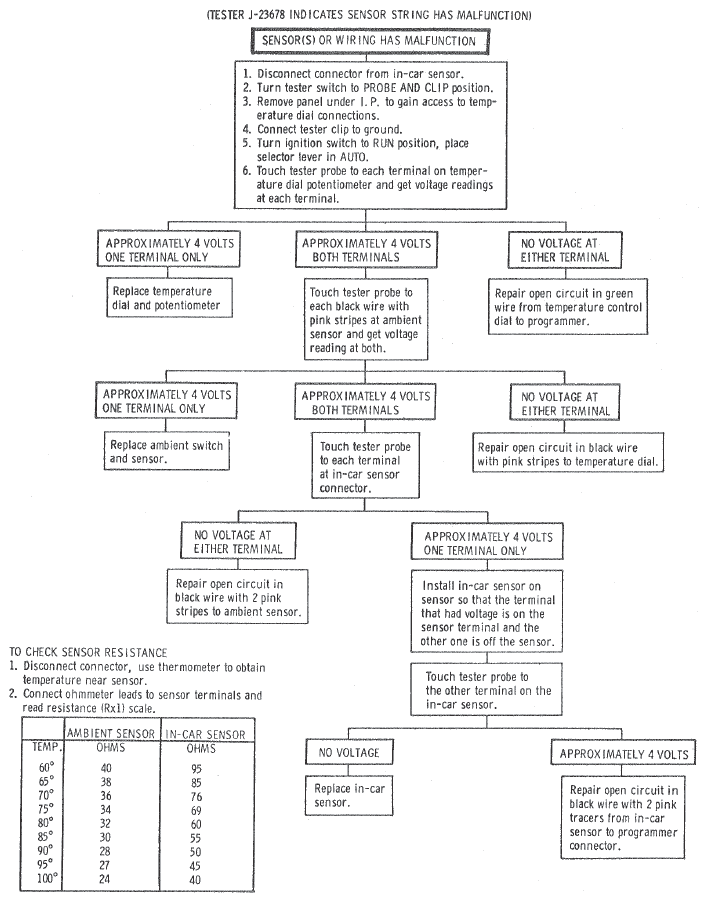

Fig 1: Comfortron Sensor Diagnosis Chart

G09311433

Courtesy of GENERAL MOTORS COMPANY
