COMFORTRON Control Circuit Board Diagnosis

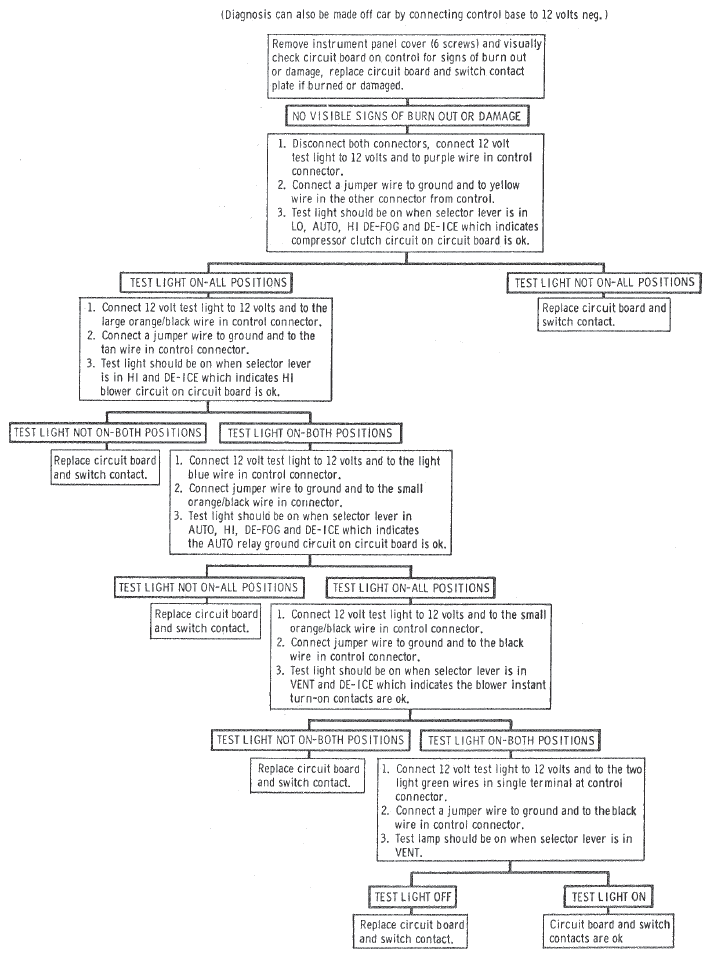

Fig 1: Comfortron Control Circuit Board Diagnosis Chart

G09311430

Courtesy of GENERAL MOTORS COMPANY
