Exploded View

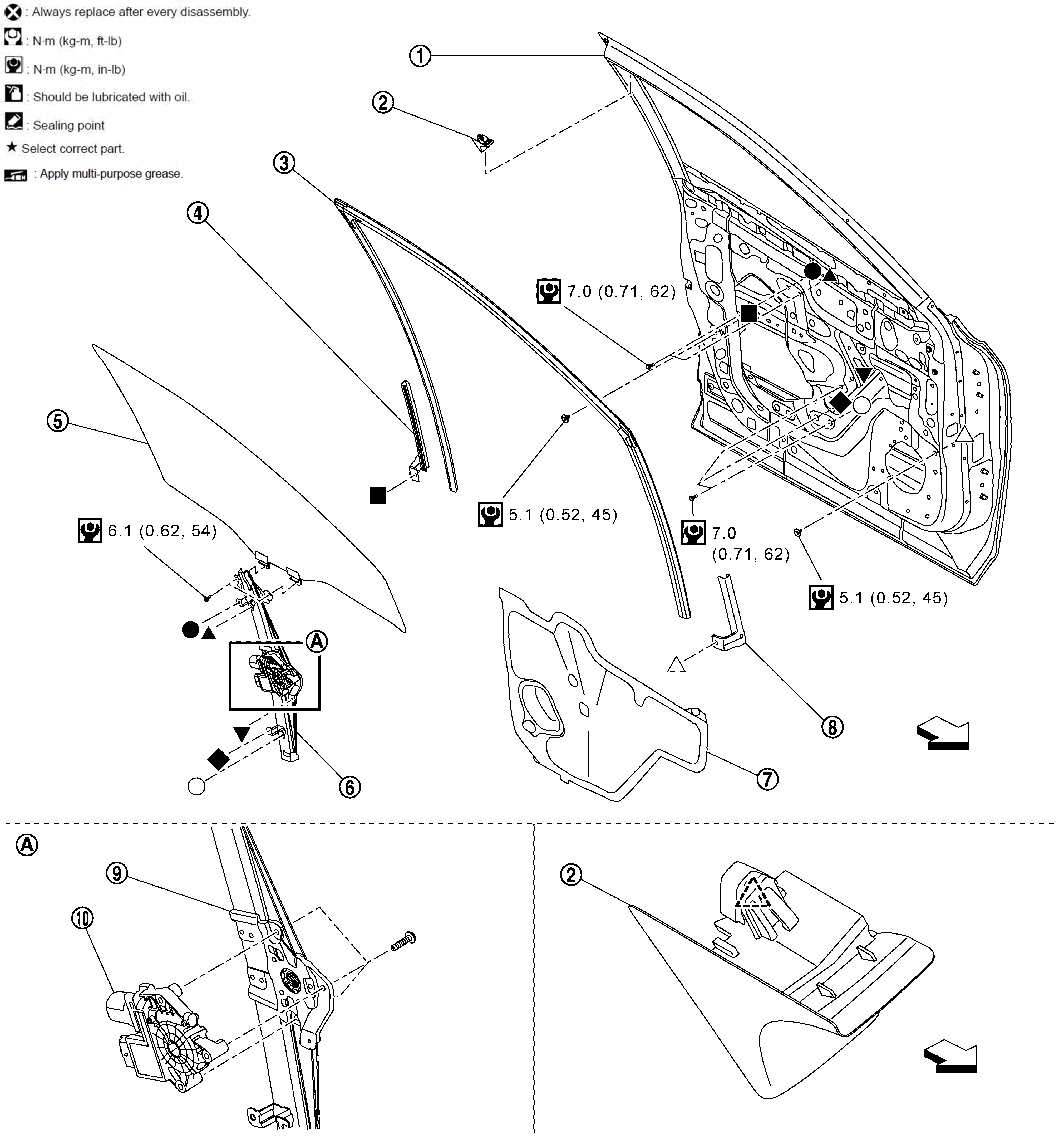

Fig 1: Front Door Glass With Torque Specifications
GNSDB131830Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Front door panel SYMBOL Front door corner cover SYMBOL Front door glass run
SYMBOL Front door glass run lower sash SYMBOL Front door glass SYMBOL Front door regulator assembly
SYMBOL Front door sealing screen SYMBOL Front door lower sash SYMBOL Front door regulator
SYMBOL Front door power window motor
SYMBOL : Pawl
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, in-lb)
SYMBOL , SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOL
